Group and Channel
Frequency
Sensitivity Level
AF Low Cut
Encryption
RF Output Power
AF Phase
AF Limit
Parameters Lock & Unlock Status
MUTE MODE
B
A
C
D
E
F
G
H
I
J
A
F
G
B
E
H
C
D
I
J
N O
ENCRYPTION
Y E S
AF LIMIT
INVERT
AF PHASE
485.000
MHz
FREQUENCY
0 dB
AF GAIN
LOW CUT
AF LOW-CUT
RF-LOW
RF POWER
UNLOCK
SET LOCK
0 1 0 2
GRP CH
MANUAL
MUTE MODE
Rechargeable Digital Wideband Bodypack Transmitter Rechargeable Digital Wideband Bodypack Transmitter

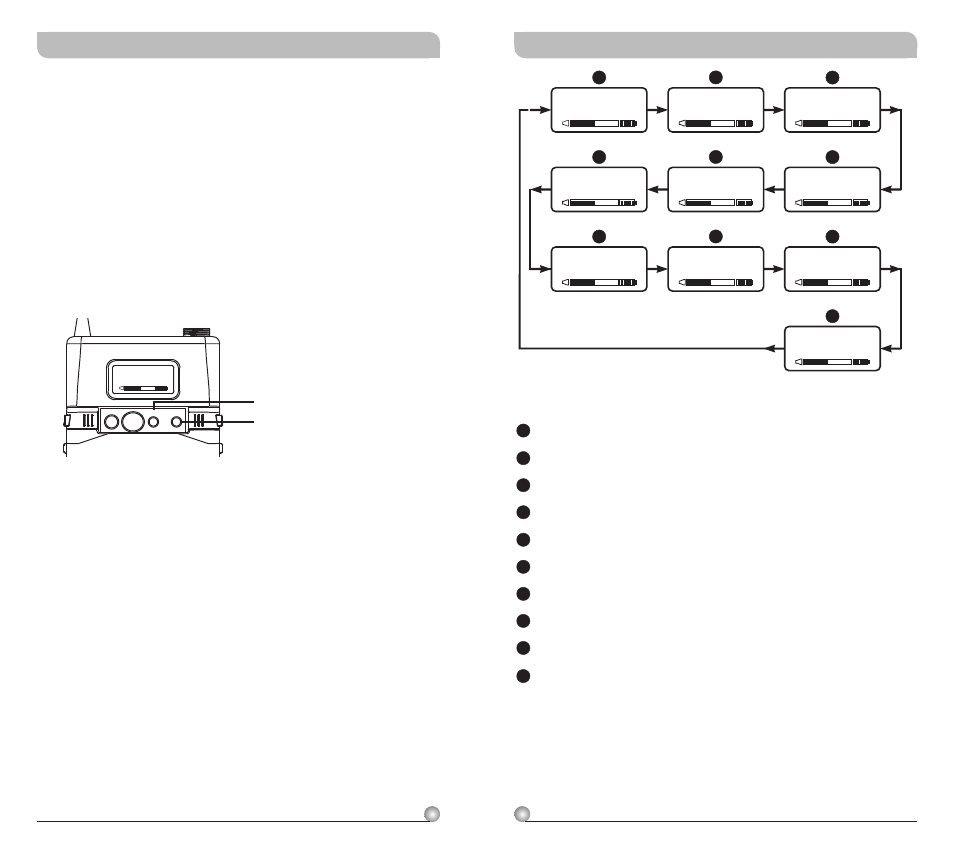

How to Setup Transmitter Parameters
! MODE Button:
Press “MODE” button to access one of the NINE
functions below.
! SET Button:
Press “SET” button and LCD wills start flashing.
During flashing, press SET button to change
parameters.
485.000 MHz
FREQUENCY
MODE
SET
ON MODE SET
