M U T E
AF MUTE
GRP CH
485.000
MHz
FREQUENCY
AF MUTE
N O
ENCRYPTION
Y E S
AF LIMIT
INVERT
AF PHASE
485.000
MHz
FREQUENCY
0 dB
AF GAIN
LOW CUT
AF LOW-CUT
(GROUP/CHANNEL) (AF GAIN) (FREQUENCY)
(AF LOW-CUT) (AF LIMIT)
(AF PHASE)
(ENCRYPTION)
AF MUTE
UNLOCK
SET LOCK
(SET LOCK)
(MUTE MODE)
AF MUTE
AF MUTE
AF MUTE
AF MUTE
AF MUTE
AF MUTE
AF MUTE
RF-LOW
RF POWER
(RF POWER)
AF MUTE

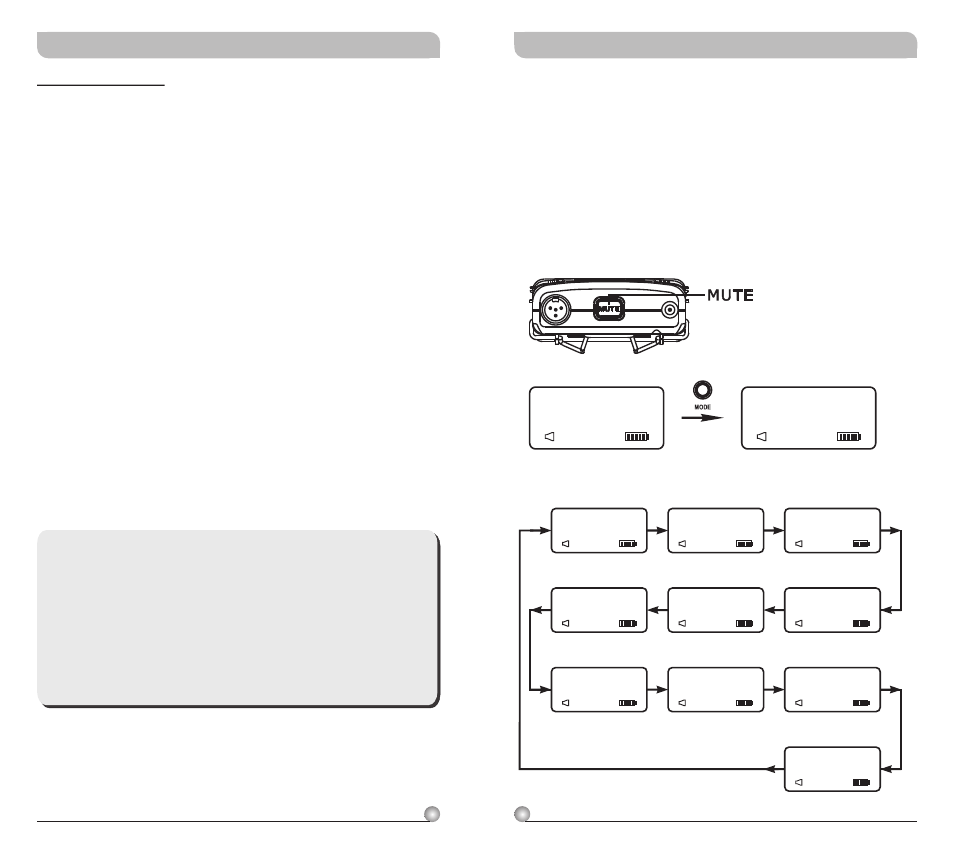

MUTE Control Set-Up
MUTE control enables audio to be muted or
un-muted temporarily.
Press MUTE button to mute audio temporarily.
Parameter values can be changed and ACT sync
activate during this MUTE mode.
Press MUTE button to un-mute.
!
!
AF MUTE
0 1 0 2
GRP CH
MANUAL
MUTE MODE
Rechargeable Digital Wideband Bodypack Transmitter Rechargeable Digital Wideband Bodypack Transmitter
ERR: Error Code
If the LCD displays “ERR” after turning on the
power, it indicates the operation is not correct. The
error codes are as follows:
ROM-ER → Transmitter does not have the initial
data so the microphone is completely
dead and cannot be programmed.
ERROR1 →Failure on RF circuitry, frequency
cannot be programmed.
NO----OR3 →Frequency to be programmed into
the transmitter exceeds the highest
frequency of the designated
frequency band of the transmitter.
NO----OR4 →Frequency to be programmed into
the transmitter exceeds the lowest
frequency of the designated
frequency band of the transmitter.
**Note:
NO----OR3 and NO----OR4 will not change the
transmitter's original frequency and the
transmitter will still operate normally with the
error message on display. To remove the error
message from the display panel, please switch
off the transmitter and switch it on again.
