40 Maintenance & Repair

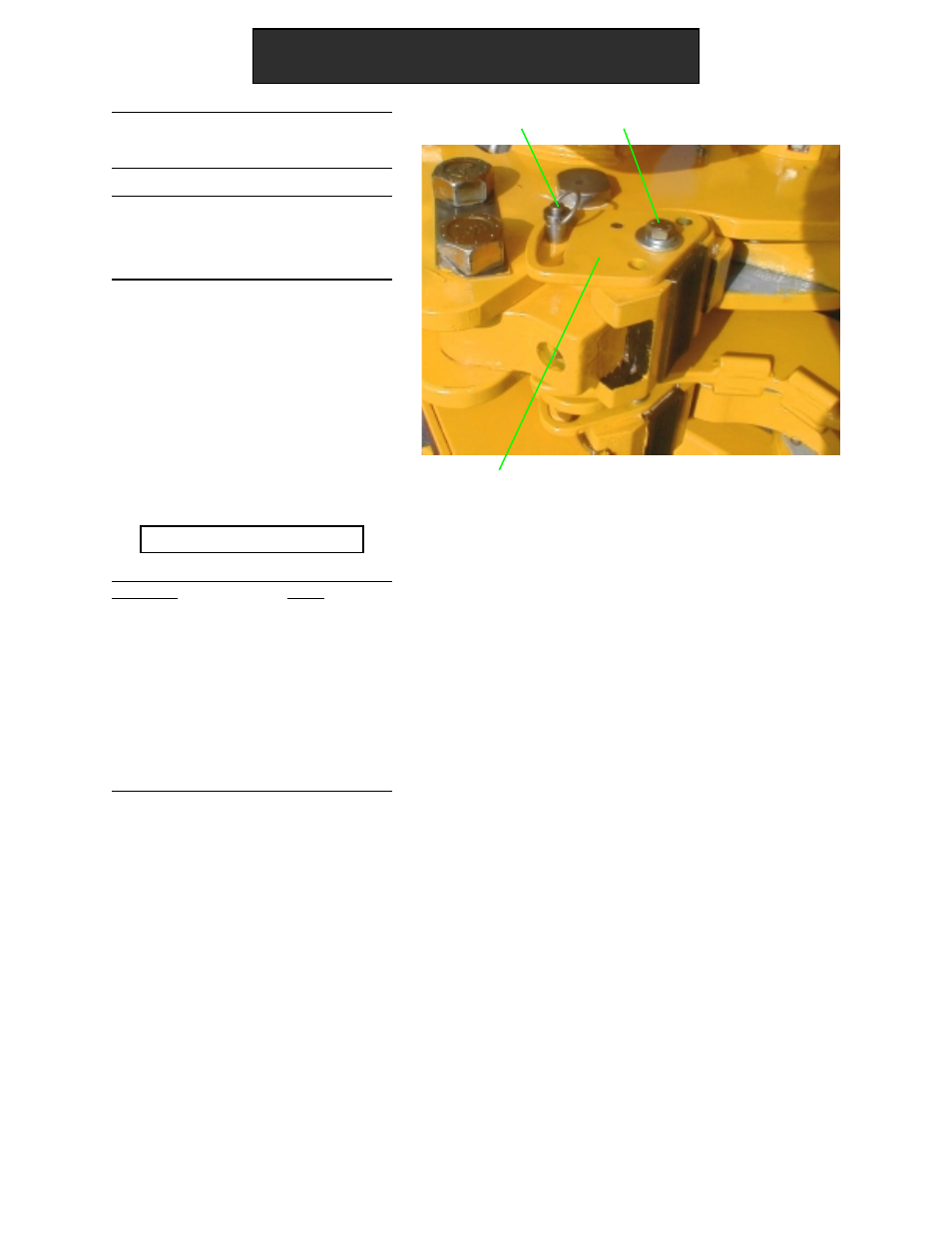

Changing the Heel Dies
8. Replace the Top Die Retainer
(DR).
9. Insert the Heel Die Pin (P).
10. Use the 3/4" wrench to replace
the Heel Die Roller Bolt (B) and
Lock Washers.
Part Numbers
Part Name Part #
Spirol Lock Washer 999-810703
Die Roller Bolt (B) 999- 806307
Die Roller (R) 061-20210
Die Roller Bushing (RB) 061- 20208A
Die (D) 061-20194
Die Holder (DH) 061- 20192-1A
Heel Die Pin (P) 061-92384A092
P B
DR
