SD Rack
1-8
1.6 Using the SD Rack Menu System

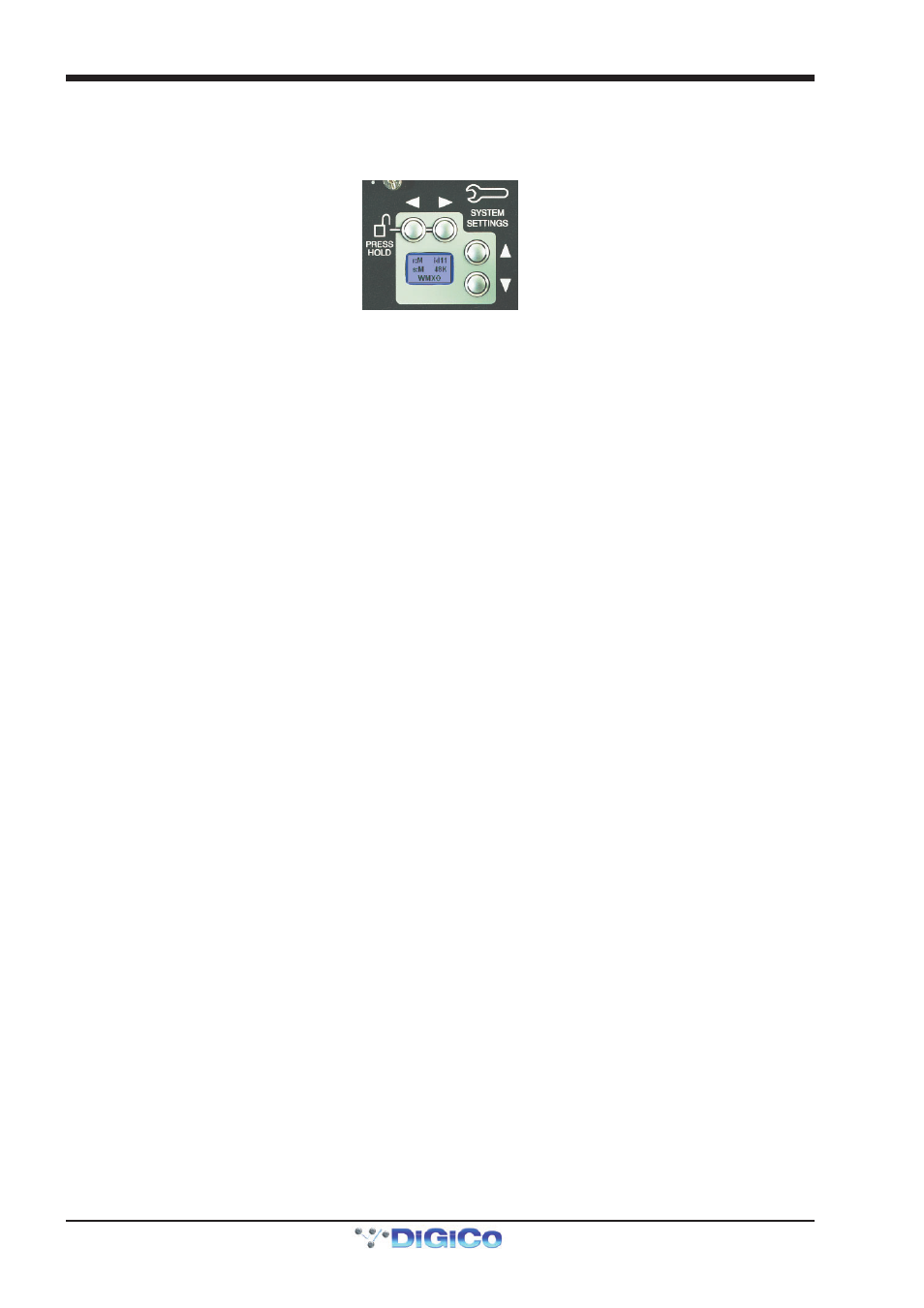

The LCD Menu System on the rack MADIPod is normally in a locked state and cannot be accessed.
The main display will be visible and if the rack is not connected to an SD console the background colour will be light blue.
If an SD console is connected and the rack is correctly receiving control data from it, the display will flash green.
Pressing and holding the 2 buttons marked with left and right arrows for 2 seconds unlocks the Menu System. During the 2 seconds the
display will be red and say "Locked" and when unlocked, the display will turn green and say "Unlocked".
The Up/Down buttons scroll through the pages in the Menu System and the Left/Right buttons are used to select each item within pages
that have multiple items. When an item's value can be changed the Up/Down arrows are used for this.
If the rack is left in an idle state for 2 minutes, it will relock itself.
Please refer to the following diagram for menu navigation details.
