EX-007 User Manual
1.1 Overview ..................................................................................
These instructions must be read in conjunction with the current SD-7 User Manual and Mach2 Upgrade Appendix.
The EX-007 provides worksurface expansion for the DiGiCo SD-7 console.
It consists of two, twelve fader channel sections that have all the same functionality as the left and right channel sections of the SD-7
worksurface. The EX-007 is a networked device that provides control of user defined channels on the SD-7 itself - it does not have any
audio connections or DSP built in.

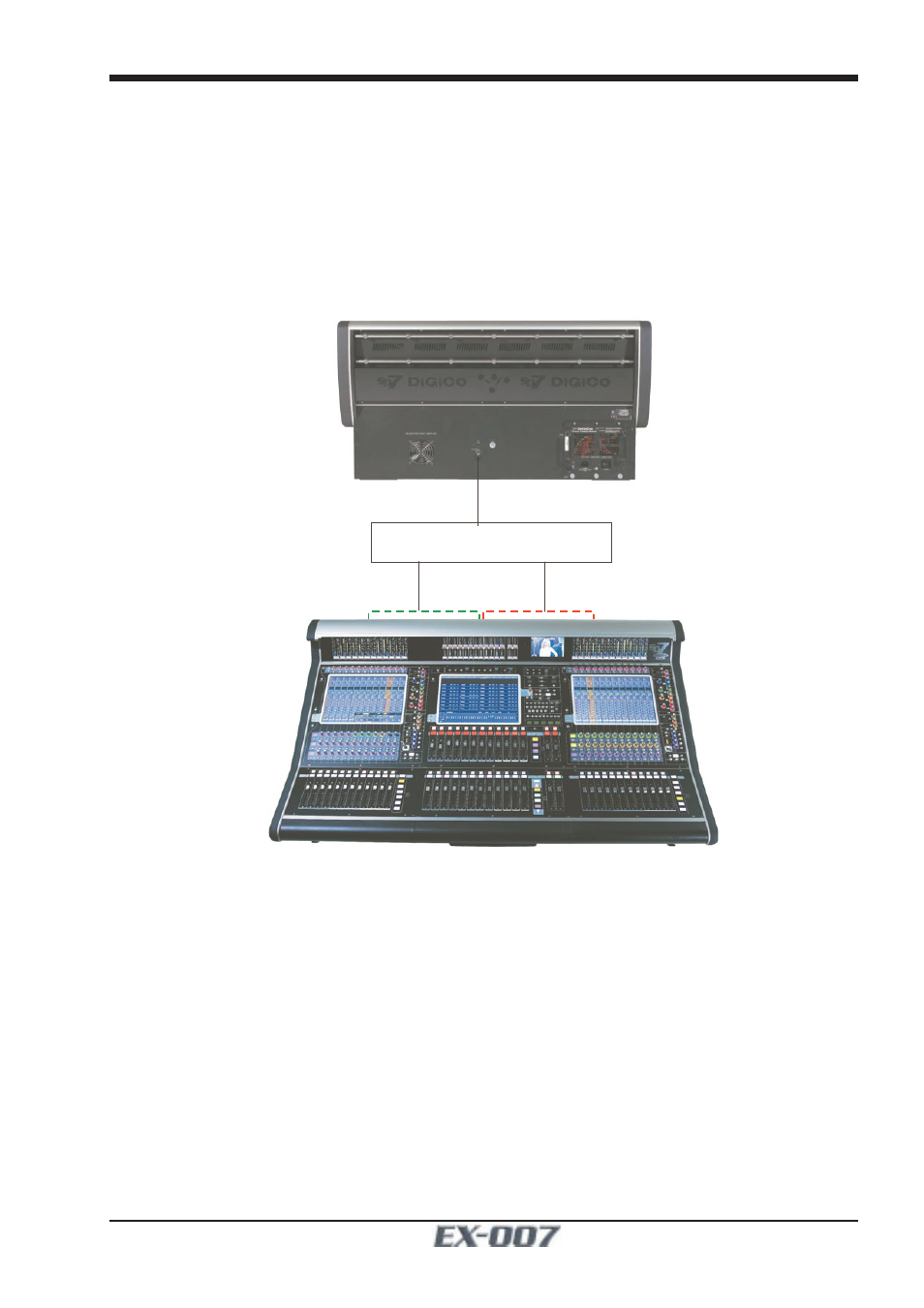

1.2 Connections ............................................................................
Connecting the EX-007 requires a Network switch and standard (not crossover) Cat5 cables for each of the devices on the network. A
system can consist of one SD-7 with two engines and either one or two expanders. Please ensure that you use a good quality network
switch (Minimum 10/100Mbs) to ensure correct operation.
All connections should be made before switching on the console and racks.
ENGINE A ENGINE B
Network Switch
EXPANDER CAT 5 CABLE
SD-7 ENGINE A CAT 5 CABLE SD-7 ENGINE B CAT 5 CABLE
