SD9 - Getting Started
1-2
1.3 Before You Start
There are certain general operating principles and terms that should be understood before continuing to use this manual.
Please read this chapter carefully before proceeding.

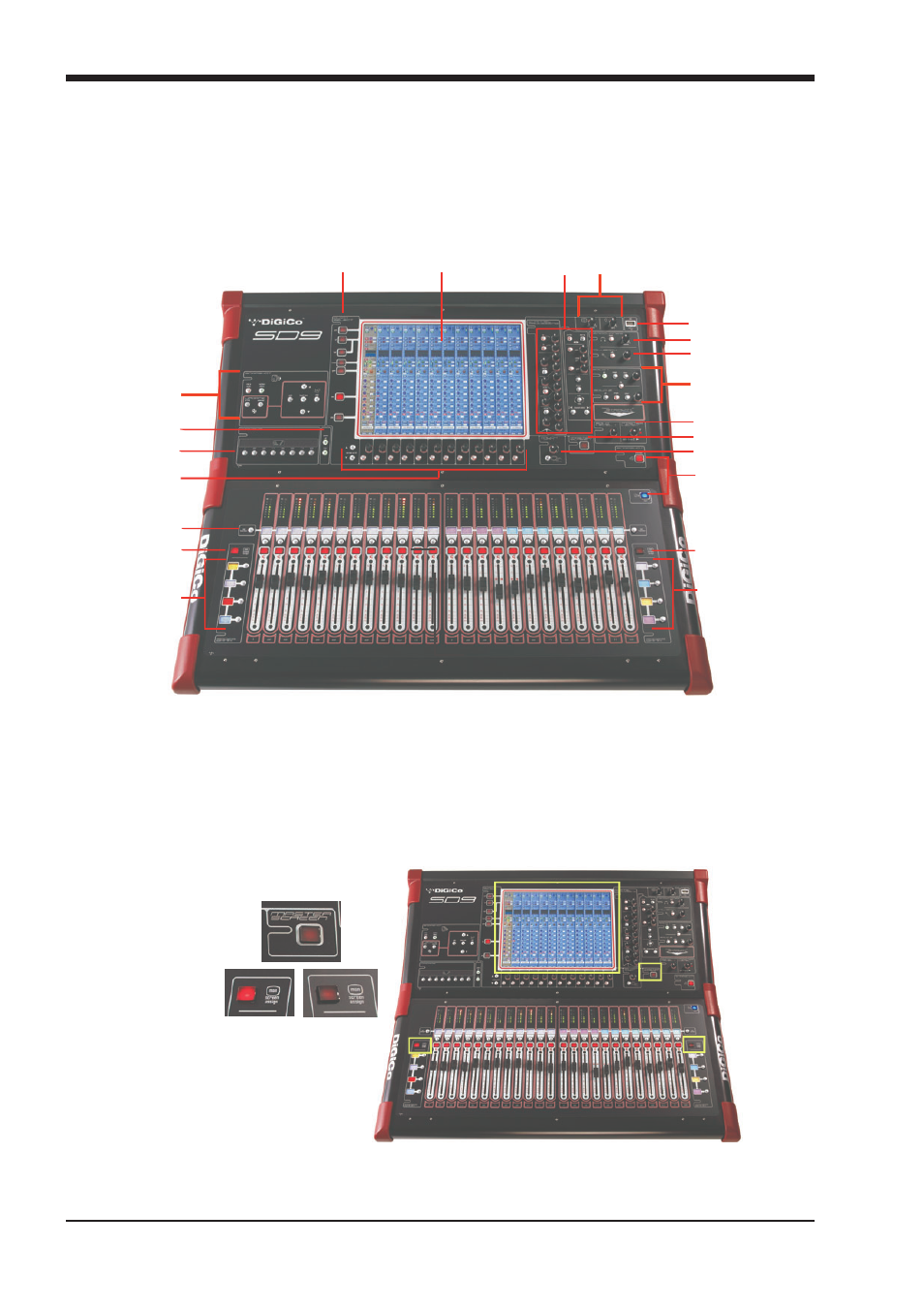

1.3.1 Worksurface Layout ..............................................................
Mute and Channel Select Buttons
2nd Function Button
Option/All Button
USB Port
Headphone Control
Talkback Control
Solo Buss Controls
Light Controls
Assignable Rotaries
& Screen Scroll
Channel Processing:
High and Low Pass Filters
4 Band Dynamic Parametric EQ
Dynamics Thresholds & On / Off
Channel Insert On/Off
Direct Out On/Off
Touchscreen Quick Select
Right Screen Assign Left Screen Assign
LCD Functions
Macro Buttons
Snapshot Control
Snapshot Previous/Next
Bank Select Buttons
Bank Select Buttons
Master Level & Solo 1
Master Screen Assign
Touch Turn Controls
1.3.2 Screen Assignment ...............................................................
The SD9 has one central touchscreen which is used to access many of the console's functions.
There are 3 possible views that can be seen on this screen - Left section - Right section - Master screen
Each console worksurface section has its own Screen Assign button which, when pressed, will allow the channels in that
section to be viewed on the screen and controlled by the Channel Processing controls such as EQ and Dynamics. When the
button is lit, that section is assigned to the screen.
There are also a Master button which allows you to view the Master screen. The Master screen gives access to many setup and other
functions which are not directly related to the console's channels.
