Hardware Replacement
7.4 Replacing the Display/Display
Cable
The following is needed:
• A new display including display frame, see
Available Spare Parts for iX Panel K60
• A torx T10 screwdriver
Note:
Make sure to use adequate ESD protection.
Follow the steps below to replace the display/display cable:
1. Power off the operator panel.
2. Follow the instructions under
Replacing the Rear Cover to remove the rear
cover.
3. Unlock the three flex cable connectors by pressing the connector flanges
towards the cable and disconnect the flex cables from the power card. The
connectors must be unlocked on both sides before removing the cables.
4. Disconnect LED cable, if applicable.

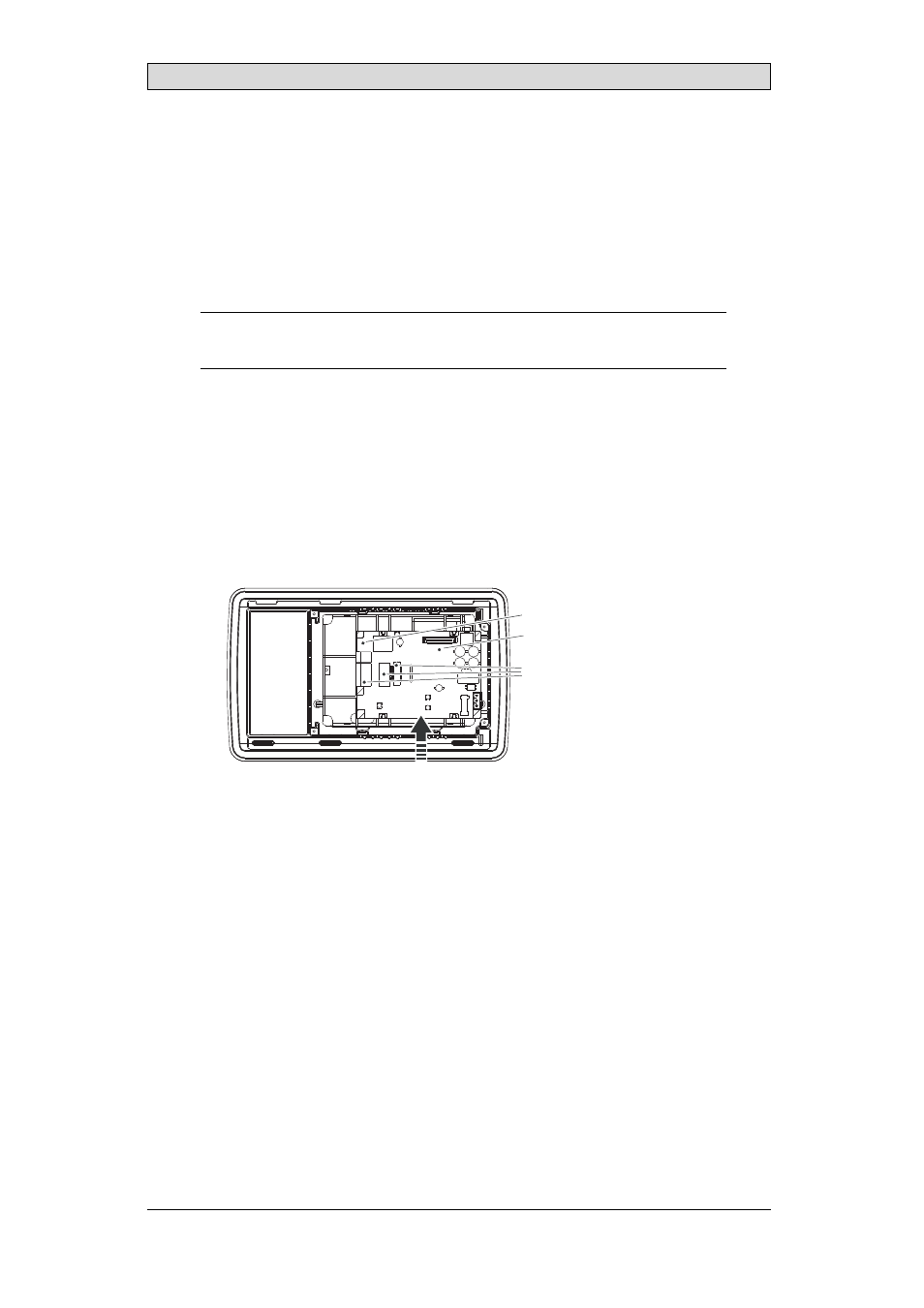

power card
flex cables
LED (on some models)
5. Gently press the power card towards the top of the panel as shown in the
illustration above to release the power card from the power card holders. Then
tilt the bottom of the card away from you.
6. Disconnect the plain cable on the back side of the power card and remove the
power card.
