T-12
T Technical Datas
© Elektronik-Systeme LAUER GmbH & Co. KG • Kelterstr. 59 • 72669 Unterensingen • Tel. 07022/9660-0 • Fax 07022/9660-103

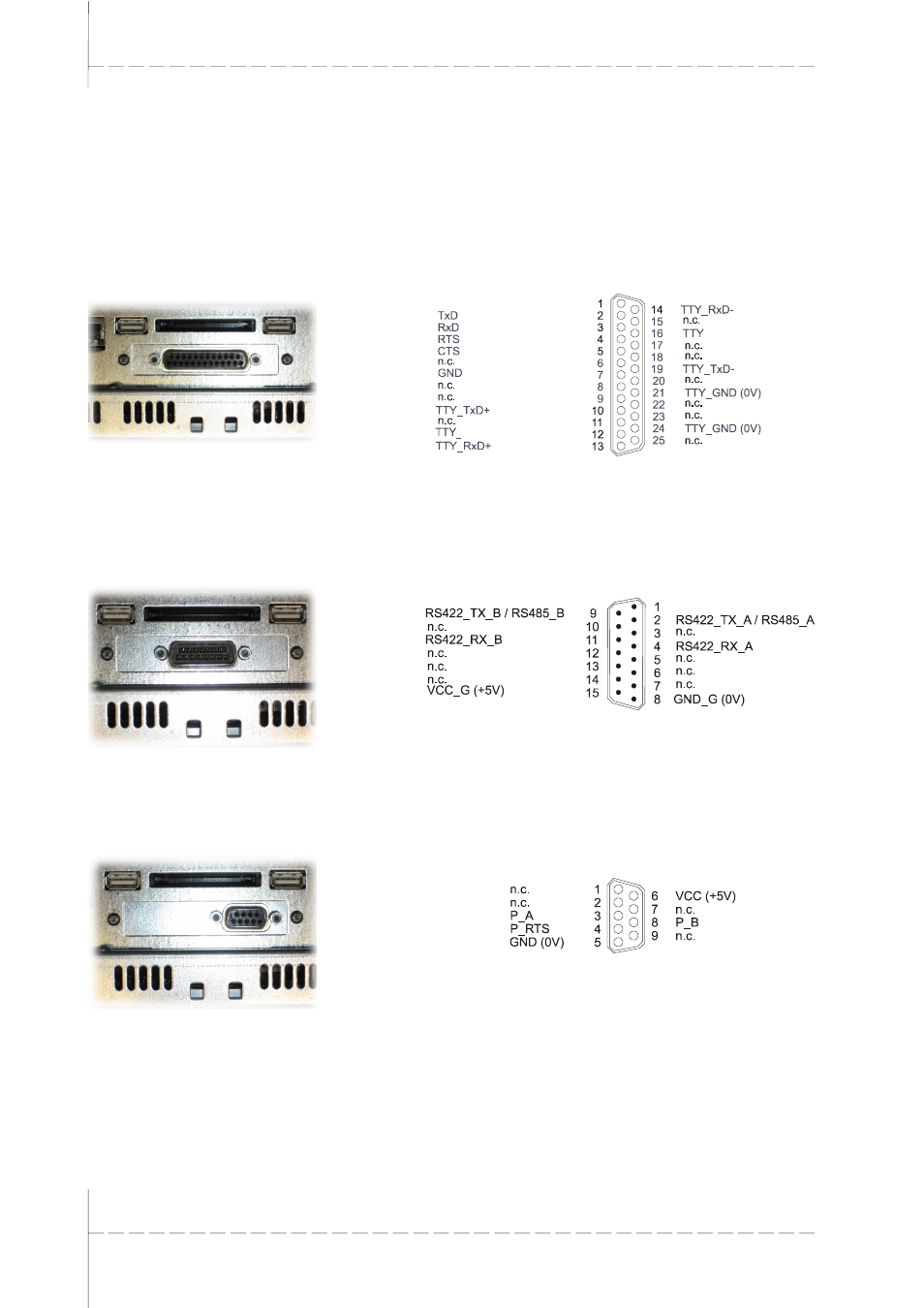

T5 Options for the BUS module (COM 2)
„S1“ – RS 232/TTY The potential of the intersection RS 232 is not separated.
The potential of the intersection TTY is separated.
DSUB-socket with 25 channels
„S2“ – RS 485/RS 422 The potential of the intersection RS 485/RS 422 is separated.
DSUB-plug: 15 channel plug
„P“ – Profibus-DP The potentials of the profibus intersection are separated.
DSUB-socket: 9 channel socket
Shielding/housing
Shielding/housing
power source 1 (20 mA)
power source2 (20 mA)
