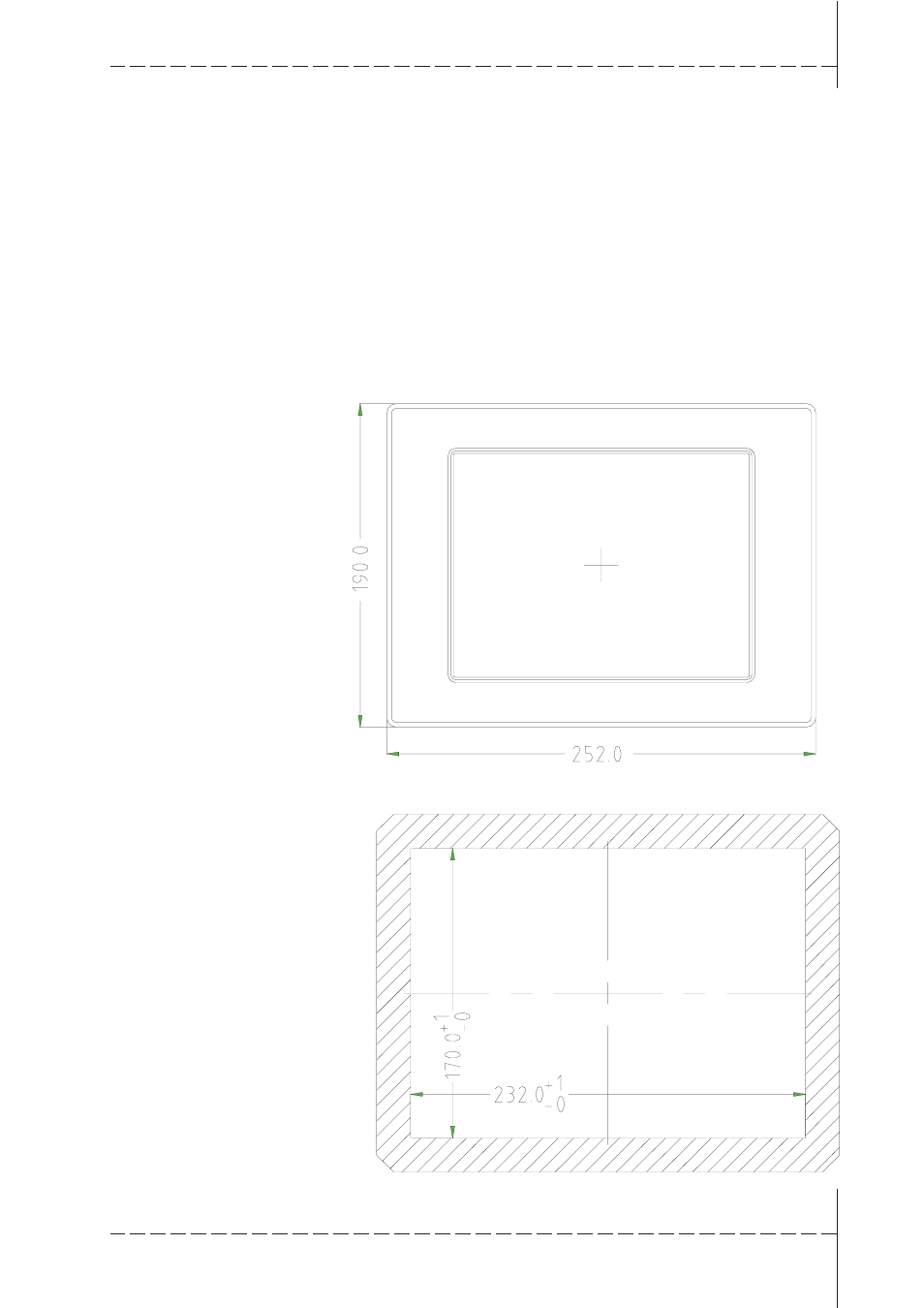

T1.5 EPC X 840 overall sizes/locating distances
Front plate width 252.0 mm
height 190.0 mm
Cutout measures width 232.0 mm
height 170.0 mm
Assembly depth 61 mm (without BUS-module option)
69 mm (with BUS-module option)
Weight approx. 1.9 kg
Opening in the front plate for installation
Opening W x H
232.0 mm x 170.0 mm
Manner of fastening:
with 6 aluminium or plastic retainer
blocks with set screws M 5x30,
DIN 914, with pin and hexagon
socket, zinced
(LAUER assembly set n
o 33)
