T1 Dimensions of the machine

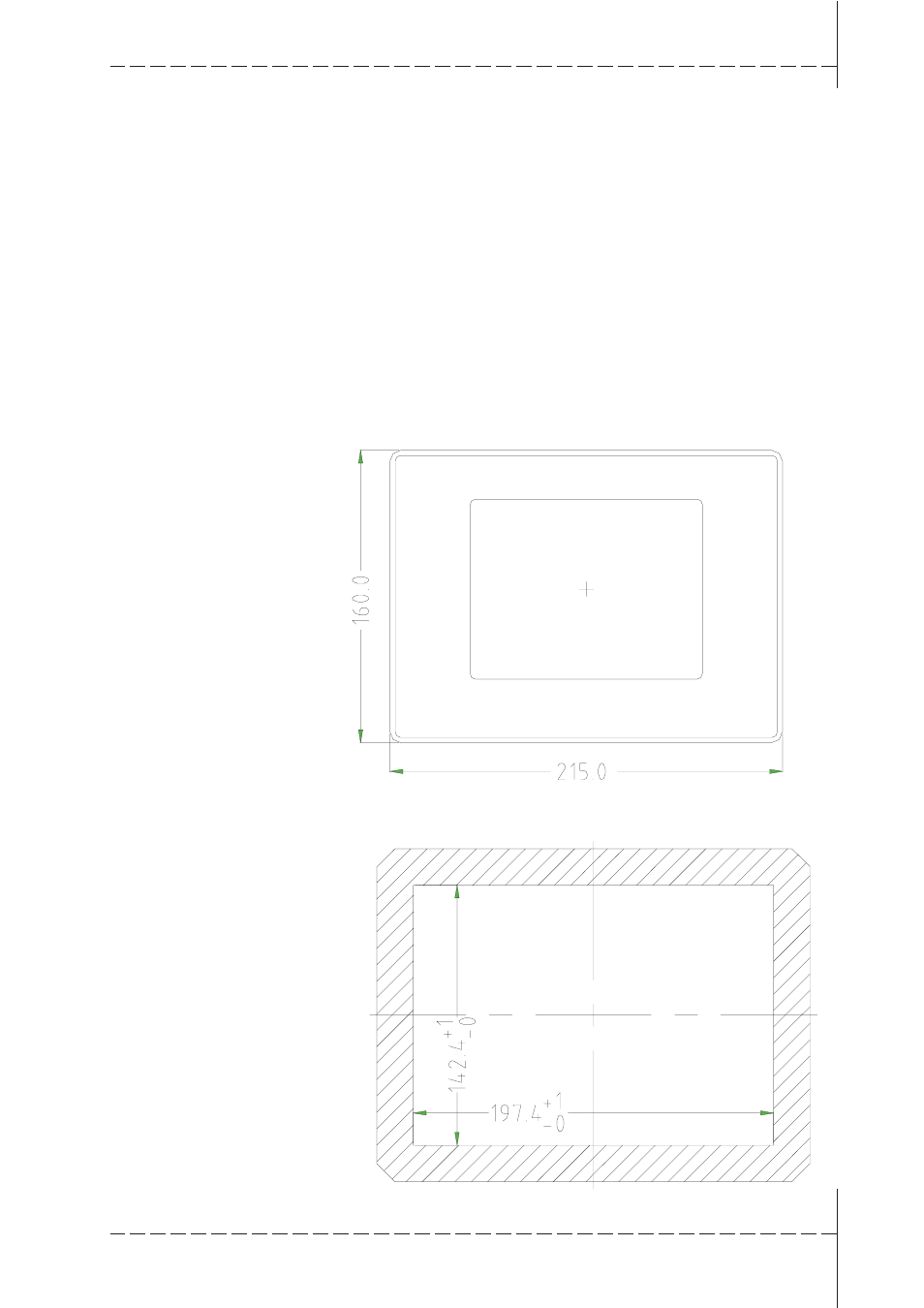

T1.1 EPC X 550 overall sizes/ assembly dimensions
Front plate width 215.0 mm
height 160.0 mm
Dimensions of section width 197.0 mm
height 142.4 mm
Depth of installation 53 mm
Weight approx. 1.2 kg
Opening in the front plate for installation
Opening W x H
197.0 mm x 142.4 mm
Manner of fastening:
with 4 aluminium or plastic retainer
blocks with set screws
M5x30, DIN 914, with pin and
hexagon socket, zinced.
(LAUER assembly set n
o 37)
