2-1
2 Commissioning 2 Commissioning
2.1 Power supply
Caution!
The EPC G must only be operated at protective extra-low-voltage as
defined by European standard EN60950!
The control transformer must comply with European standard EN60742!
Compare the power supply voltage with the voltage specified on the type
label.
All cable connections must be tested before commissioning the system.
You must ensure that all the voltages and signals correspond to the rele-
vant specifications.

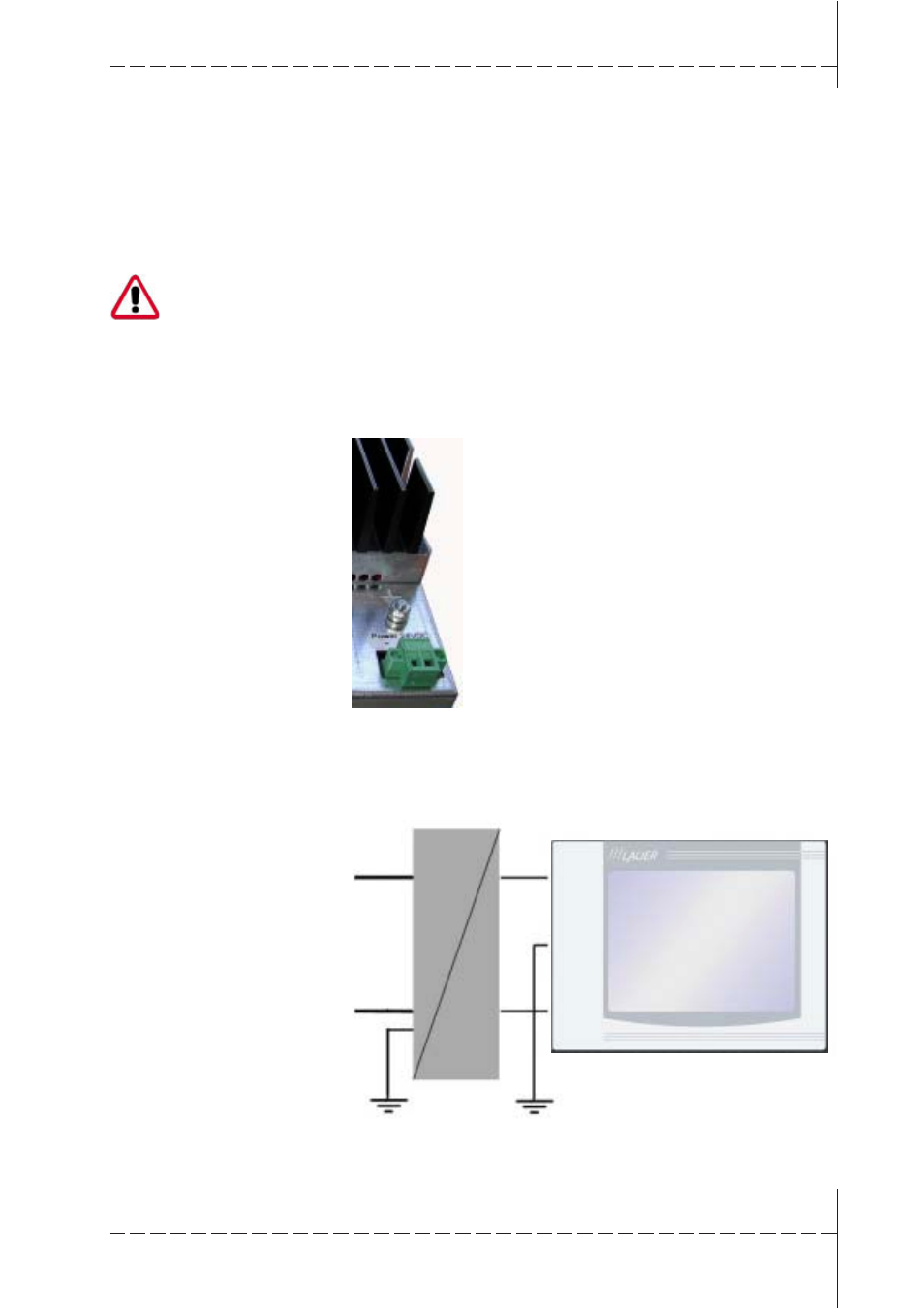

1 24 V power supply
2 Grounding screw
The power supply is rendered by a two-pole connector (Phoenix MST BT
2.5/2).
Power supply diagram
230 VAC
+ 24 V
230 VAC
0 V
24 V DC
1
2
