T-16
T Technical data

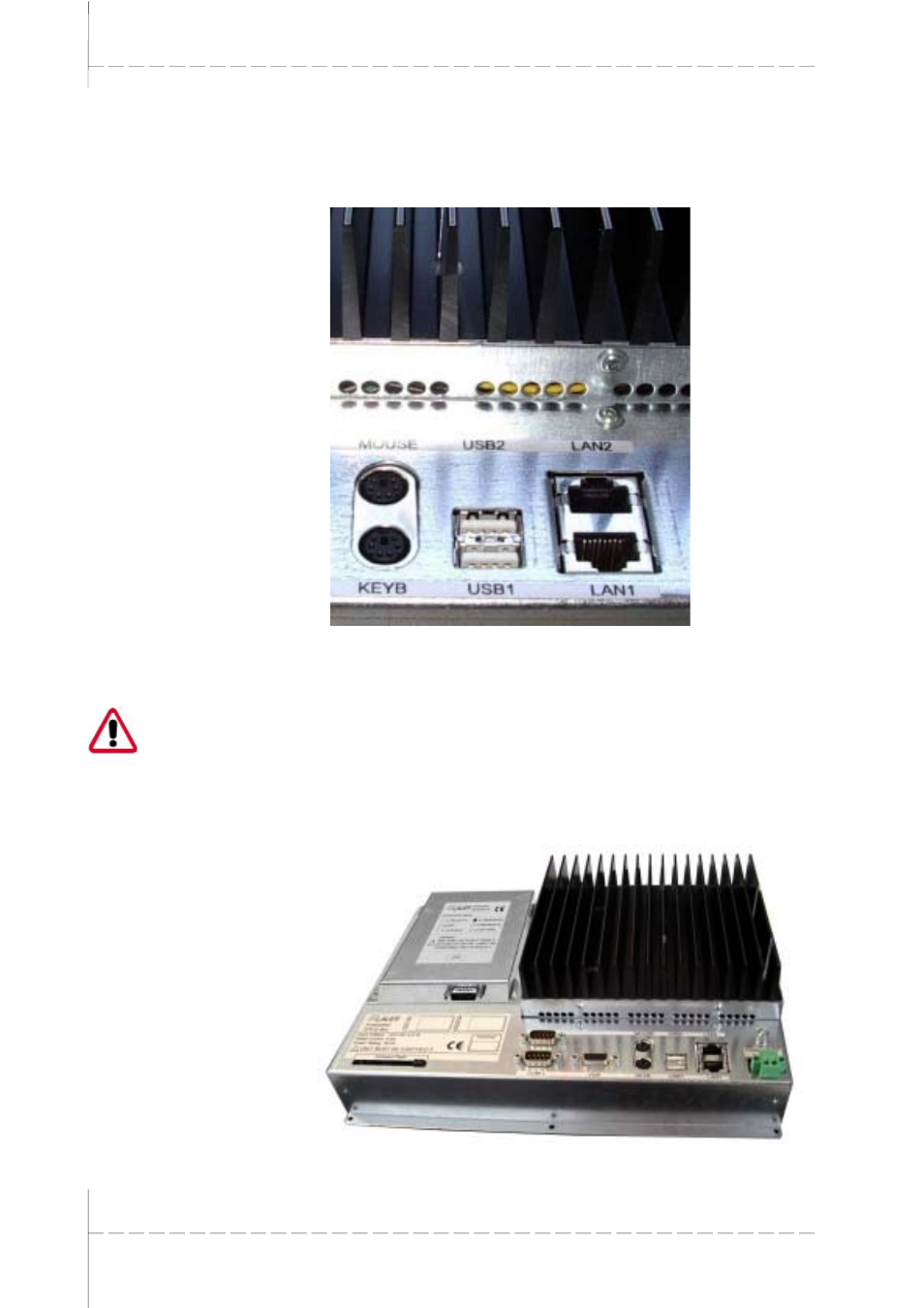

T4.3 Ethernet, USB, PS/2
1 Ethernet 1 / 2 (RJ45)
2 USB 1 / 2
3 PS2 Mouse/Keyboard
Caution!
The PS/2 mouse and PS/2 keyboard may be plugged or unplugged only
when the device is switched off.
Otherwise these input devices are not recognized by the operating system!
A maximum current of 100 mA may be drawn from the two USB interfaces!
External USB devices which require a higher supply current have to
provide this current themselves!
T4.4 Cassette option
1 Bus module cassette (opt.)*
* Depending on the type of bus
module, the interfaces can vary.
If the bus module cassette has
not been fitted, the rear side of
the device is covered with a cover
sheet.
2
1 3
1
