Hardware Replacement
6.5 Replacing the Backlight
Note:
All lamps in the display must be replaced at the same time.
The following is needed:
• Two new backlights, see Available Spare Parts for EPC TA150 AM
• A torx T10 screwdriver
• A screwdriver Phillips size 0 or 00
Note:
Make sure to use adequate ESD protection.
Follow the steps below to replace the battery of the EPC TA150 AM:
1. First, follow the steps 1–5 in section
Replacing the Rear Cover .
2. Remove the two cross-headed screws to the backlight, using the Phillips size
00 screwdriver. This way, backlights can be removed without removing the
plate.

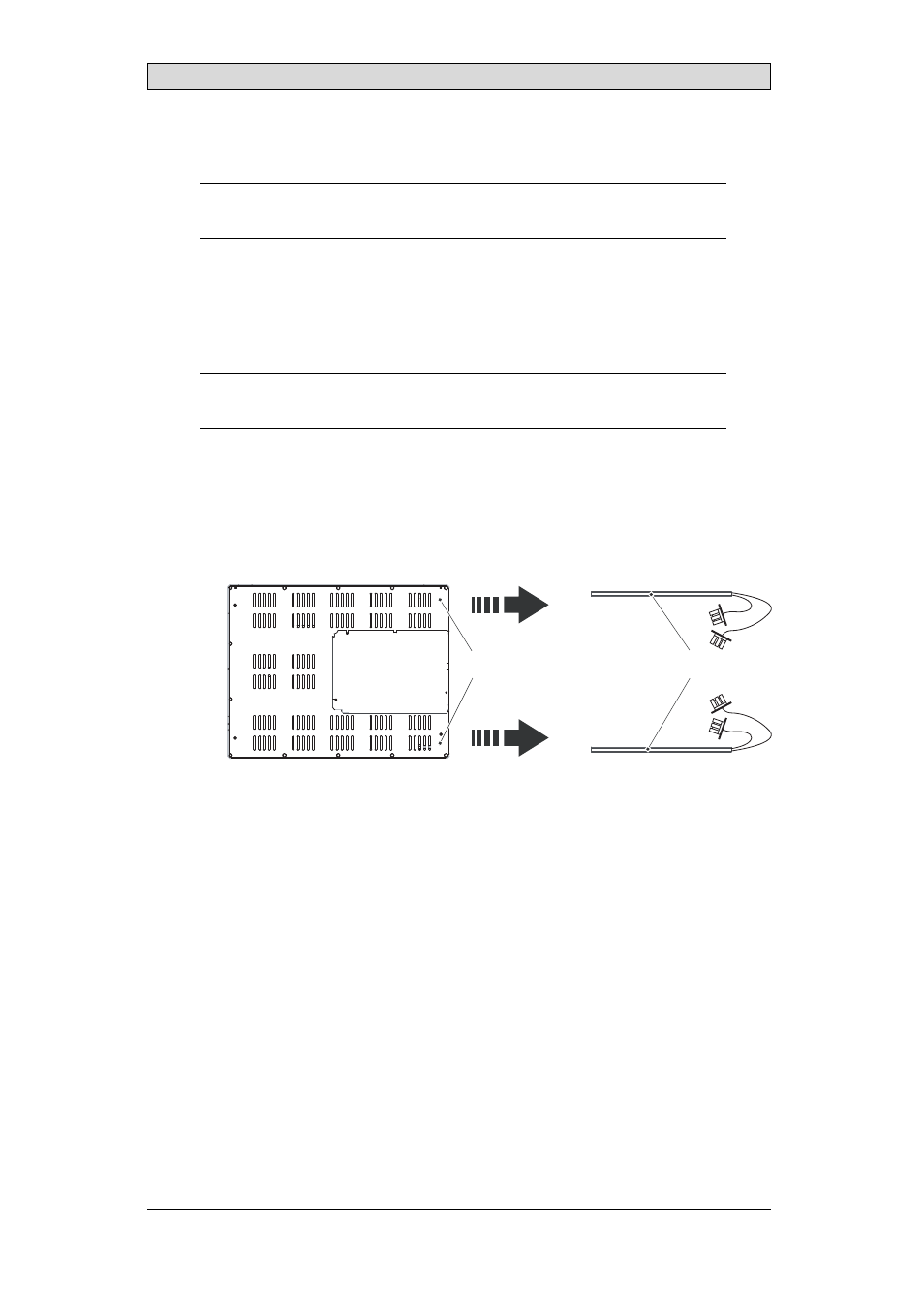

2 x cross headed screw 2 x backlight
3. Remove the backlights.
4. Insert the new backlights. Be careful not to pull the cables of the new
backlights when inserting them, since pulling the cables will damage the
backlights.
5. Re-assemble the complete Panel PC.
