TxA Maintenance
5. Unscrew the display frame (1) and remove the old display (2).
4
1
2
3

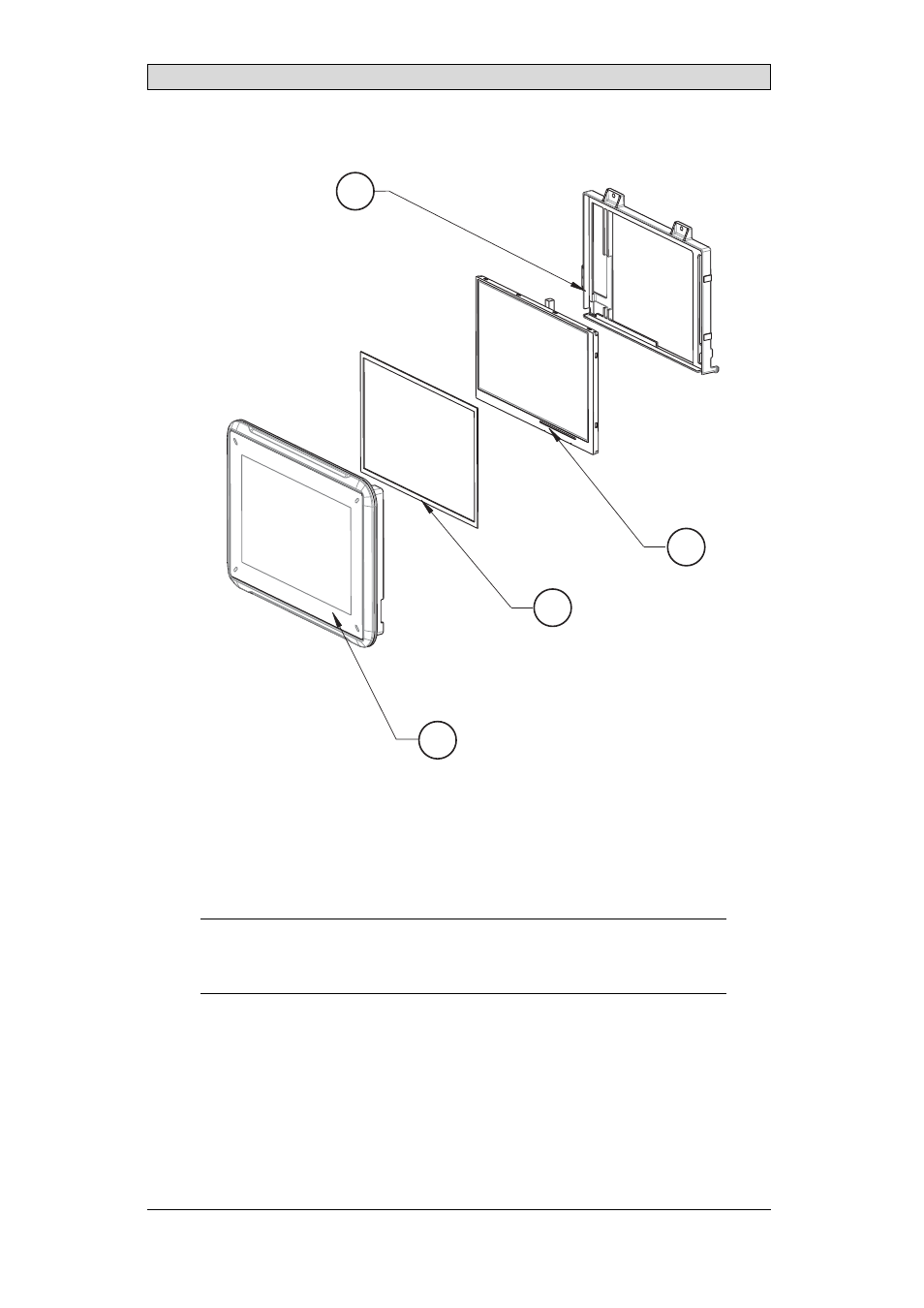

1. Display Frame
2. Display
3. Display Gasket
4. Front Frame
6. Assemble the new display (2).
Caution:
Take care that the display gasket (3) between the front frame (4) and display (2) is in
the correct position, and that it is not damaged.
