Cycle Station
Installation Instructions

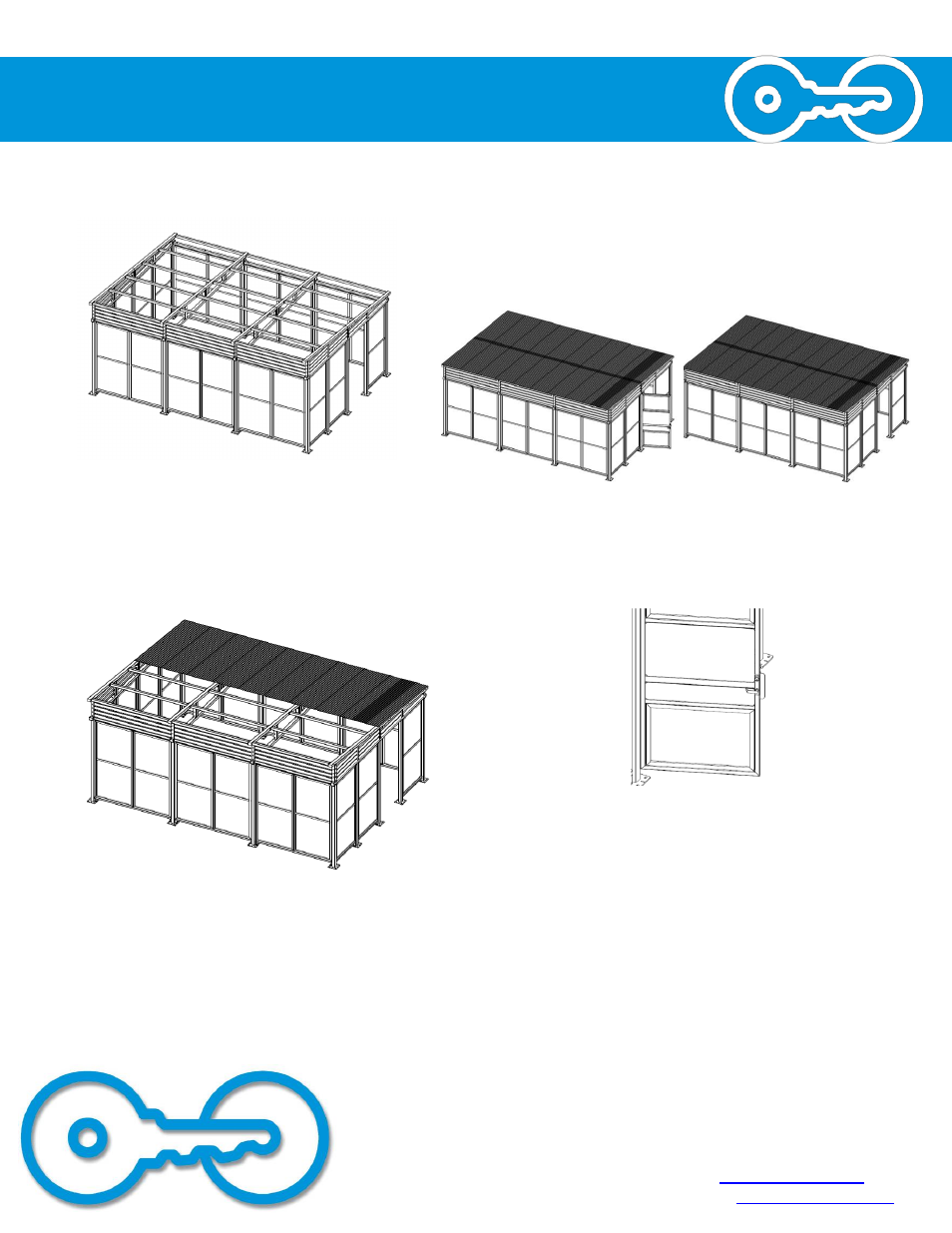

10. Install front and side louvers with (4) ¼”
x 5” bolts, (4) washers, (4) lock
washers, and (4) nuts. Tighten all.
11. Place the first row of type S decks and
fasten with (6) self-drilling screws each to
the purlins and trusses. Each deck will
provide 32.5” of coverage; the last deck
will overlap more. Place the second row of
type S decks and fasten with (6) self-
drilling screws each.
12. Attach door with (4) hinges and (8) ¼” x 1”
thread-cutting screws each. A 7/32” pilot hole will
need to be drilled for each thread-cutting screw.
Lubricate each thread-cutting screw before
installing. The door bottom should be 4.5” off the
ground and the door front should be flush with the
uprights. See individual product instructions to
install door trim, crash bar, door closer.
13. Install strike guard with (4) self-drilling
screws. Door should close just enough to
allow the latch to engage the strike.
14. See shelter assembly drawing for specific
bike rack placement locations.
