American Bicycle Security Company
P.O. Box 7359
Ventura, CA 93006
Ph: (800) 245-3723 or (805) 933-3688
Fax: (805) 933-1865
Cycle Station
Product
Cycle Station
Capacity

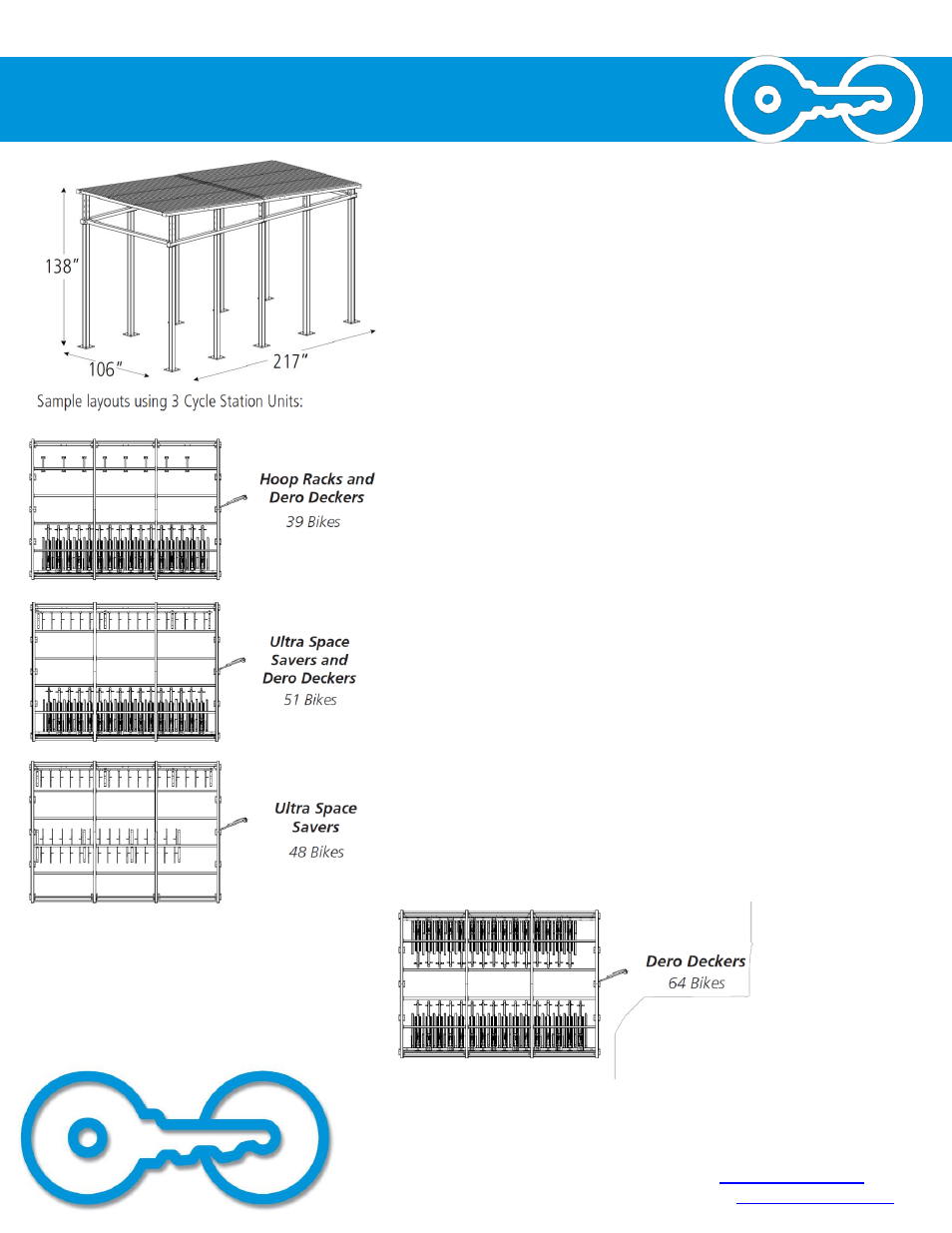

See diagrams below and to left
Materials
Uprights: 4” x 3/16” square tube
Feet: ½” plate
Roof Truss: 4”x 3” x 3/16” square tube
Roof Purlins: 3” x 1/8” square tube
Roof Panels: 24g Type S deck galvanized steel
Panels: ¼” clear polycarbonate with 1.77” square aluminum
framing
Panels: 2” x 3/16” steel wire mesh with 2” steel framing
Finishes
An after fabrication hot dipped galvanized finish is our standard
option.
250 TGIC powder coat colors, thermoplastic coating, PVC dip,
and stainless steel finishes are also available as alternate
options.
Our powder coat finish assures a high level of adhesion
and durability by following these steps:
1. Sandblast
2. Epoxy primer electrostatically applied
3. Final thick TGIC polyester powder coat
Installation
Methods
Surface Mount. It is the responsibility of the installer to
ensure that all base materials into which the shelter will
be installed can support the rack and will not be damaged
by any required installation procedures. See structural
drawings for details..
Load Data
Dead load = self-weight of structure
Live load = 40 psf
Wind load = 90 mph exposure B
Seismic load = moderate to high
Footing: see page 4
Anchor bolt = 5/8” x 4½” embed Simpson Strong-Bolt 2
wedge anchors
*The Cycle Station can be used in a modular fashion (shared uprights)
however, when used in this manner, please call for layout, as the
rack spacing and bike capacity can change!
