Cycle Station
Installation Instructions

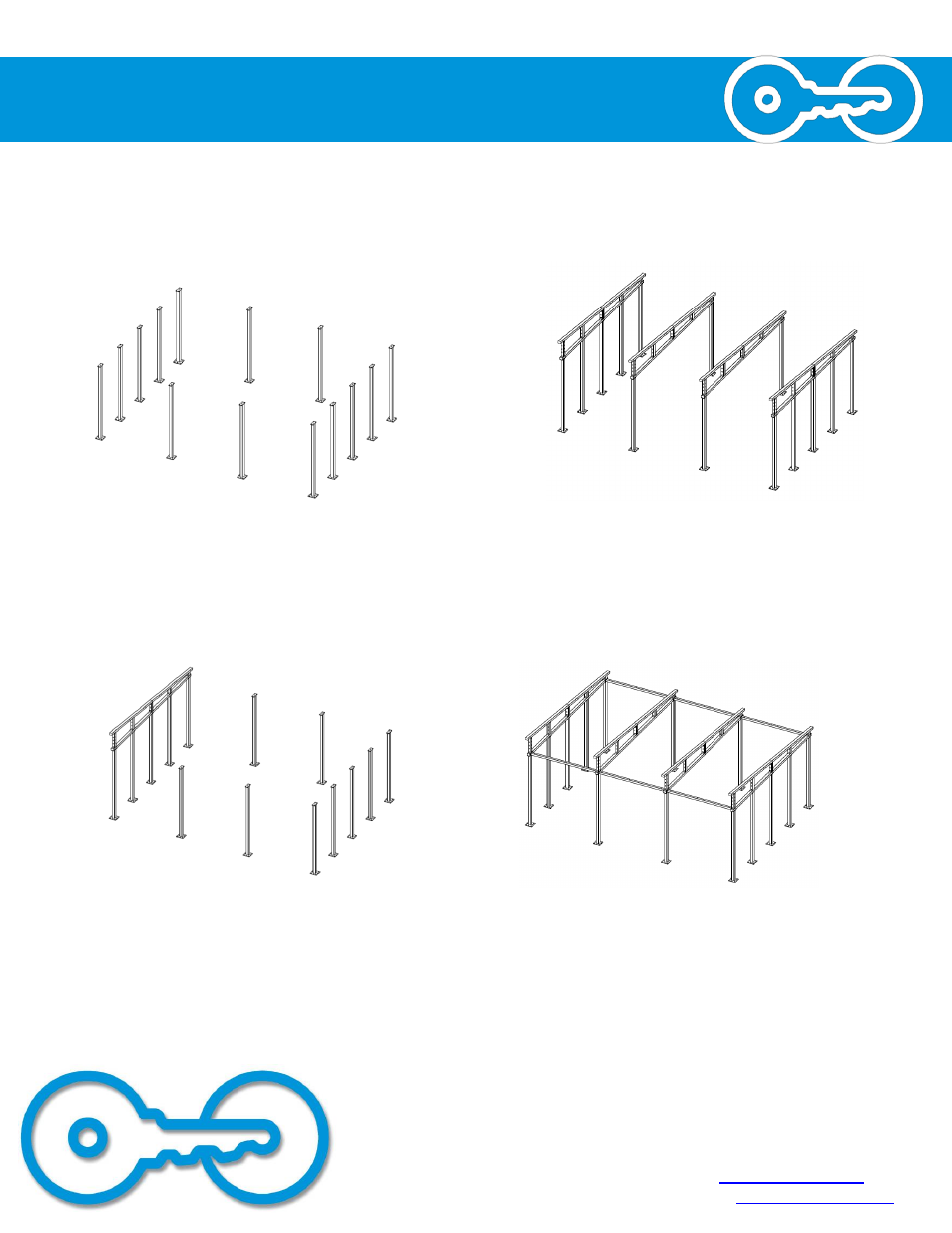

Installation Steps:
1. Place uprights on concrete pad over footings (see footing
drawing). Confirm all uprights are properly spaced and
square. Using the upright foot as a template, drill (4)
5
/
8
”
diameter 2 x 6” holes at each upright. Install wedge
anchors with nuts finger-tight. See shelter assembly
drawing for specific upright placement locations.
2. Lift both truss halves into place and fasten to
uprights with (4) ½” x 4.5” bolts, (4) lock
washers, and (4) nuts at each upright.
Leave finger-tight. Fasten truss halves to each
other with (4) ¾” x 5.5” bolts, (8) lock washers,
and (4) nuts each. Fully tighten.
3. Install the remaining trusses. For middle
trusses, fasten truss halves to each other
before lifting
4. For shelters with side panels, install the
purlins for panels (these are the same as the
other purlins but with (4) holes through the
tube) with (4)
3
/
8
” x 5.5” bolts, (4) washers,
(4) lock washers, and (4) nuts each. Leave
finger-tight. For shelters without side panels,
these purlins are the same as all other
purlins.
