Page 2
American Bicycle Security Company
P.O. Box 7359
Ventura, CA 93006
Ph: (800) 245-3723 or (805) 933-3688
Fax: (805) 933-1865

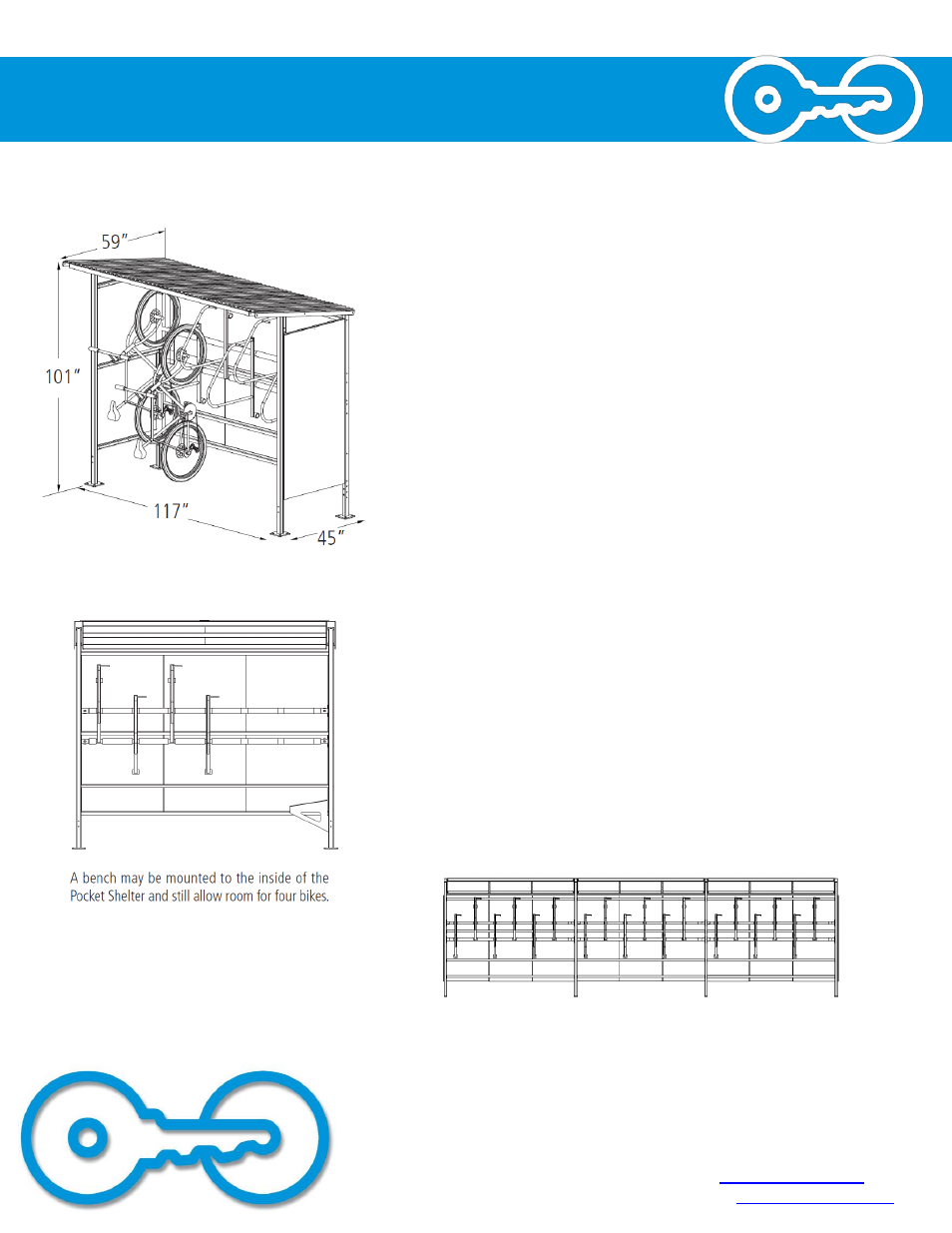

Pocket Shelter
Product
Pocket Shelter
Capacity
With Ultra Space Savers: 6 Bikes
With Bike Files: 10 Bikes
Materials
Uprights: 2” x 3/16” square tube
Feet: 3/8” plate
Horizontal members: 3/16” formed sheet
Roof panels: 26g type S deck or ¼” polycarbonate
Roof members: 3/16” formed sheet
Side panels: ¼” polycarbonate
Finishes
An after fabrication hot dipped galvanized finish is our standard
option.
250 TGIC powder coat colors, thermoplastic coating, PVC dip,
and stainless steel finishes are also available as alternate
options.
Our powder coat finish assures a high level of adhesion
and durability by following these steps:
1. Sandblast
2. Epoxy primer electrostatically applied
3. Final thick TGIC polyester powder coat
Installation
Methods
Surface Mount has four 6” square feet which must be
anchored to the ground with supplied anchors. See footing
details on page 4.
Space Use
& Setbacks
Consult local building codes for acceptable setbacks and
placement.
Load Data
Dead load = self weight of structure
Live load = snow load = 45 psf
Wind load = 90 mph exposure B
Seismic load = moderate
Footing: see page 4
Anchor bolt = Simpson strong-bolt 2, ½” x 5 ½”, 3 7/8”
minimum embed
*These can also be modular.
