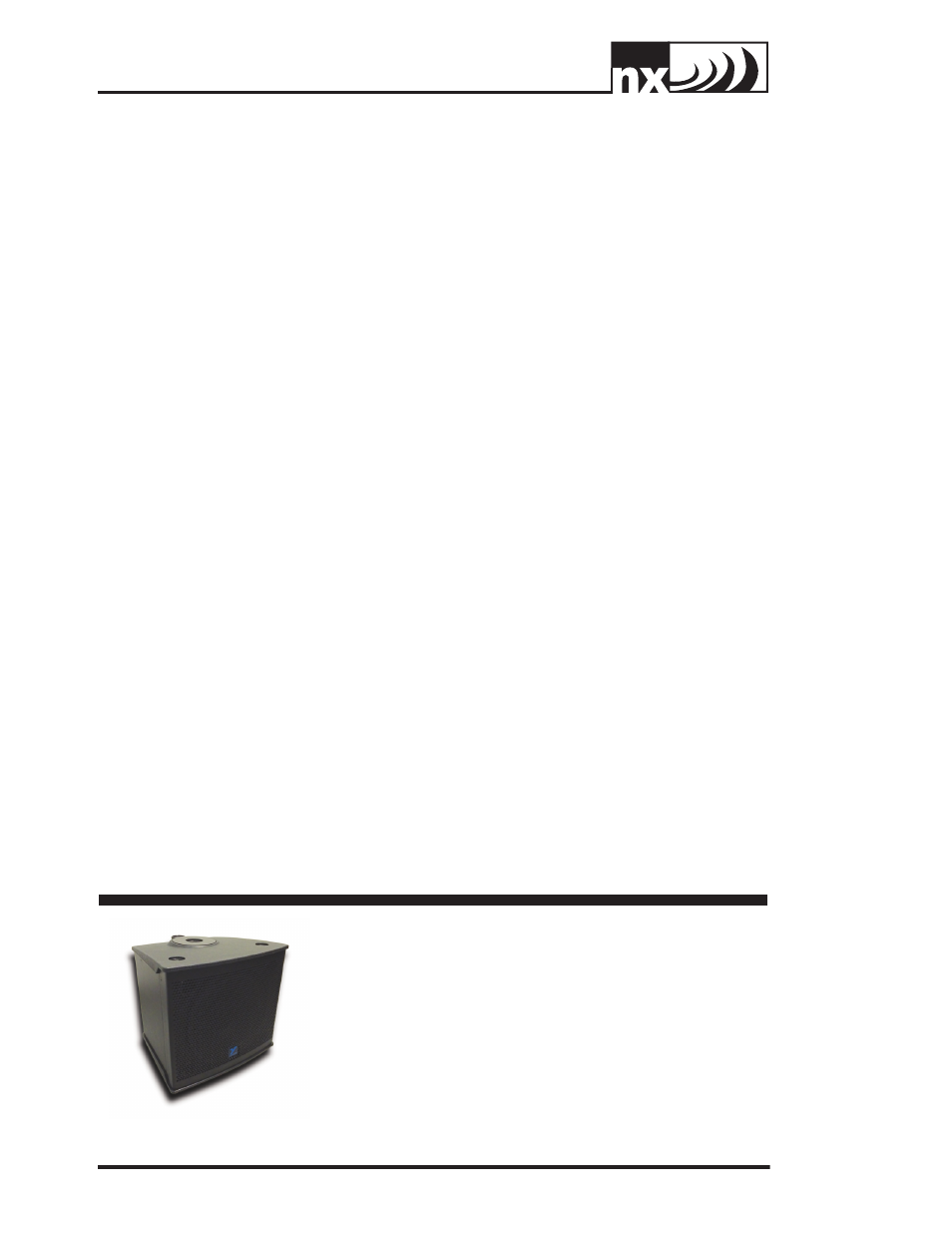

NX10C - Active Speaker - 600w, 10-inch / 1-inch
When designing the NX10C sound reinforcement loudspeakers, Yorkville Sound wanted to build
lightweight enclosure with a small footprint that performs exceptionally well. With the NX10C,
we have confidently delivered what we feel is one of the most usable and versatile sound
reinforcement loudspeakers on the market. We’re proud to introduce the NX10C!
The NX10C offers a great value for a 10-inch and horn active loudspeaker enclosure. The
biamped 600-watt (peak) power module has a minimum of controls yet provides maximum
versatility making the NX10C the ideal solution for many applications.
It all starts with the NX10C’s inputs for mic and line level sources, virtually any audio source
can be connected. The innovative single EQ control is extremely flexible to help you tailor the
sound for the environment. The size of the NX10C is also an advantage, as the 12-inch footprint
along with the innovative pole mount design make the NX10C one of the most versatile
professional PA cabinets ever!
The horn/tweeter amplifier uses class A/B technology, allowing the horn to produce clean
transients to keep up with the high output of the woofer. The woofer (low frequency) amplifier
uses class-H 2-tier amplifier technology. This achieves a lighter weight and more efficient audio
amplifier with higher headroom and lower operating temperature. Each amplifier has it own
limiter to prevent distortion caused by clipping.
The incredible "through-hole" pole mount allows multiple NX10C cabinets to be mounted on a
single speaker stand. As an example, when wider horizontal coverage is needed, the NX10C cabinets
can be rotated about the axis of the pole while maintaining full phase coherency. This would allow
overage for up to 360 degrees is possible! You can also use the rotated cabinets as side-wash stage
monitors as well. Another option would be to use the same stands you use for your stage lighting
system. NX10C's can be mounted under the light bars, saving valuable space on stage.
The versatility doesn’t stop there. Yorkville design engineers made sure that even the rear-
mounted handle also has more than one use. It has been designed to operate as a tilt bar, allowing
the NX10C to be used as a wide-coverage floor monitor or center fill cabinet. Now that’s versatility!
Features
• Ultra-durable aluminum, wood, and ABS plastic construction
• Multi-purpose full range and wedge monitor format enclosure
• Ultra-clear reproduction throughout bandwidth
• Lightweight, high efficiency, high tech, 600-watt (peak) biamped power module
• Balanced Combi-jack (XLR/1/4-inch TRS) input
• An XLR output for easy connection for linking and looping
• Direct microphone input with level control
• Innovative single overall EQ control
• 10-inch Ceramic Magnet co-axial driver
• High quality 1-inch High Frequency driver built into woofer
• Innovative through the cabinet pole mounting for multiple uses
• Tough metal grille
• Flush mounted controls
Power Switch and LED
The Power Switch turns the power on and off for the NX10C
enclosure and the green LED will illuminate when the power
is on also indicating a properly functioning fuse.
AC Inlet and Outlet
The NX10C supports cascaded power installation via the AC
Outlet connection. It is important to note that the maximum
power that can be drawn through the first unit’s AC inlet is
100-240V, 12-5A, 1200W. The user must take into consideration
the sum of all power consumed by the units in the chain.
Choose an appropriate rated power cord (min 16AWG for
USA and Canada) acceptable in the country where the
product is used when setting up a cascaded installation.
