Part#

Description

qty

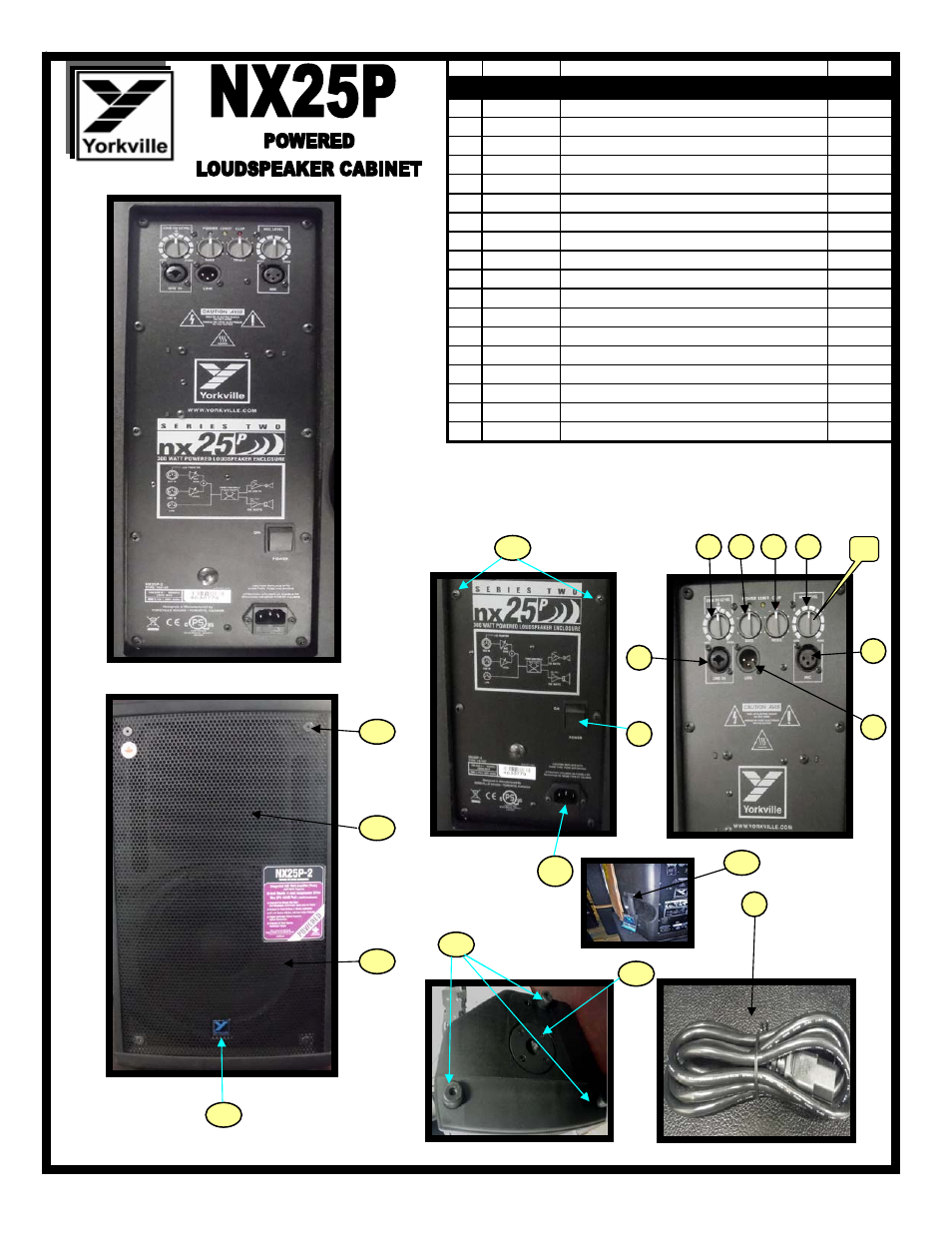

Labeled Components

1

3428

8' 3/18 SJT AC LINE CORD REMOVABLE

1

2

4432

_10K B LIN 9MM P32

1

3

4434

_10K B LIN 9MM DETENT P32

2

4

4435

_50K B LIN 9MM DETENT P32

1

5

8653

LOW PROFILE POINTER AT 12 KNOB

4

6

4010

XLR FEML PCB MT VERT 24MM AA-SERIES

1

7

4140

XLR MALE PCB MT VERT 24MM A-SERIES

1

8

4090

1/4IN &XLR PCB MT VERT COMBO NCJ6-V

1

9

4184

DPST ROKR SW QUIK 250" AC/PWR IEC6

1

10

3438

RECEPTACLE:INLET C/FUSE DRAWER

1

11

8483

ADAPTOR,SPEAKER STAND,METAL,BLACK

1

12

HANDLE

1

13

3538

RUBBER FOOT 1.375 X 1.375

3

14

8786

10-32 X 1 1/4 PAN QD MS JS500 BLACK

10

15

8935

1/4-20 X 23MM JOINT CONN. BOLT B/O

4

16

7297

12" 8R 500WPGM SPEAKER

1

17

7527

_8R 40W 1.00" DRIVER CDX1-1445 CER

1

18

8240D

LOGO YORKVILLE SMALL BLUE DOMED

1

2

5

4

3

5

6

7

8

9

1

10

12

13

11

14

15

16

17

18
