P A N E L I D E N T I F I C A T I O N

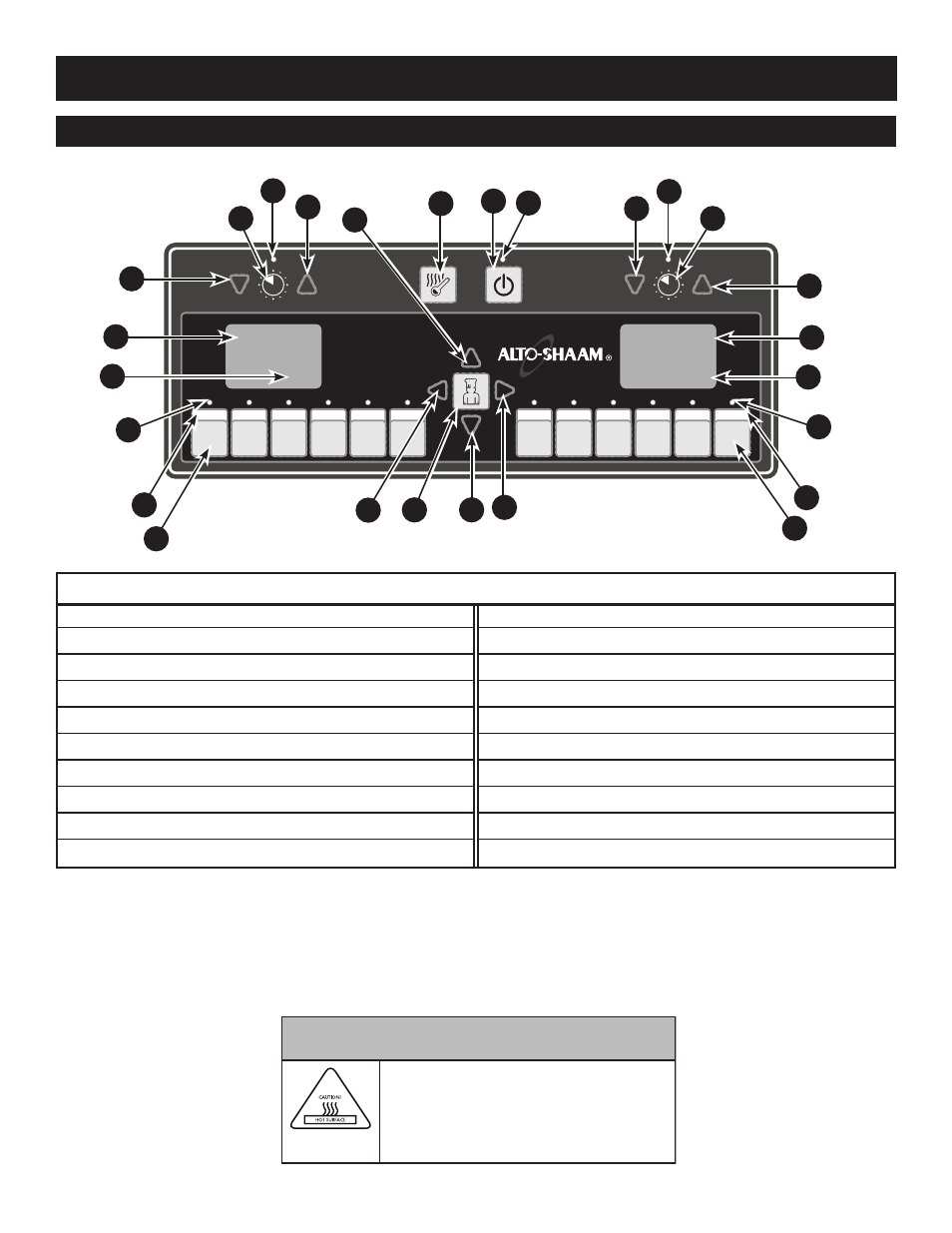

DUAL CONTROL PANEL IDENTIFICATION
1. POWER ON KEY
2. POWER ON INDICATOR LIGHT
3. L.E.D. 4-DIGIT DISPLAY
4. ALPHA/NUMERIC DISPLAY
5. PROGRAMMED PRODUCT KEYS (12)
6. PROGRAMMED PRODUCT WINDOWS (2)
7. PROGRAMMED PRODUCT INDICATOR LIGHTS
8. TEMPERATURE KEY
9. PROGRAMMING KEY
10. RIGHT ARROW KEY
11. LEFT ARROW KEY
12. DOWN ARROW KEY
13. UP ARROW KEY
14. L.E.D. 4-DIGIT DISPLAY
15. ALPHA/NUMERIC DISPLAY
16. MANUAL OPERATION UP ARROW KEY
17. MANUAL OPERATION TIME KEY
18. MANUAL OPERATION DOWN KEY
19. INDICATOR LIGHT
3
5
9
13
5
10
8 2 1
3
4 4
6
7
11 12
6
7
16
17
18
19
18
17
16
19
Gas Fryer Operation & Care Manual • 24
D E L U X E C O N T R O L O P E R A T I O N O P E R A T I O N
C A U T I O N
METAL PARTS OF THIS EQUIPMENT
BECOME EXTREMELY HOT WHEN
IN OPERATION. TO AVOID BURNS,
ALWAYS USE HAND PROTECTION
WHEN OPERATING THIS APPLIANCE.
