04/14 Rev. B 151749

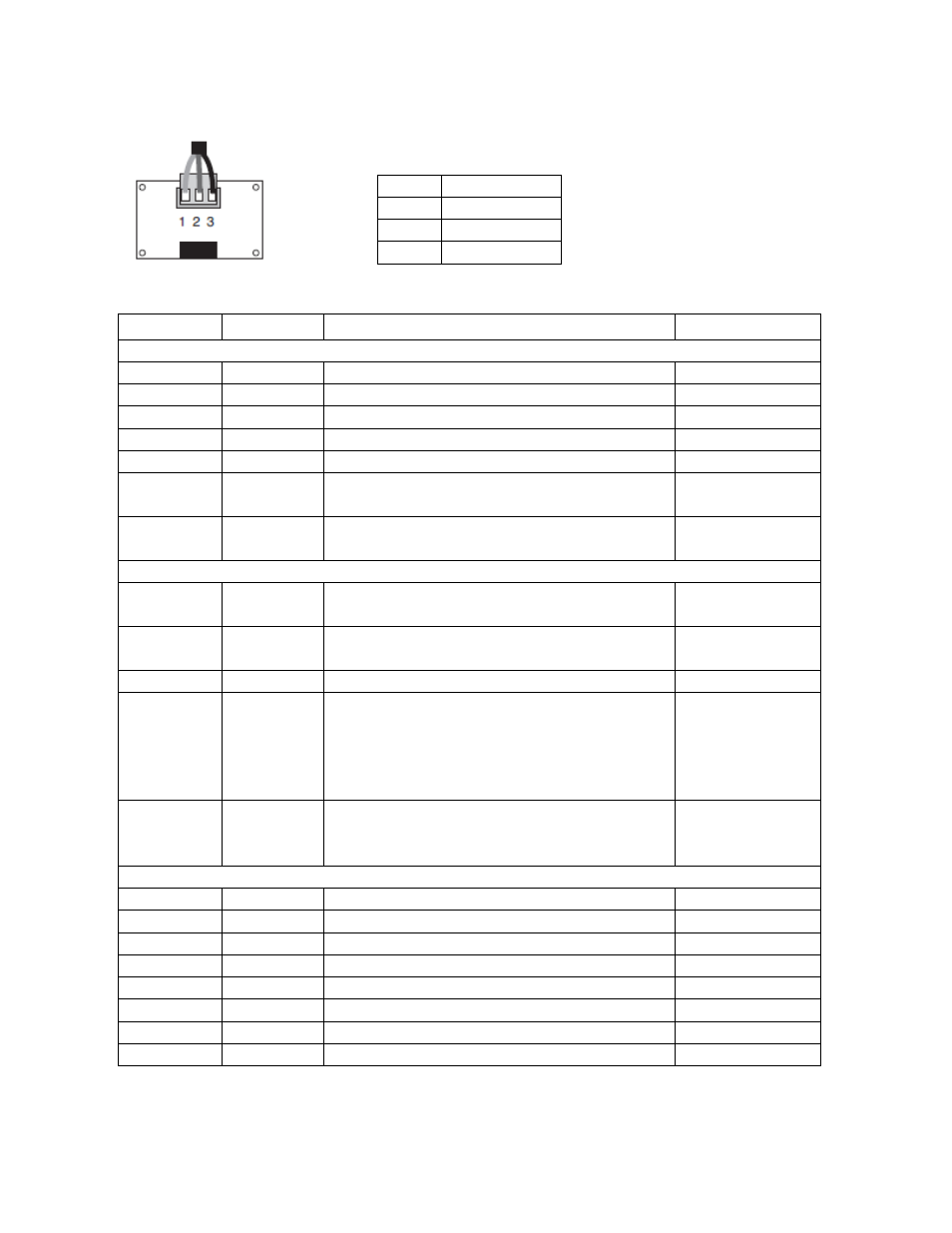

Pinout
Parameter List
Register Variable Description
Range
***Analog***
1
AIRT
Air Temperature
Read Only
2
PROT
Product Temperature
Read Only
4
ASET
Air Temperature Set Point
2.0 to 50.0ºC
5
HITA
High Air Temperature Alarm Set Point
-50.0 to 75.0ºC
6
LOTA
Low Air Temperature Alarm Set Point
-50.0 to 75.0ºC
7
HITP
High Product Temperature Alarm Set
Point
-50.0 to 75.0ºC
8
LOTP
Low Product Temperature Alarm Set
Point
-50.0 to 75.0ºC
***Integer***
129
ATAD
Air Temperature Alarm Delay
0 to 999
seconds
130
PTAD
Product Temperature Alarm Delay
0 to 999
seconds
133
BURB
Buzzer Ring Back Time
0 to 20 minutes
134
BUTO
Buzzer Tone
0 = Constant
1 = 1 sec on 2
sec off
2 = 2 sec on 5
sec off
163
---
System Status
1 = On
2 = Off: Switch
3 = Off: Alarm
***Digital***
1
---
Air Temperature Sensor Fail Alarm
0 = Off; 1 = On
2
---
Air Temperature High Alarm
0 = Off; 1 = On
3
---
Air Temperature Low Alarm
0 = Off; 1 = On
4
---
Product Temperature Fail Alarm
0 = Off; 1 = On
5
---
Product Temperature High Alarm
0 = Off; 1 = On
6
---
Product Temperature Low Alarm
0 = Off; 1 = On
10
---
Door Ajar Alarm
0 = Off; 1 = On
21
---
Power Reset
0 = Off; 1 = On
Pin
Description
1
GND
2
RX+/TX+
3
RX-/TX-
