ASSEMBLY
Step 5
9
9
10
9
10
12
11
Hardware Used
M6 Nut x 12
M6x10 Screw x 12
6mm Washer x 12
M6 Nut x 3
M6x70 Double Pointed Bolts x 3
6mm Washer x 6
Hardware Used
Step 5
Step 6
、
Step 6

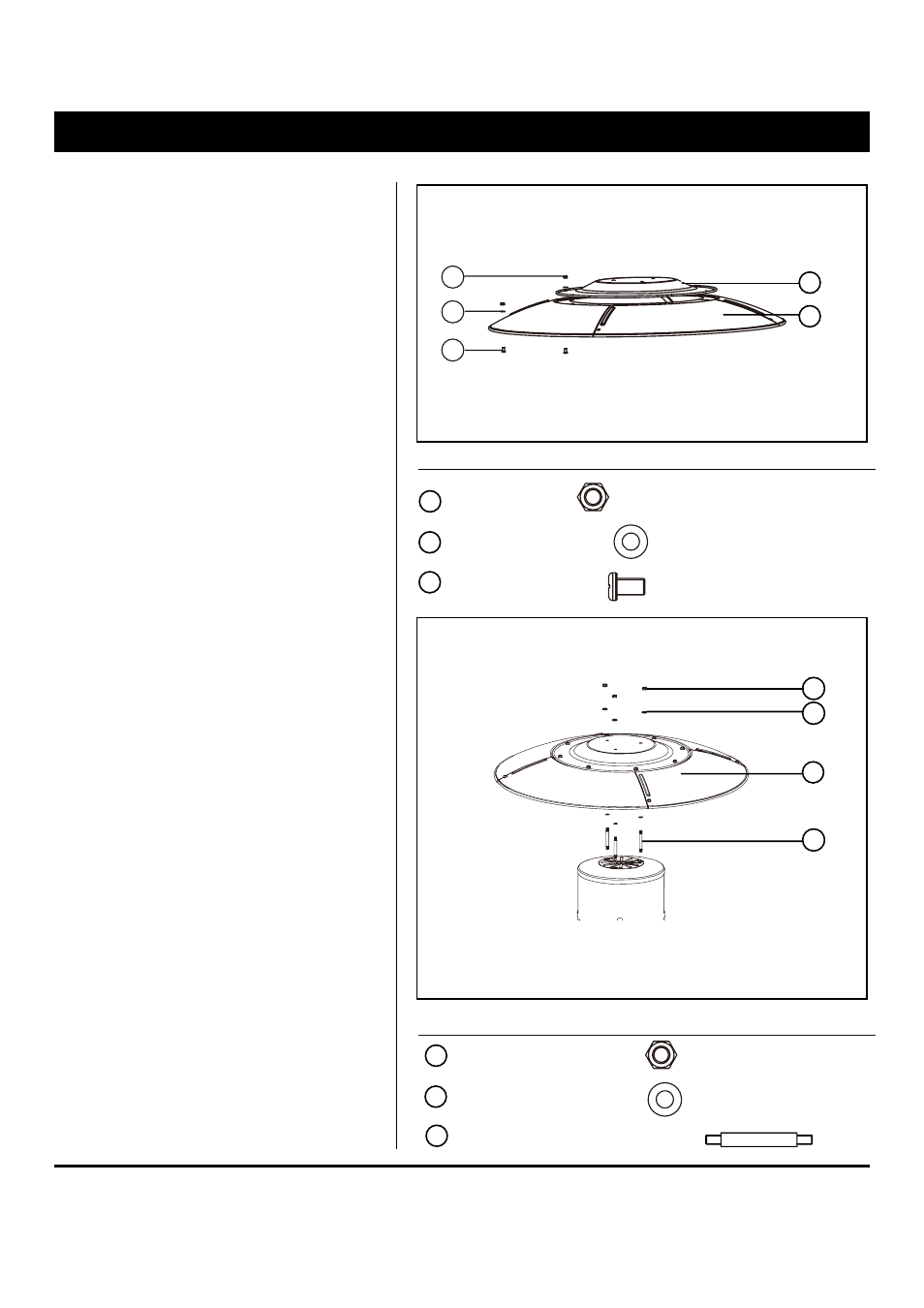

Attach the center reflector cap (1) on
the top of the four reflector cap (2) by
twelve sets of M6x10 screw (11) , 6mm
washer (10) and M6 nut (9) .
Install reflector assembly (2) , fix it with
3pcs M6×70 double pointed bolt (12)
6pcs 6mm washer (10) and 3 pcs M6
nut (9) .
1
2
11
9
10
2
12
9
10
