WARNING:
Read ALL assembly instructions
thoroughly and carefully to insure
proper, safe assembly .
Step 1
Step 2
ASSEMBLY
5
16
17
18
8
6
Hardware Used
Hardware Used
5mm washer X 6
M5 X 8 bolt X 6
M6 X 14 bolt X 3
Step 1
Step 2

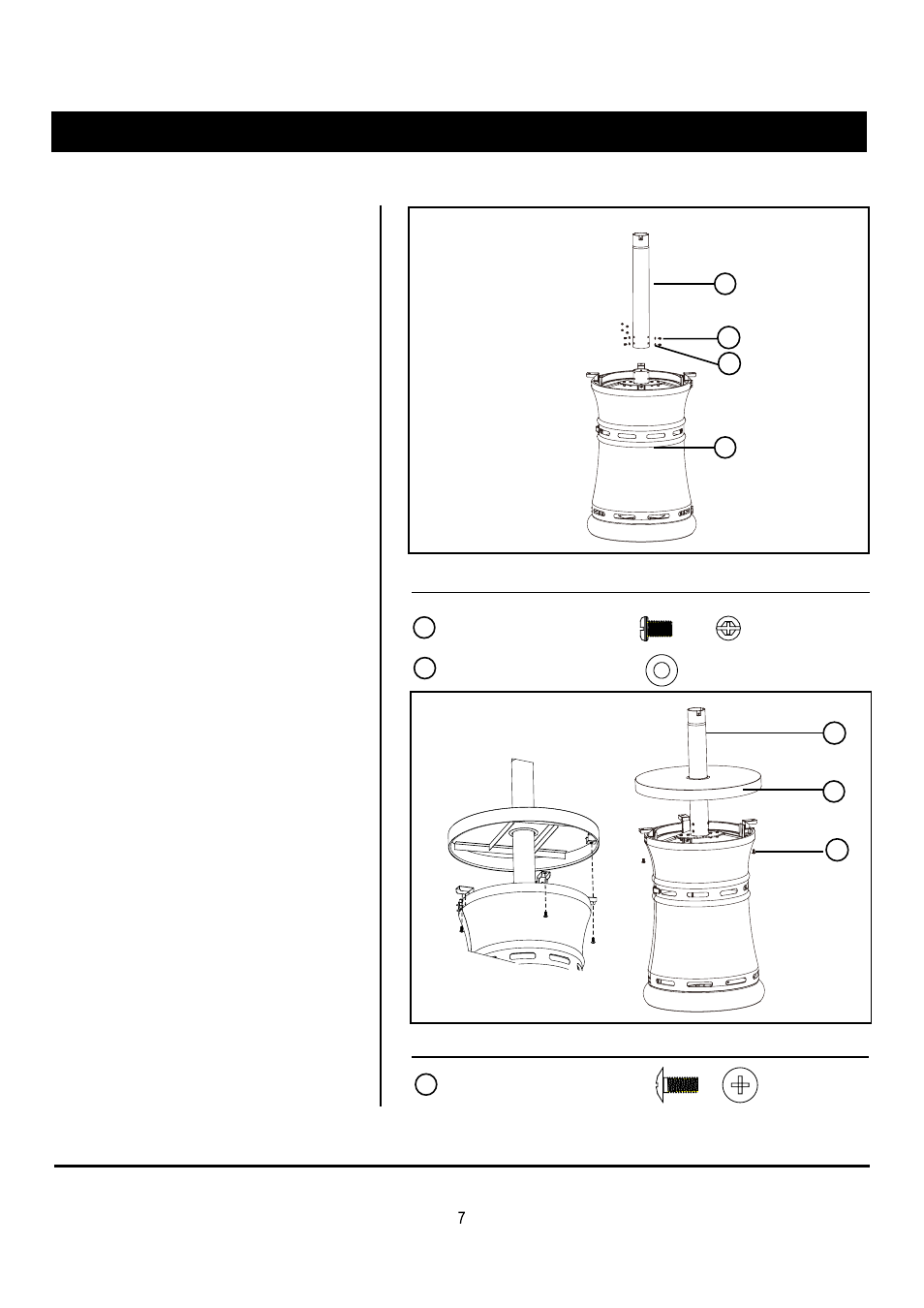

Insert low pole (5) into the pole
supporting board (8) , fix it with 6 pcs
5mm washer (17) and 6 pcs M5×8
bolt (16) .
Put the desk surface (6) on the low
pole (5) , fix it with 3 pcs M6×14
bolt (18) .
5
16
17
18
