CatEye MSC 3Dx - Manual (Page 5)

MSC-3Dx 5

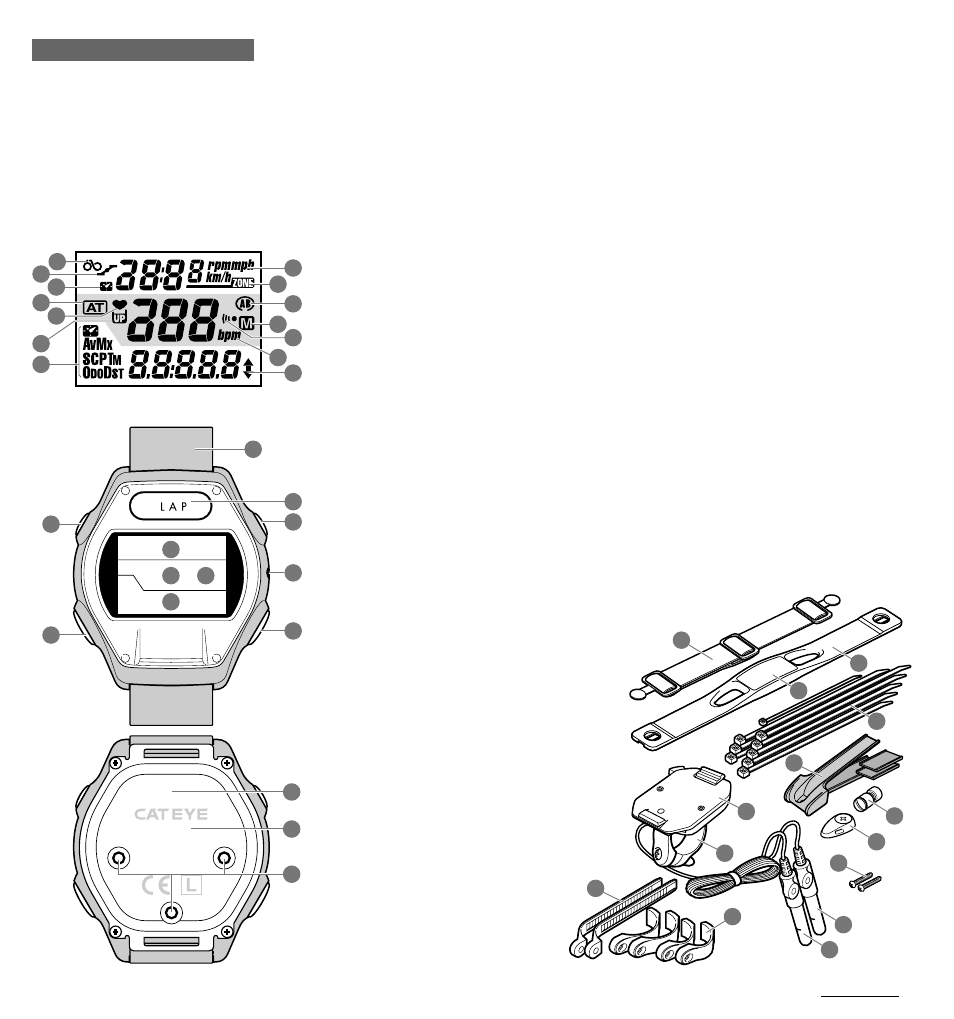

NAME OF VARIOUS SECTIONS AND PARTS
SET/AT
LT
MODE
S/S
9 3 0 0 0 0
M
R
Q
Y
S
T
V
L
W
X
U
D
F
B
G
C
E
H
I
K
J
1
2
3
A
N
7
8
12
14
15
16
13
9
18
6
11
4
10
5
P
O
Main Unit
A. Display
1. Upper Display
2. Middle Display
3. Lower Display
4. Speed Icon
5. Clock Time Icon
6. Cadence Icon
7. Speed Scale Icon
8. Heart Rate Target Zone Icon
9. Auto Time Mode Icon
10. Heart Rate Icon
11. Used Memory Rate Icon
12. Wheel Circumferences Icon
13. Alarm Icon
14. Memory Record Icon
15. Heart Rate Scale
16. Speed Pace Arrow
17. Selected Functions Icon
B. Lap Button (LAP)
C. Set Button (SET/AT)
D. Light Button (LT)
E. Mode Button (MODE)
F. Start/Stop Button (S/S)
G. All Clear Button (AC)
H. Wrist Band
I. Back Cover
J. Contacts
K. Serial No.
Chest Belt Heart Rate Sensor
L. Transmitter
M. Electrode Belt
N. Attachment Belt
Mounting parts
O. Bracket
P. 3Dx Attachment
Q. Speed Sensor (short cord)
R. Cadence Sensor (long cord)
S. Wheel Magnet
T. Cadence Magnet
U. Rubber Pad
V. Nylon Tie
W. Sensor Screw (2 pieces)
X. Sensor Band B (2 pieces)
Y. Sensor Band A (Large-2 pieces)(Small-2 pieces)
Accessories
Carry Bag
Quick Chart
Quick Start Manual
User Manual
