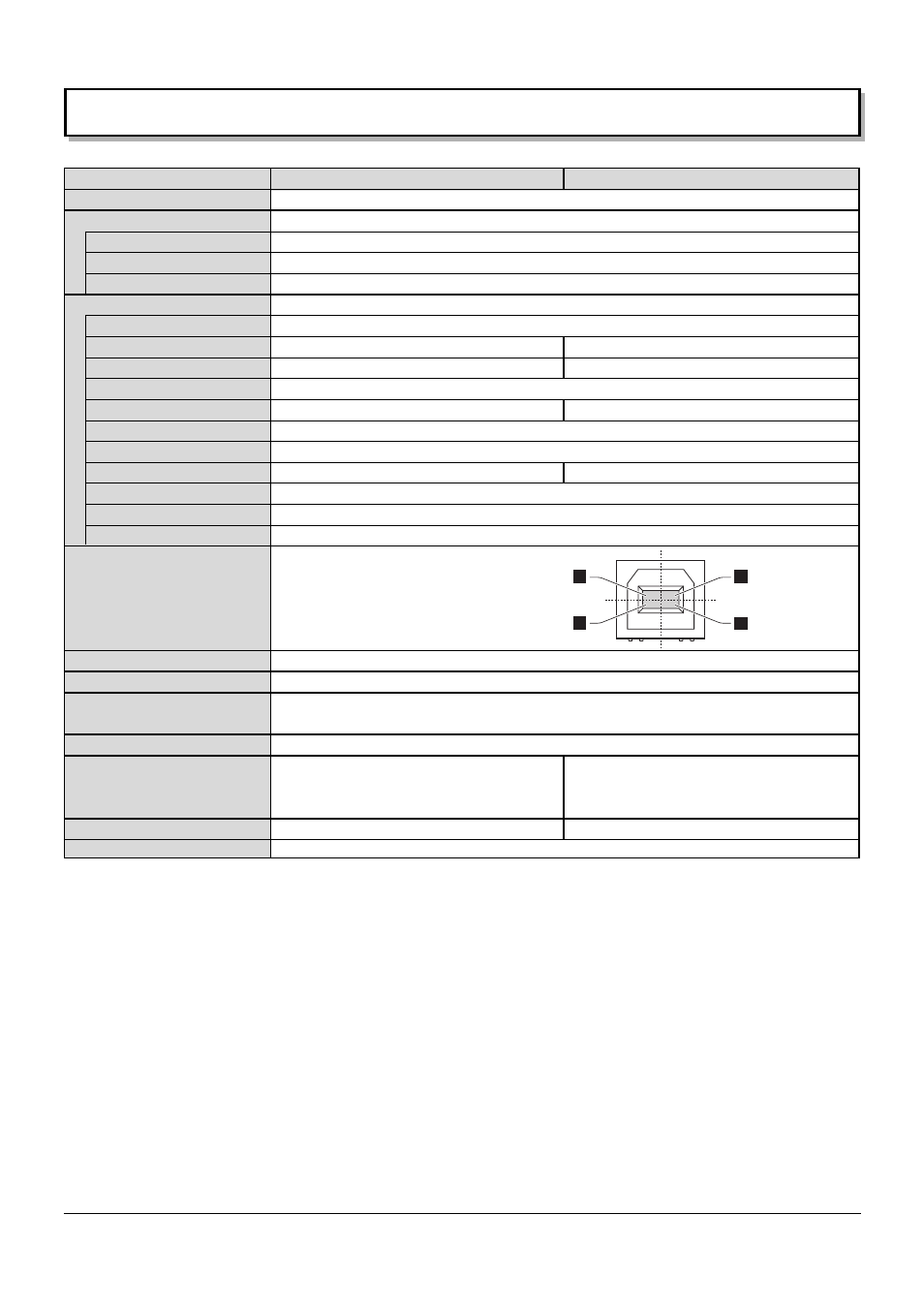

Specifications
Model Number
Type
Power Source
Voltage
Electric current
Supply system
Touch Panel
Detection system
Panel window (W × H)
Detection range (W × H)
Effective detection range
Resolution (W × H)
Detection pitch
Output system
Number of optic elements (W × H)
Optic element pitch (W × H)
Minimum stylus size (W × H)
Touch pen
USB Interface (USB 1.1)
Temperature
Humidity
Resistance to extraneous light
Panel form
External dimensions (W × H × T)
Weight
Extruded material
TY-TP42P8-S TY-TP50P8-S
Optic Touch Panel
DC + 5 V ± 10 %
DC + 5 V Max 400 mA
from USB Bus Power (DC + 5 V Max 500 mA)
Infrared obstruction detection system
945.2 mm × 531.2 mm (37.2 ″ × 20.9 ″) 1129.2 mm × 645.2 mm (44.4 ″ × 25.4 ″)
920 mm × 516 mm (36.2 ″ × 20.3 ″) 1104 mm × 620 mm (43.4 ″ × 24.4 ″)
Detection range + 1.0 mm (0.04 ″) at the top, bottom, left and right
1,841 Ч 1,033 ∗
1 2,209 Ч 1,241 ∗
1
2.0 mm × 2.0 mm (0.08 ″ × 0.08 ″)
Coordinate output
231 × 130 elements 277 × 156 elements
4.0 mm × 4.0 mm (0.16 ″ × 0.16 ″)
6.0 mm × 6.0 mm (0.24 ″ × 0.24 ″)
Infrared system
When operating: 0 °C (32°F) to 40°C (104°F) (temperature gradient 25°C (77°F)/hr max.) ∗
2
When operating: 20% to 80% (must be no condensation)
∗
2
Lateral light: 2,000 lux MIN +20% (angle of incidence: 20 °)
Frontal light: 10,000 lux MIN +20% (angle of incidence: 90 °)
Flat panel (Flat type)
1,073 mm × 659 mm × 69 mm 1,257 mm × 773 mm × 69 mm
(42.2 ″ Ч 25.9 ″ Ч 2.7 ″) (49.5 ″ Ч 30.4 ″ Ч 2.7 ″)
(Excluding mounting brackets) (Excluding mounting brackets)
approx. 5.0 kg (11 lbs) Excluding mounting brackets approx. 5.8 kg (12.7 lbs) Excluding mounting brackets
Aluminum
Notes:
∗1 When it is used with exclusive driver software.
∗2 This applies to the touch panel alone. When the panel is attached to a device such as a PDP, follow the
environmental conditions for the device being used.
Terminal No. and Signal name
(TYPE B)
USB cable length: 2 m (6.56 ft)
1 2
4 3
1 Vcc -DATA 2
+DATA 3 4 GND
