Panasonic MC-UG327 User Manual
Page 46

- 46 -

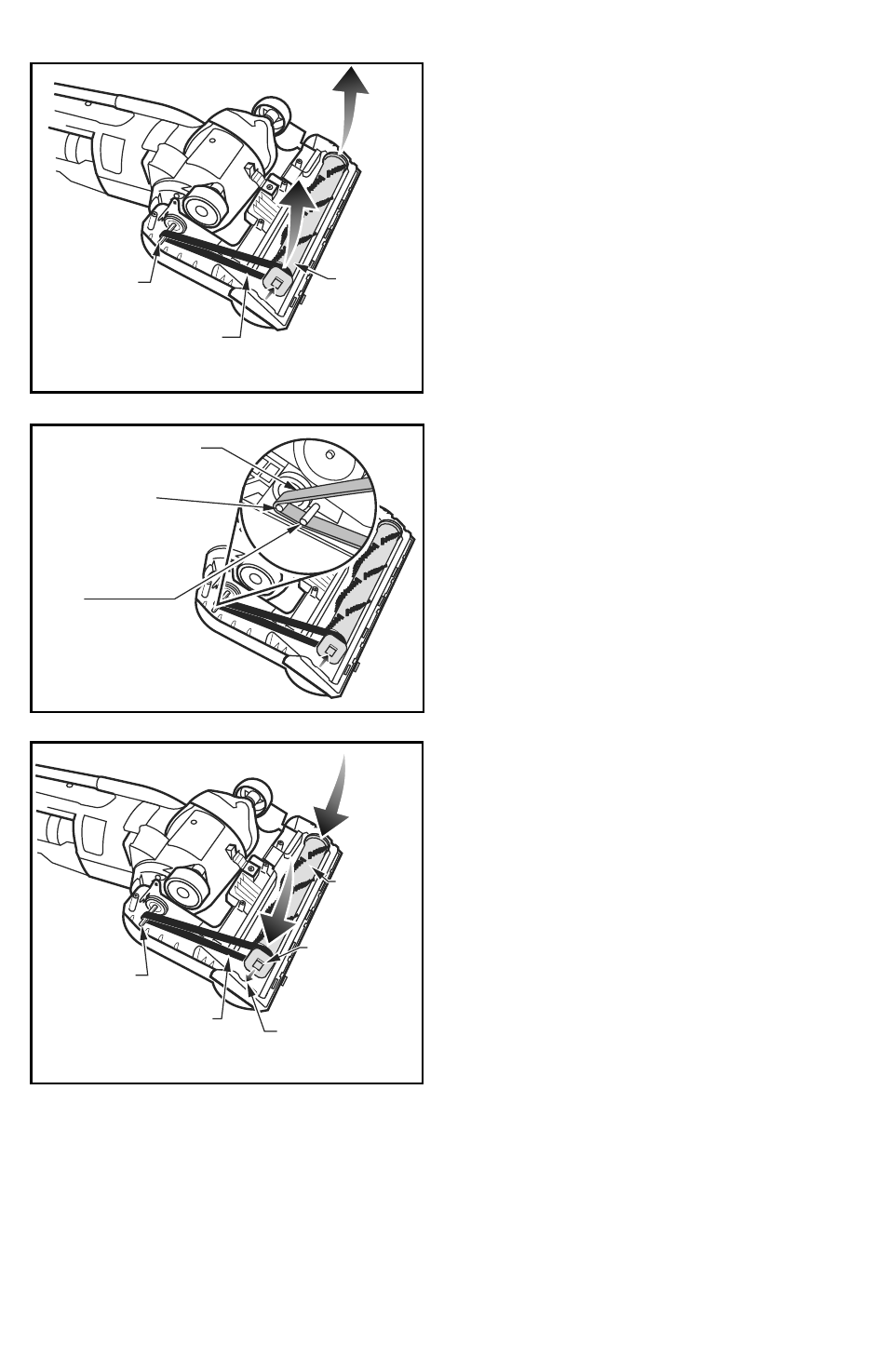

➢ Lay unit on floor bottom up with
nozzle flat.
➢ Remove agitator by carefully lifting
out.
➢ Remove worn or broken belt.
➢ Clean agitator and the end caps
(see CLEANING AGITATOR, p. 50).
Belt
Correa
Courroie
Motor Shaft
Arbre d’entrainement
du moteur
Eje del motor
Agitator
Agitateur
Agitador
➢ Reinstall agitator back into nozzle
by placing end caps into grooves.
➢ After reinstalling the agitator, turn it
by hand to make sure that belt is
not twisted or pinched and that all
rotating parts turn freely.
Belt
Correa
Courroie
Motor Shaft
Arbre d’entrainement
du moteur
Eje del motor
End Cap
Tapa del
extremo
Bouchon
Agitator
Agitateur
Agitador
Groove
Rainure
Ranura
➢ Loop new belt (part number
MC-V390B, Type UB12) around
motor shaft and agitator belt
groove. See illustration for correct
belt routing.
Carpet/Bare
Floor Selector
Shaft
tapis/plancher
Selector alfombra-piso
Arbre d'entraînement
du sélecteur
Motor Shaft
Arbre du moteur
Eje del motor
Belt
Courroie
Correa
