FV-05VFL2
FV-08VFL2
FV-11VFL2

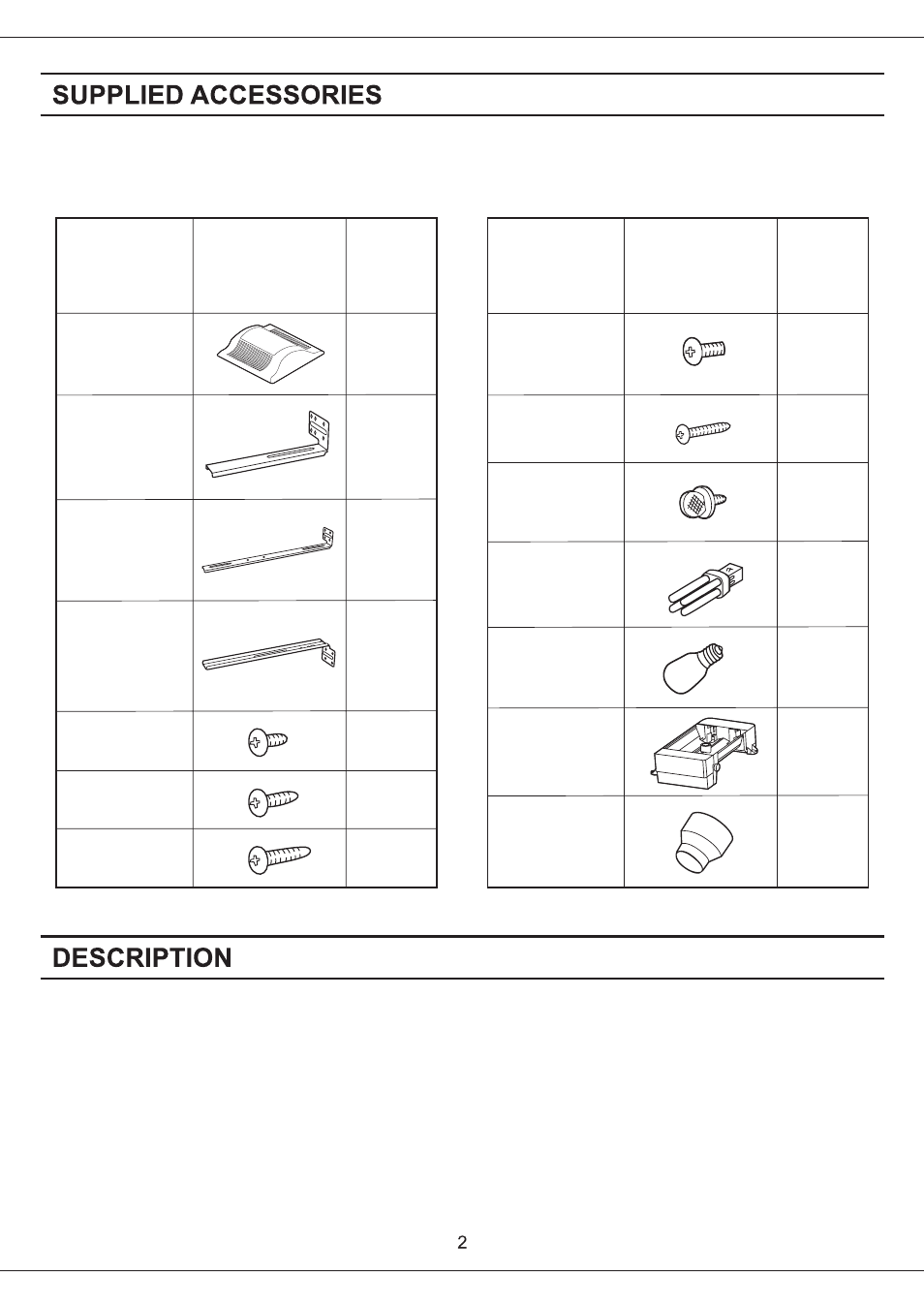

Quantity Appearance Part name
Screw
M4X8
I
2
1 Grille
Suspension
bracket
I
Suspension
bracket
II
1
1
2
Screw
M4X12
II
Screw
M4X16
III
2
Machine screw
M4X8
1
Quantity Appearance Part name
2
1
1
18W
Fluorescent
lamp
4W
Incandescent
lamp
Light unit
These Panasonic ceiling mount ventilating fan models use a sirocco fan with dolphin-shaped blades driven by
a capacitor motor.
The motor is designed to have an extended service life with reduced energy consumption.
It also incorporates a thermal-cutoff for safety.The grille can be quickly detached from the main unit. A damper
for preventing air counterflow is provided. The blower uses a high-capacity sirocco fan developed to reduce the
noise level.
The light unit is an energy-saving, lighting device which uses two 18W fluorescent lamps and produces almost
the same illumination as a standard 100W incandescent lamp.
1
Suspension
bracket
III
1
8
Thumb screw
Long screw
M4X30
3 inch adaptor
connector
(optional part)
1
