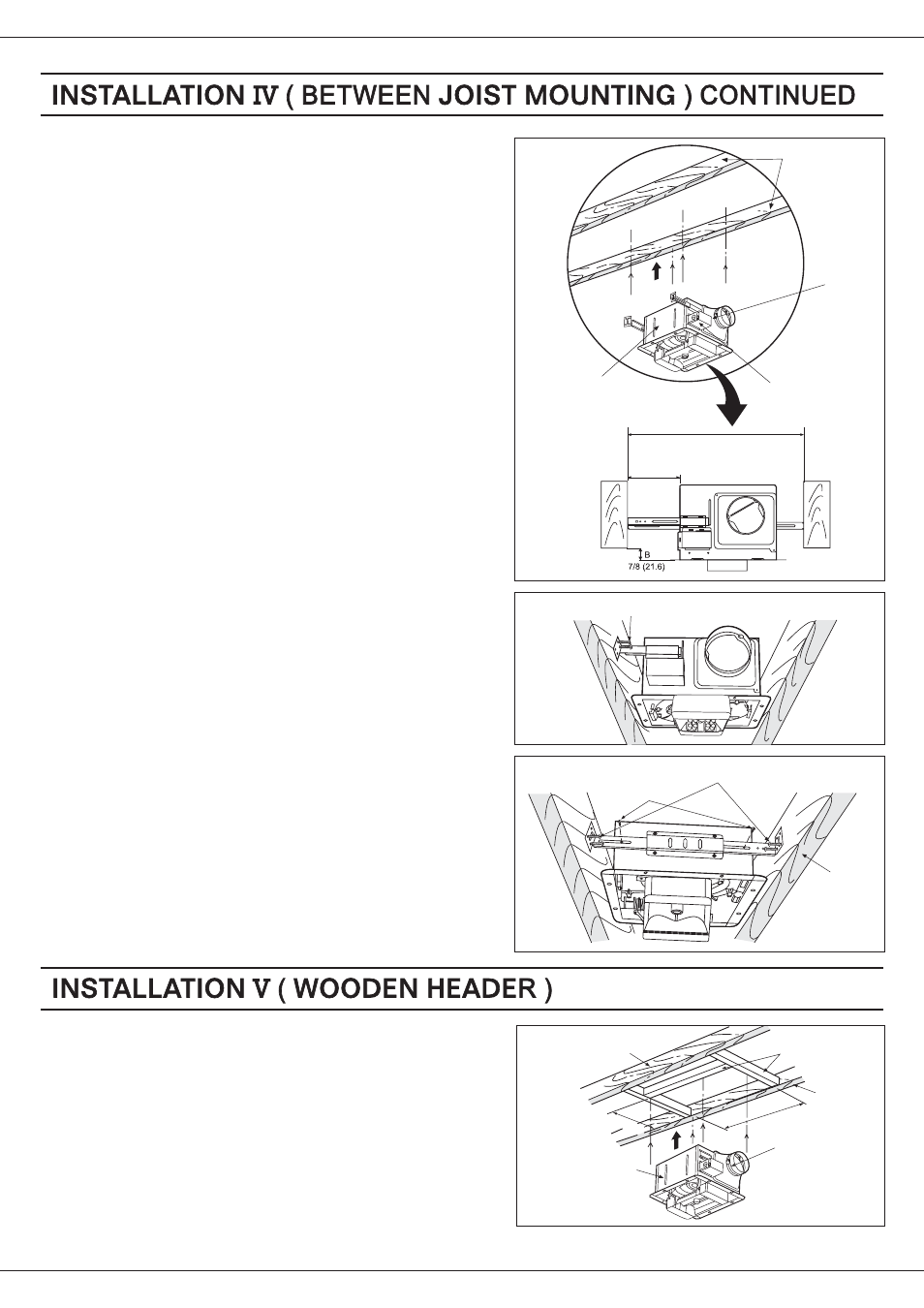

Panasonic FV-05VFL2 - Manual (Page 11)

(275)
(375)
10
7/8 14
3/4
Adaptor
Ventilating fan
Joist
Header Joist
2. Install header between joists by using nails or screws.
3. Install the ventilating fan and secure it by using long
screws(M4x30) (Fig.20, Fig.21)
1. Before installation, secure the to by
using thumb screw (Fig.13 of page 10) Secure the
lighting unit to fan body (refering to Fig.6 of page 8).
fan body adaptor
.
11
3. Insert the fan body between joists.
Make sure the fan body is level and square
(perpendicular) with the joists.(Fig.17)
Keep the distance B (7/8 inch, 21.6mm) for the
thickness of ceiling board.
4. Secure the suspension bracket to joists by using long
screws(M4X30) (Fig.18, Fig.19)
5. Secure the suspension bracket to fan body by using
screw (M4X12) (Fig.19)
II
6. Follow steps 5 to 11 of installation (page 7,page 8)
to complete the installation work.
I
Fig.17 inches mm ( )
Junction box
Ventilating fan
Joists
Adaptor
Fig.18
Fig.19
inches (mm)
Fig.20
A
13 1/4~15 3/4 ( 336~400 )
16 1/2~18 3/4 ( 419~480 )
Joist
4-Long screws(M4X30)
2-Screw
(M4X12) II
3~5 (76~126)
5 4/5~7 4/5(148~198)
2-Long screws(M4X30)
