APOLLO 120/150 III 5-68
8. Connect the 40-pin end of the CD-ROM cable to the
motherboard IDE 2 connector.
9. There is a 4-pin CD audio-in cable to be plugged to J2 on
the motherboard. Connect the other end of the CD-Audio
cable (6) to the 4-pin black pin connector on the CD-ROM
board.
10. Connect the other end of the FDD cable to the FDD1 on
the motherboard.
11. Fix the whole unit to the chassis and fix them together
with 3 FMS 3*5 screws.
RISER B
ºП ¾ч ªю ¥у
CDROM/FDD ²Õ «~
slim CDROM
CDROM ¶¡
¹j¬W 2.5mm
MODULE CDROM-FDD
CDROM CABLE 150mm
SOUND CABLE P/H 2.54 120mm
slim FDD
FDD ³n±Æ
26pin 130mm
ºП ¾ч ¬[
F
IGURE

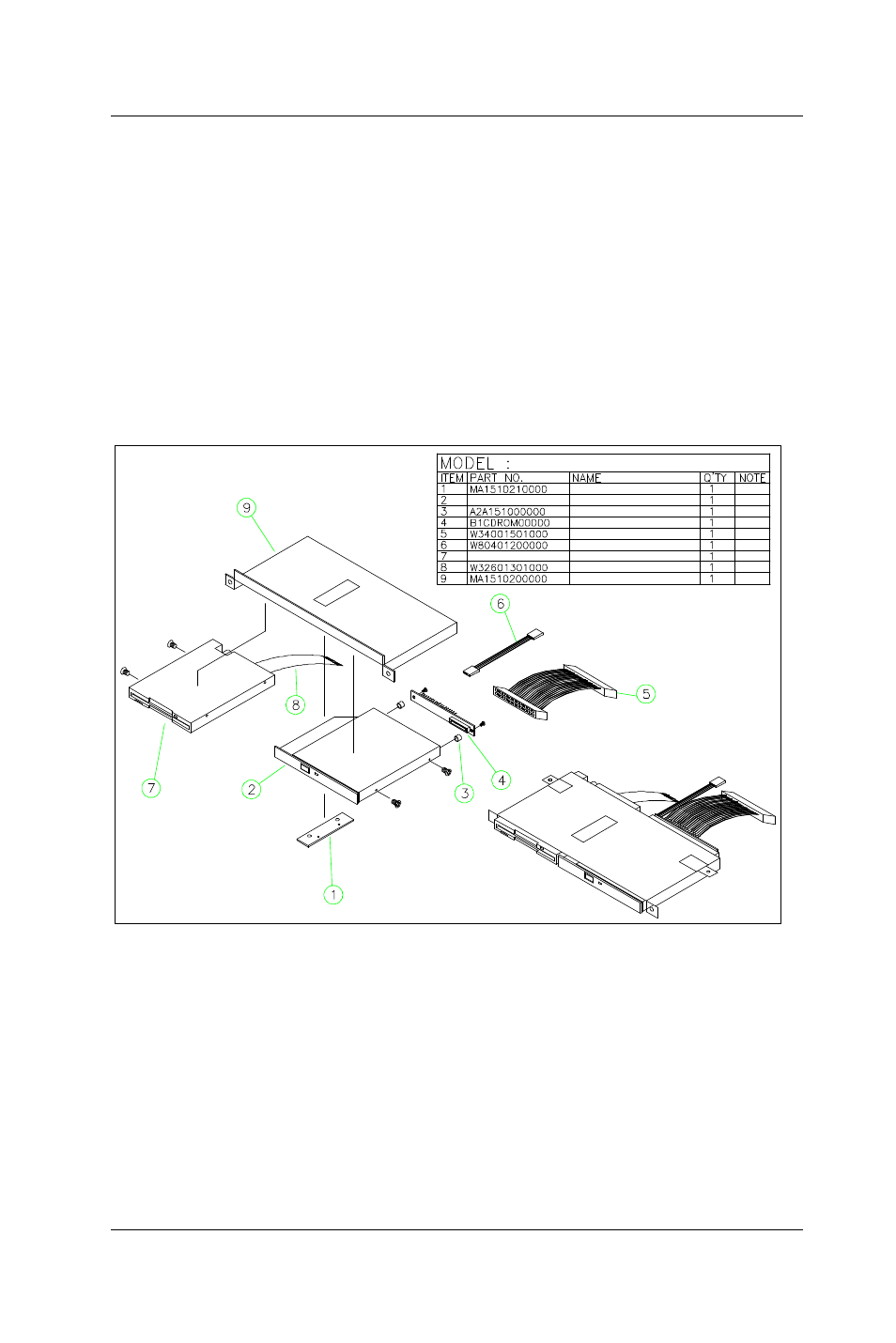

5-10: CD-ROM/FDD
MODULE ASSEMBLY
