APOLLO 120/150 III
6-88

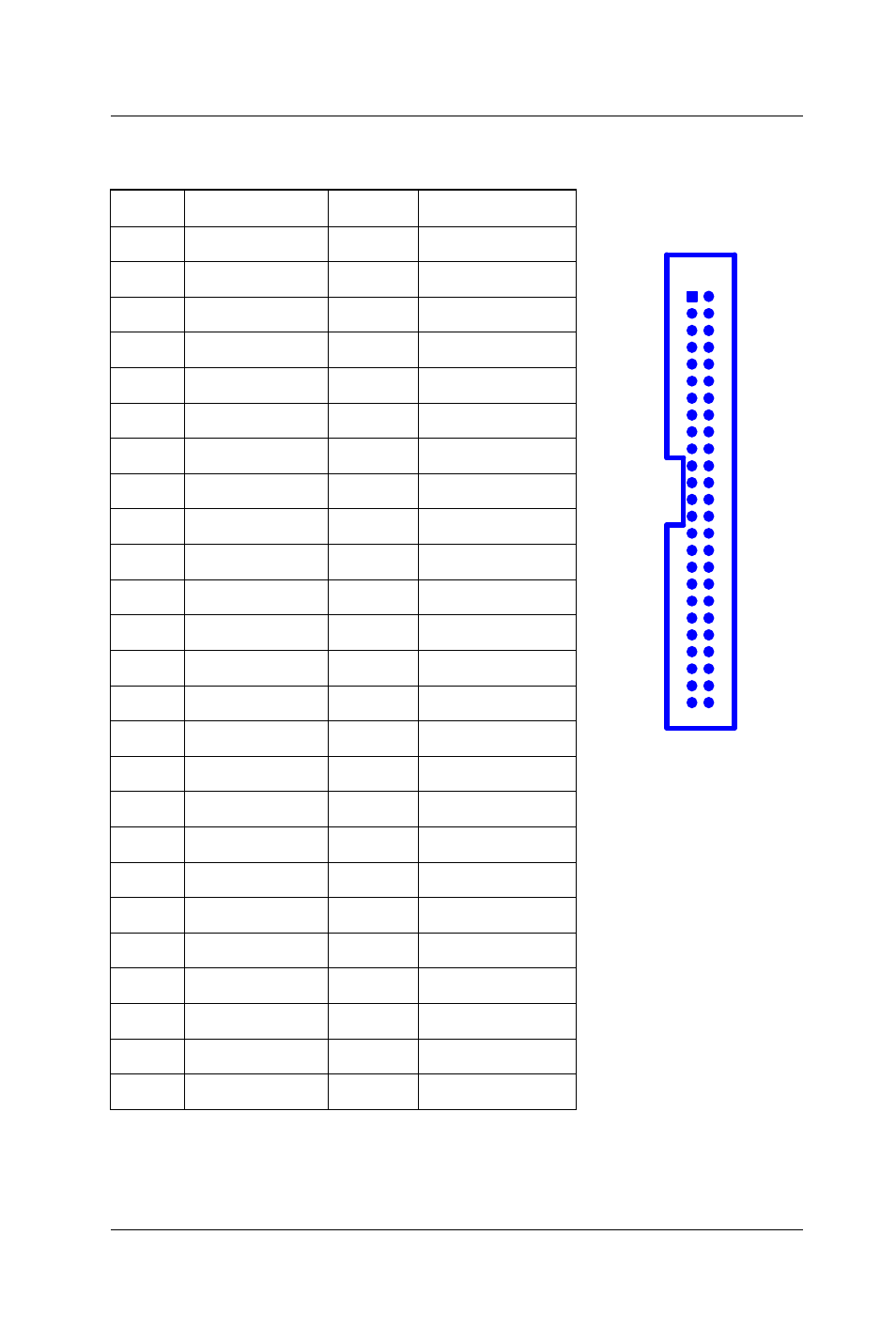

6.1.5.8. LCD1: LCD Connector
Pin # Signal
Pin # Signal
1 5V
2 5V
3 GND
4 GND
5 3.3V
6 3.3V
7 VBCAD
8 VBCTL0
9 P00 (B0)
10 P01 (B1)
11 P02 (B2)
12 P03 (B3)
13 P04 (B4)
14 P05 (B5)
15 P06 (B6)
16 P07 (B7)
17 P08 (G0)
18 P09 (G1)
19 P10 (G2)
20 P11 (G3)
21 P12 (G4)
22 P13 (G5)
23 P14 (G6)
24 P15 (G7)
25 P16 (R0)
26 P17 (R1)
27 P18 (R2)
28 P19 (R3)
29 P20 (R4)
30 P21 (R5)
31 P22 (R6)
32 P23 (R7)
33 GND
34 GND
35 SHFCLK
36 FLM
37 DE / M
38 LP
39 GND
40 GND
41 VBCTL1
42 VBCLK
43 GND
44 SSYNC
45 GND
46 VBHCLK
47 ENVB
48 PCIRST#
49 ENEXTPLK
50 INTA#
1
49
2
50
