ENGLISH

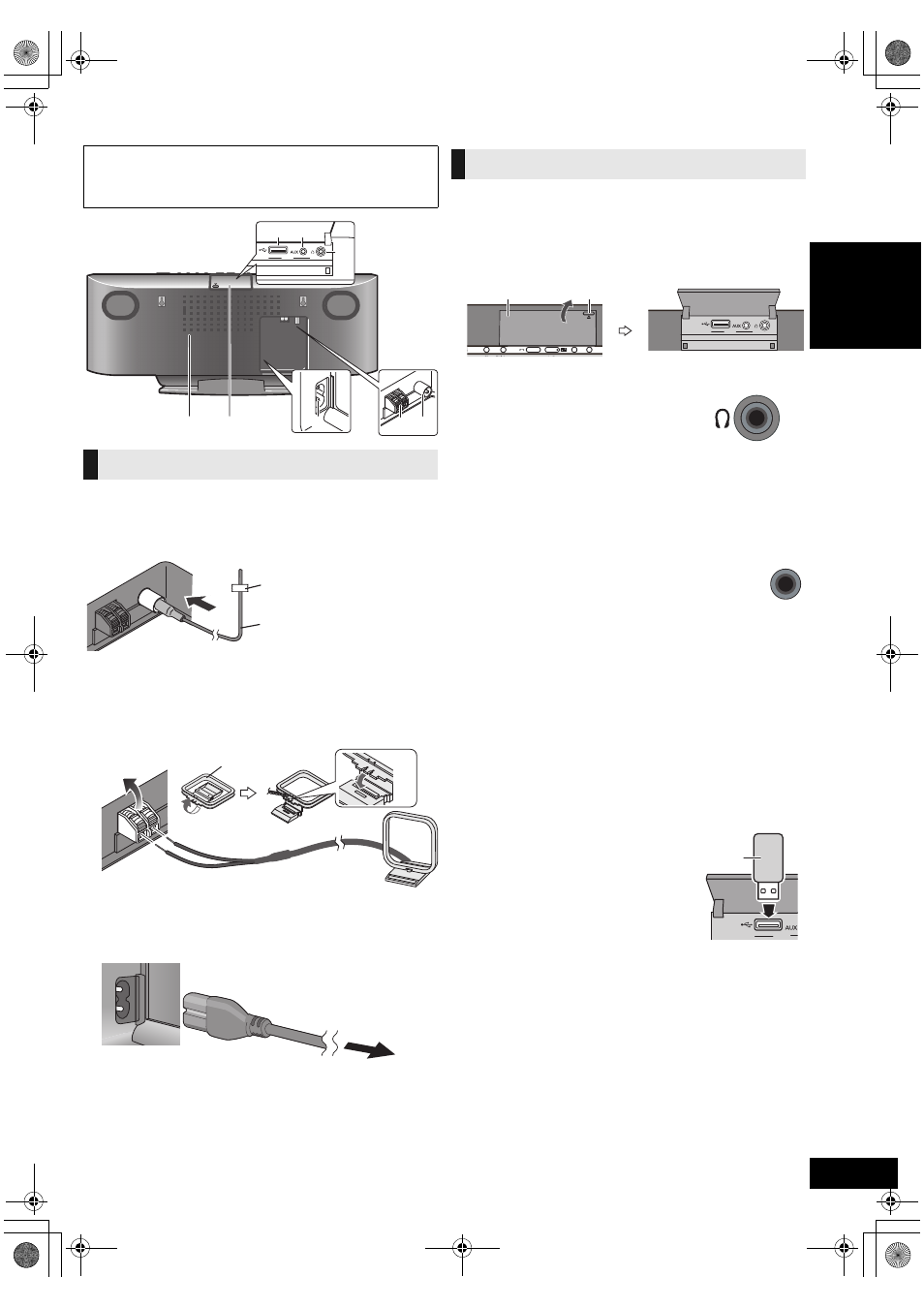

Connections
1 Connect the FM indoor antenna.
≥ Tape the antenna to a wall or column, in a position with the
least amount of interference.
2 Connect the AM loop antenna.
≥ Keep the loop antenna cord away from other wires and
cords.
AStand the antenna up on its base until it clicks.
BAM loop antenna
3 Connect the AC mains lead.
Connect the AC mains lead after all other connections
are complete.
Turn the unit on after a few seconds.
Open the EXT-IN AUX/Headphone/USB cover to connect
headphones, USB devices or external music devices (e.g. MP3
player).
Push the projecting part to open the cover A.
Top View
∫ Connect the headphones (not supplied)
≥ Listening at full volume for long periods may damage the user’s ears.
≥ To prevent hearing damage, avoid listening for prolonged periods of time.
Excessive sound pressure from earphones and headphones can cause
hearing loss.
∫ Connect an external music device (for AUX
mode)
You can select the sound input level of the external device.
≥ Switch the equalizer off or turn the volume of the external device down to
reduce the input signal. High level of input signal will distort the sound.
≥ For details, refer to the instruction manual of the other equipment.
≥ Cables and devices are not supplied.
∫ Connect the USB device (not supplied)
∫ Notes on speakers
≥ These speakers do not have magnetic shielding. Do not place them near a
television, personal computer or other devices easily influenced by
magnetism.
Basic Connections
   

 
ユヹヵノリワ
Back View
Exhaust holes
Adhesive tape
FM indoor antenna
 
To household mains socket
Power consumption in standby
mode:
Approx. 0.2 W
Additional Connections
Reduce the volume level and connect the
headphones.
Plug type: ‰3.5 mm stereo B
1 Plug the audio cable (not supplied) into
the EXT-IN AUX jack C.
Plug type: ‰3.5 mm stereo
2 Press [EXT-IN, RADIO] repeatedly to
select “AUX” and start playback on the
connected device.
[HC55] 1 Press [SOUND] repeatedly to select “INPUT
LEVEL”.
2 Press [ 2, 1] to select “HIGH” or “NORMAL”.
[HC35] Press [INPUT LEVEL] repeatedly to select “HIGH” or
“NORMAL”.
1 Reduce the volume level and plug the
USB device A into the USB terminal
D.
2 Press [EXT-IN, RADIO] repeatedly to
select “USB” and start playback.
(> 16)
ユヹヵノリワ
Projecting part
EXT-IN AUX
Headphone/USB cover
AUX
ユヹヵノリワ

