26-Port Dual Web Rack Switch

24

APPENDIX A

RJ-45 Pin Specification

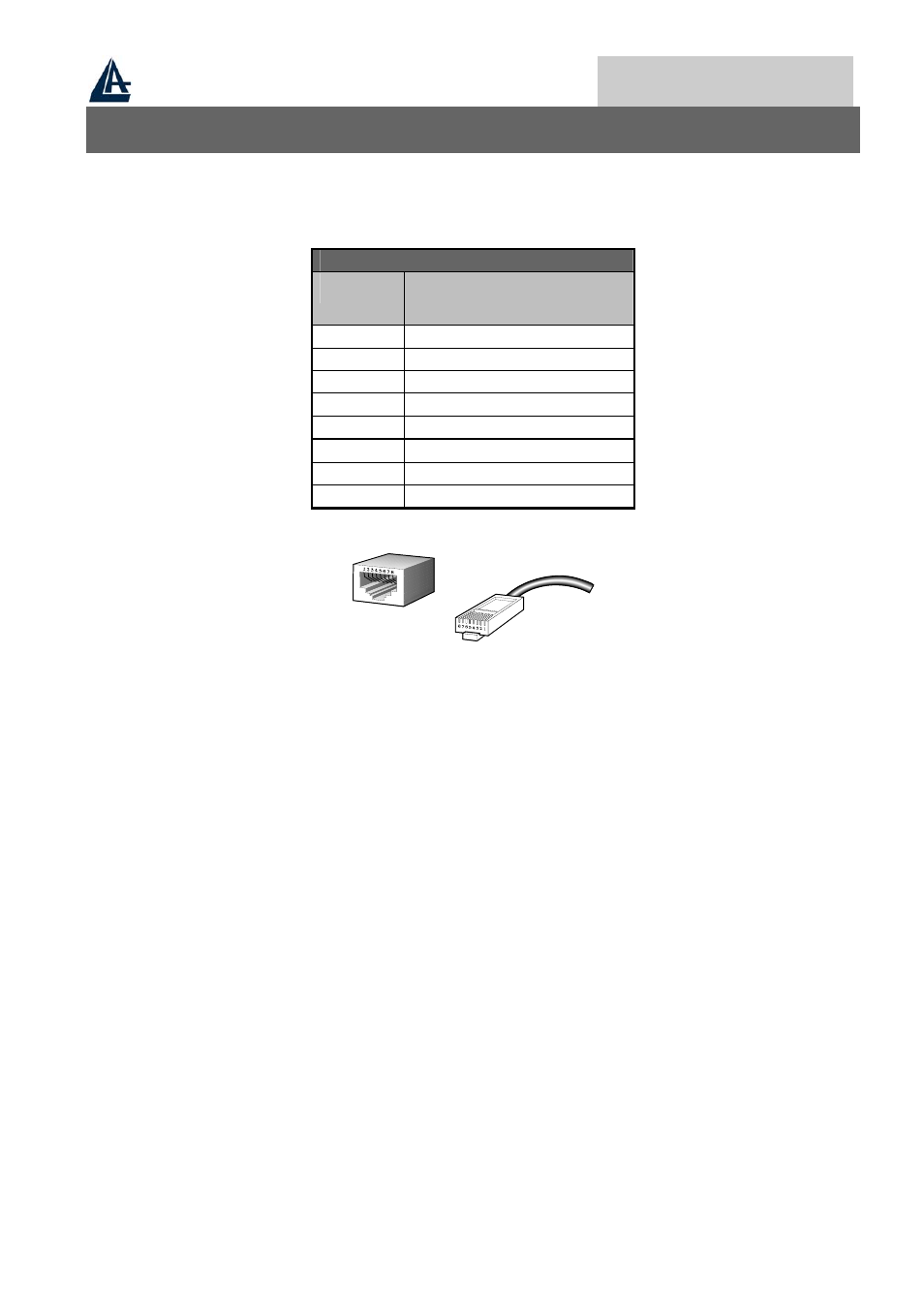

The following diagram and tables show the standard RJ-45 receptacle/connector and their pin

RJ-45 Connector pin assignment

Contact

Media Direct Interface

Signal

1

TX + (tx)

2

TX - (tx)

3

Rx + (rx)

4 Not

used

5 Not

used

6

Rx - (rx)

7 Not

used

8 Not

used

The standard cable, RJ-45 pin assignment.

The standard RJ-45 receptacle/connector.
