When add a new Vlan, the members of default Vlan 1 are removed automatically.
Therefore, packets can only transmit among the member ports of new Vlan.
Packets can not fordward among the ports which are not included in the new vlan.
Trunk Setting
The Trunk function enables to cascade two devices with a double times bandwidth (up to 4000Mbps in
full duplex mode).

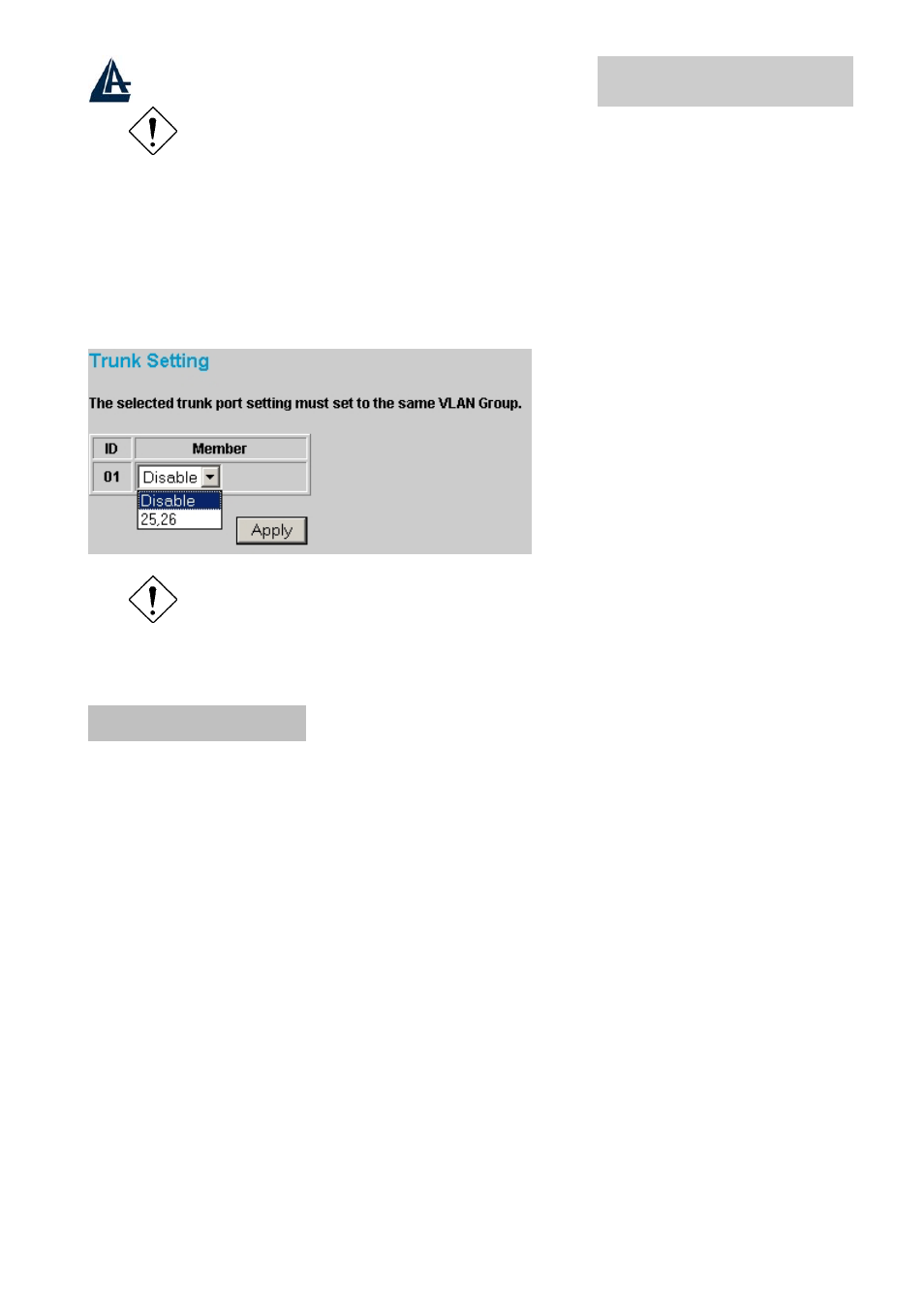

There is only one selection for the trunk setting, port 25 and port 26, or select “disable” for closing this
function.
Be sure that the selected trunk setting port must connect to the device with a same
VLAN group.
4.3 Maintenence
Status
Click on the “Status” to present the device status on this screen, it will show the System Status, Port
Status, VLAN Status and Trunk Status .
Press “Refresh” when you need to renew the posted information.
Statistics
The Statistic Menu screen will show the status of each port packet count.
