10.4 Performance
The following tables show the maximal theoretically labels per minute rate. Tolerances in
product speed, label and product dimensions reduce the label rate. The tables are valid for
direct dispensing (without applicator and printer). For critical applications, performance test
should be done first. The charts are valid for software version V5.x.

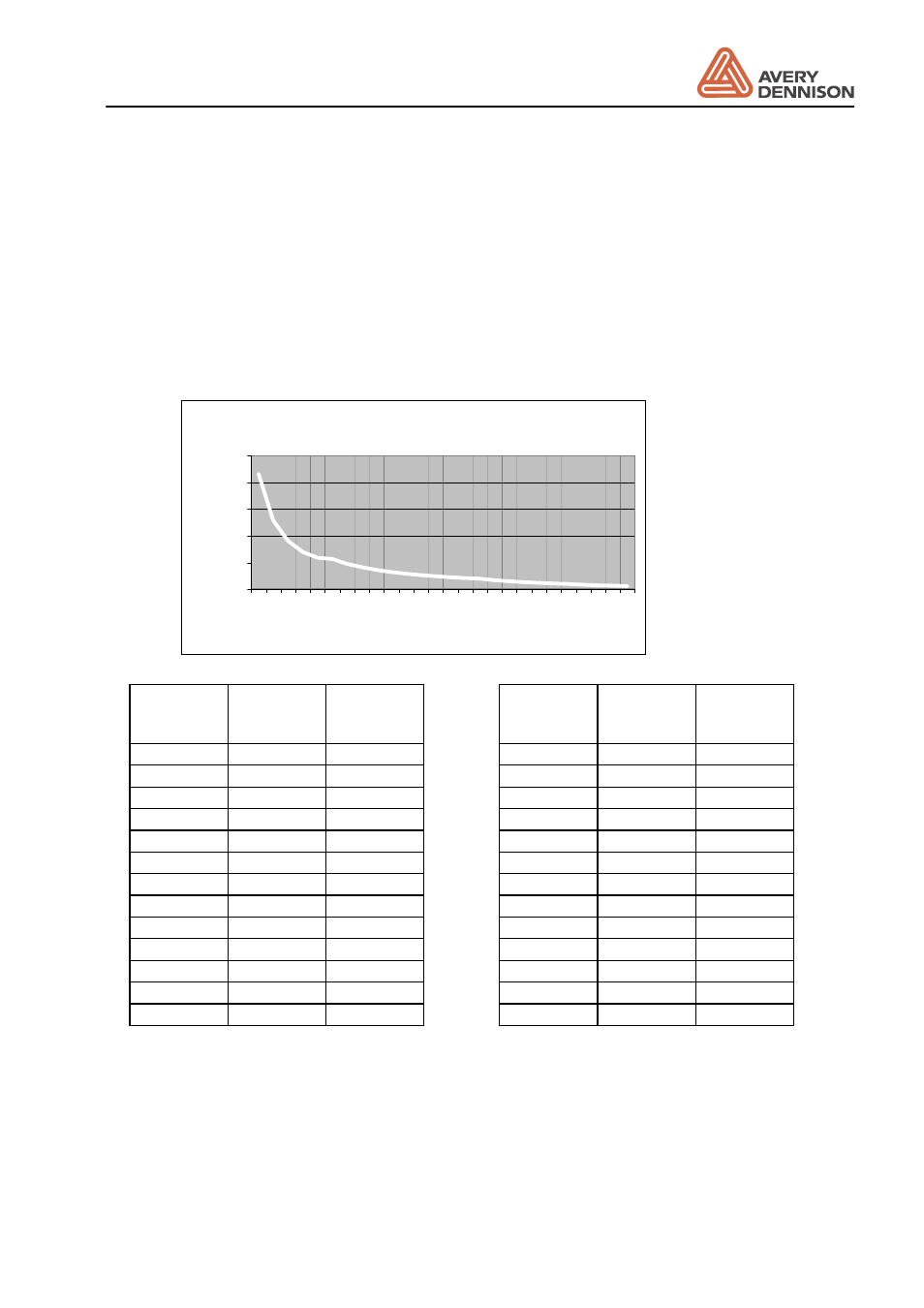

10.4.1 Labels per minute in relation to different label pitches
Labels / minute at dispensing speed of 30 m/min
0
500
1000
1500
2000
2500
10 30 48 60 80
100 12
0
140 17
5
225 275 35
0
450
label pitch (mm)
Label
s
/
minute
Label Pitch
(mm)
Dispensing
Speed
(m/min)
Labels per
minute
10 30 2160
20 30 1290
30 30 906
40 30 697
48 30 588
50 30 566
60 30 476
70 30 411
80 30 361
90 30 322
100 30 291
110 30 265
120 30 244
Label Pitch
(mm)
Dispensing
Speed
(m/min)
Labels per
minute
130 30 225
140 30 210
150 30 196
175 30 168
200 30 147
225 30 131
250 30 118
275 30 107
300 30 99
350 30 85
400 30 74
450 30 66
500 30 59
