NV3000/5000/6000(EXP)/7000H User Manual

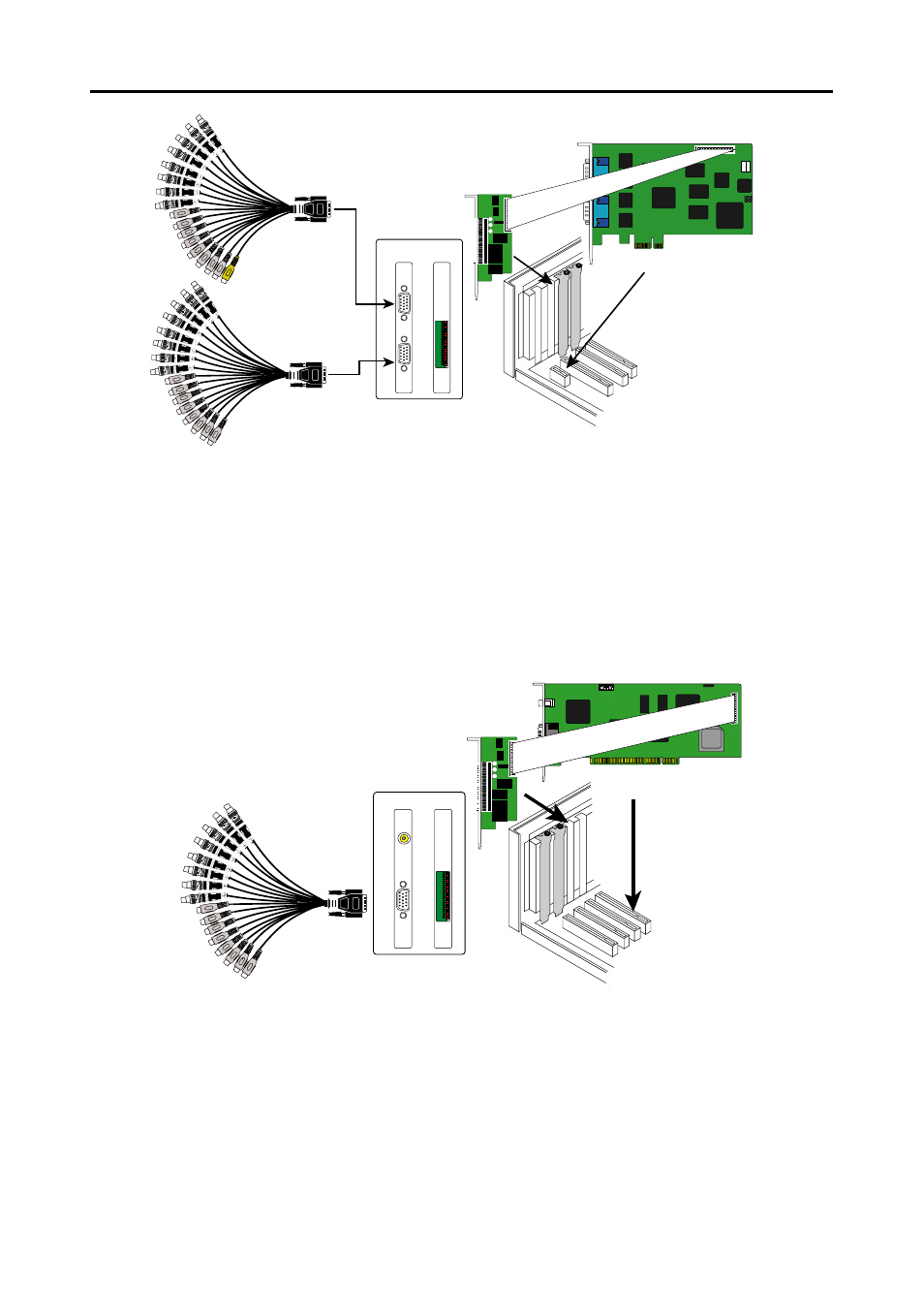

NV6000 Express card

I/O card

NV 6000
Express

I/O card

AV connection cable

2.7 NV7000H Hardware Installation

The supplied AV connection cable provides up to 16 cameras and 8 audio inputs.

2.7.1

Installing (1) NV7000H and I/O card

1. Remove the PC case cover.
2. Remove 2 brackets that cover the PCI slots. Save the screws.
3. Connect the NV7000H card and I/O card with the connection cable.
4. Press the cards into the PCI slot firmly.
5. Secure the card with the screws.
6. Connect the supplied AV connection cable to the D-type AV IN port.

NV7000H card

I/O card

TV OUT

NV7000H

AV connection cable

I/O card

2.7.2 Installing

(2)

NV7000H and (2) I/O cards

1. Remove the PC case cover.
2. Remove 4 brackets that cover the PCI slots. Save the screws.
3. Connect the (2) NV7000H cards with the supplied 20cm video signal line.
4. Press the cards into the PCI slots firmly.
5. Secure the cards with the screws.
