Sony MDS-JA3ES - Manual

1/4 inch = 1 inch Scale 4:1
MDS-JA3ES
DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT: POWER
REQUIREMENTS:
POWER
CONSUMPTION:
Contractor's
Notes:

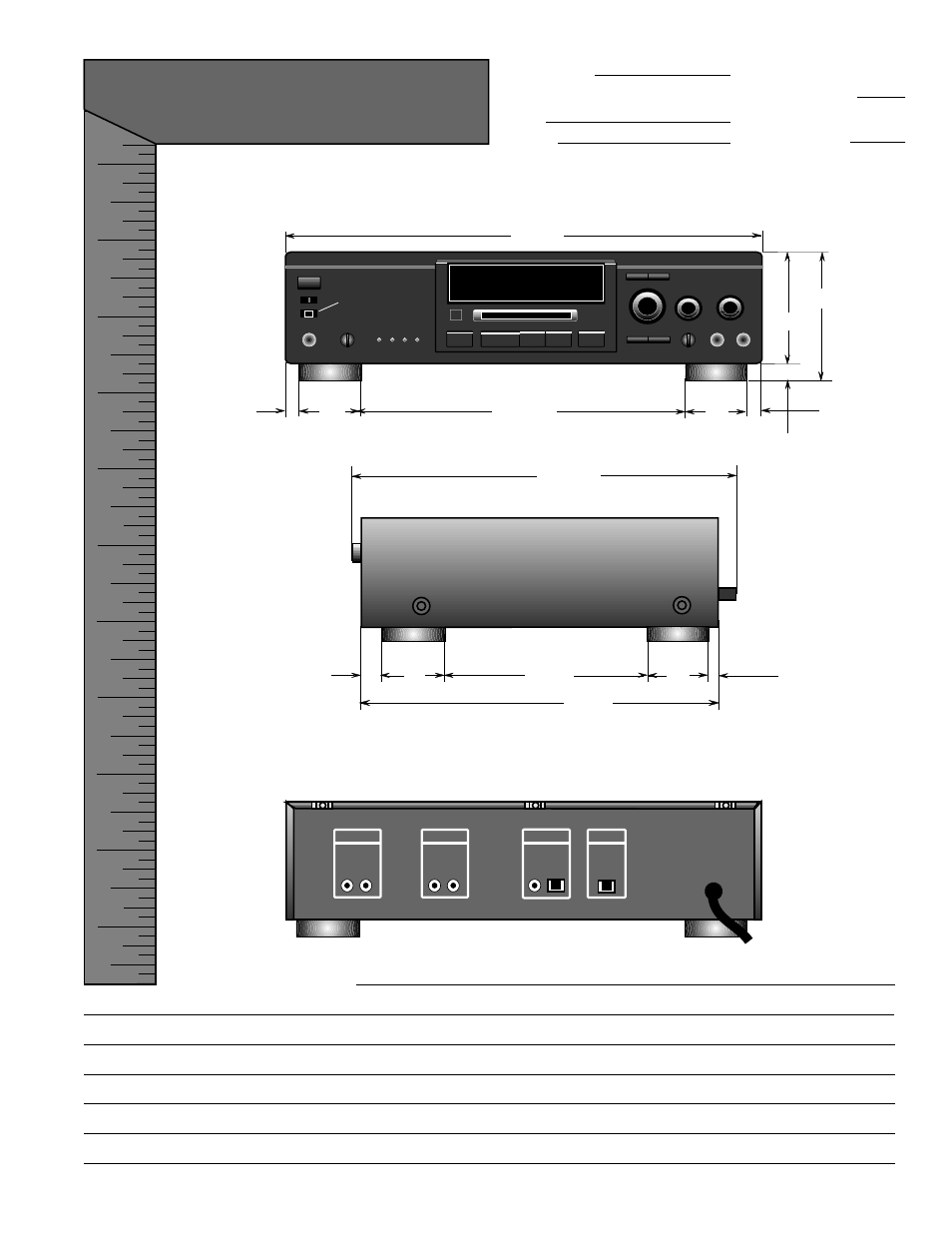

FRONT VIEW
SIDE VIEW
Mini Disc
Player/Recorder
16 7/8" X 4 7/8" X 13
12 lbs 8oz
120V
60
20
Watts
2 " 12 1/16" 2 "
16 7/8"
BACK VIEW
2 " 7 1/4" 2 "
AC Cord
13 3/4"
1/2"
5/8"
4 7/8"
4 1/4"
5/16"
1/2"
1"
REMOTE
SENSOR
12 3/4"
M
i
n
i
D
i
s
c
R
MD
LINE OUT
L R
LINE OUT
L R
DIGITAL
OPT OPT
DIGITAL
COAX
REMOTE
SENSOR
