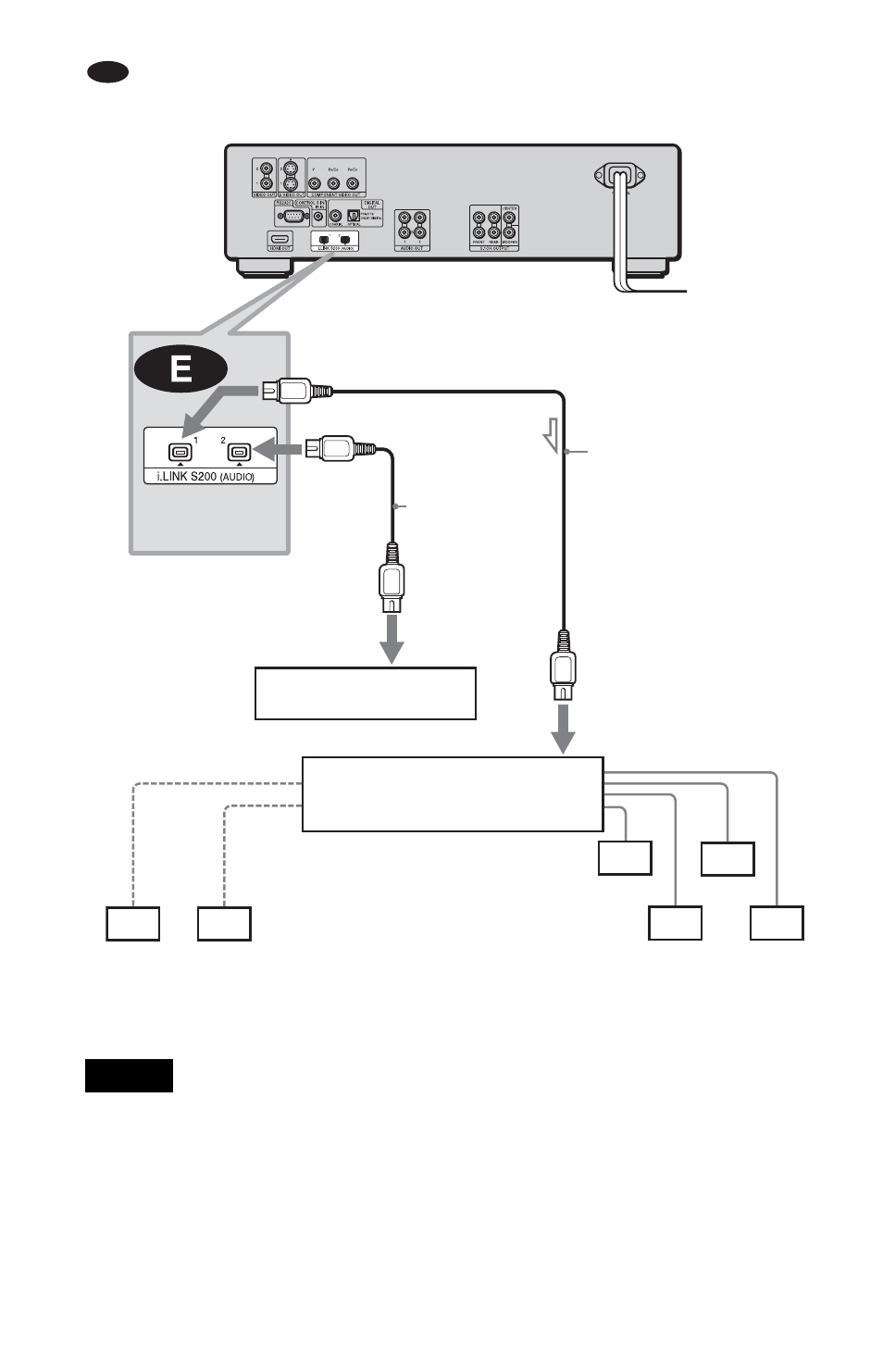

: Connecting a receiver and a player via this player (DVP-NS9100ES)
Note
When the player is turned off or when the i.LINK
indicator lights off, audio signals are not output
from SCD-XA9000ES to STR-DA7100ES.
E-3
CD/DVD player
l: Signal flow
Front (R) Front (L)
Rear (R) Subwoofer Center
[Speakers]
[Speakers]
Rear (L)
to i.LINK S200
(AUDIO) jack
STR-DA7100ES
to i.LINK S200
(AUDIO)
i.LINK connecting
cord (not supplied)
Receiver
to i.LINK S200
AUDIO OUT jack
i.LINK connecting
cord (supplied with
SCD-XA9000ES)
Player
SCD-XA9000ES
