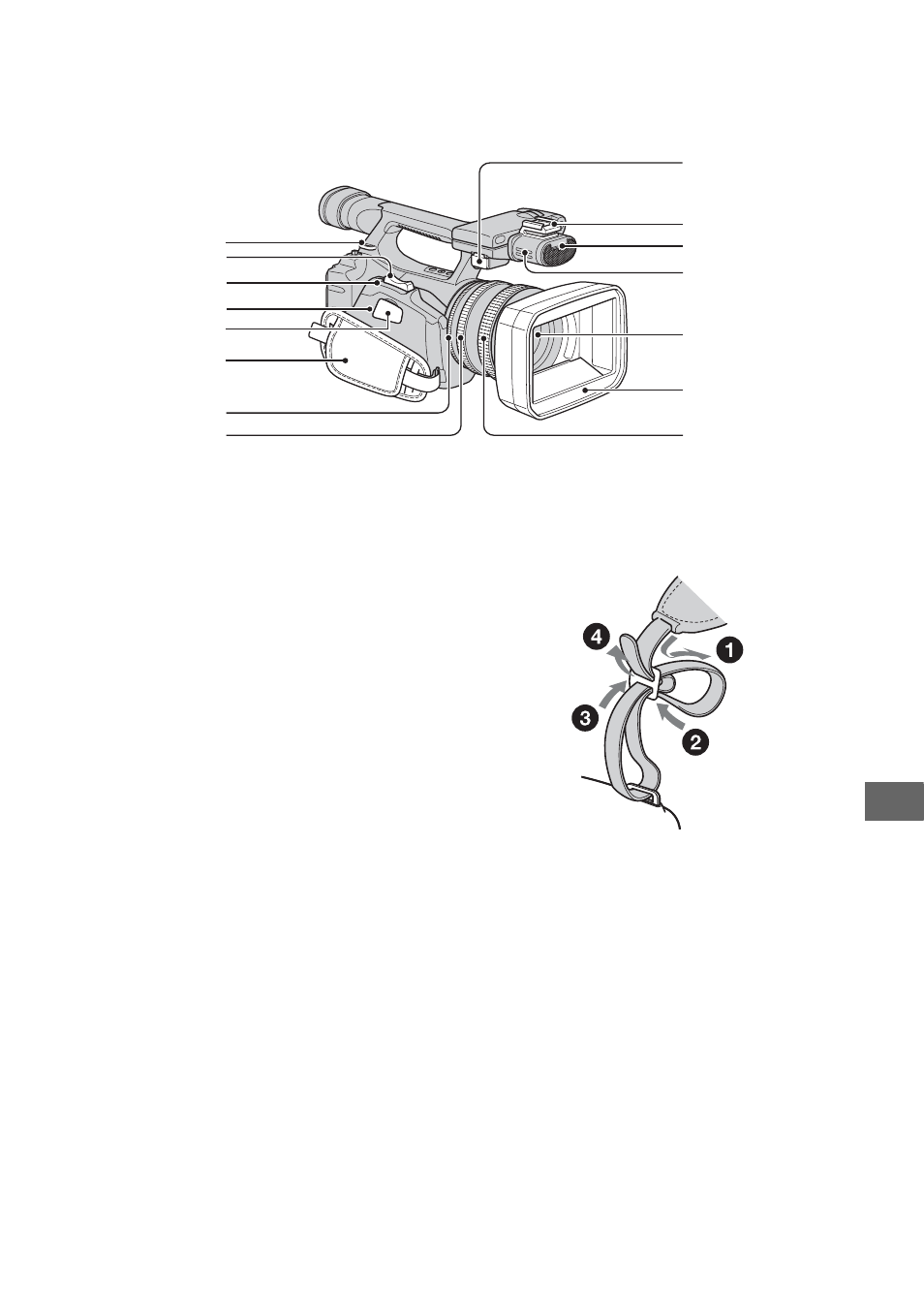

A Hook for the shoulder strap (125)
B Zoom lever (31)
C PHOTO/EXPANDED FOCUS button
(30, 33)
D Access lamp (27)
E “Memory Stick Duo” slot (26)
F Grip belt (21)
G Iris ring (33)
H Zoom ring (31)
I MIC jack
When a microphone is connected, it is
dominantly used for sound recording
over the internal microphone.
J Accessory shoe
K Recording lamp (front) (28)
The recording lamp flashes if the
remaining tape or battery is low.
L Microphone (42)
M Lens
N Lens hood with lens cover (17)
O Focus ring (32)
To attach the shoulder strap
Attach the shoulder strap (optional) to the
hooks for the shoulder strap.
