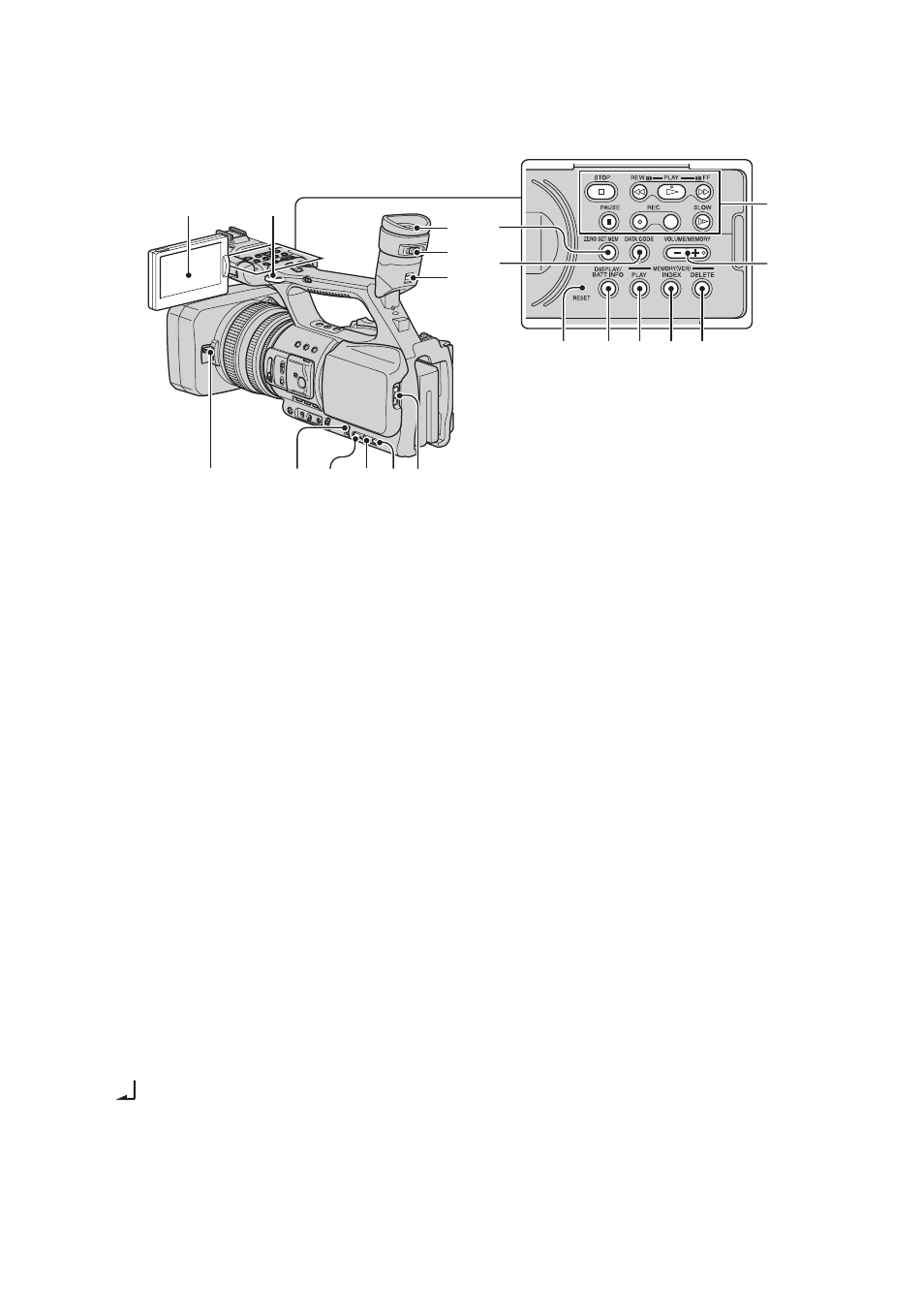

A LCD screen (22)
B Hook for the shoulder strap (125)
C ZERO SET MEM button (54)
D DATA CODE button (52)
E Video control buttons (STOP/REW/
PLAY*/FF/PAUSE/REC/SLOW) (49)
F VOLUME/MEMORY button* (50)
G MEMORY/DELETE button (50)
H MEMORY/INDEX button* (50)
I MEMORY/PLAY button (50)
J DISPLAY/BATT INFO button (52, 53)
K RESET button
If you press the RESET button, all
settings including the clock setting
(except the Picture profile and Camera
profile settings) return to the default.
L Viewfinder (22)
M Viewfinder lens adjustment lever (22)
N Viewfinder release lever (118)
O
OPEN/EJECT lever (26)
P STATUS CHECK button (53)
Q PICTURE PROFILE button (37)
R MENU button (62)
S SEL/PUSH EXEC dial (24)
T Lens cover lever (17)
* Each of the PLAY button, VOLUME/
MEMORY button and MEMORY/INDEX
button has a raised tactile dot. (The VOLUME/
MEMORY button has it on the + side.) Use it to
identify the location of the buttons.
