7 GB
INPUT
A
INPUT
DC IN 9V
!
L
R
B
NOISE FILTER
ON
OFF
CHANNEL
1
2
3

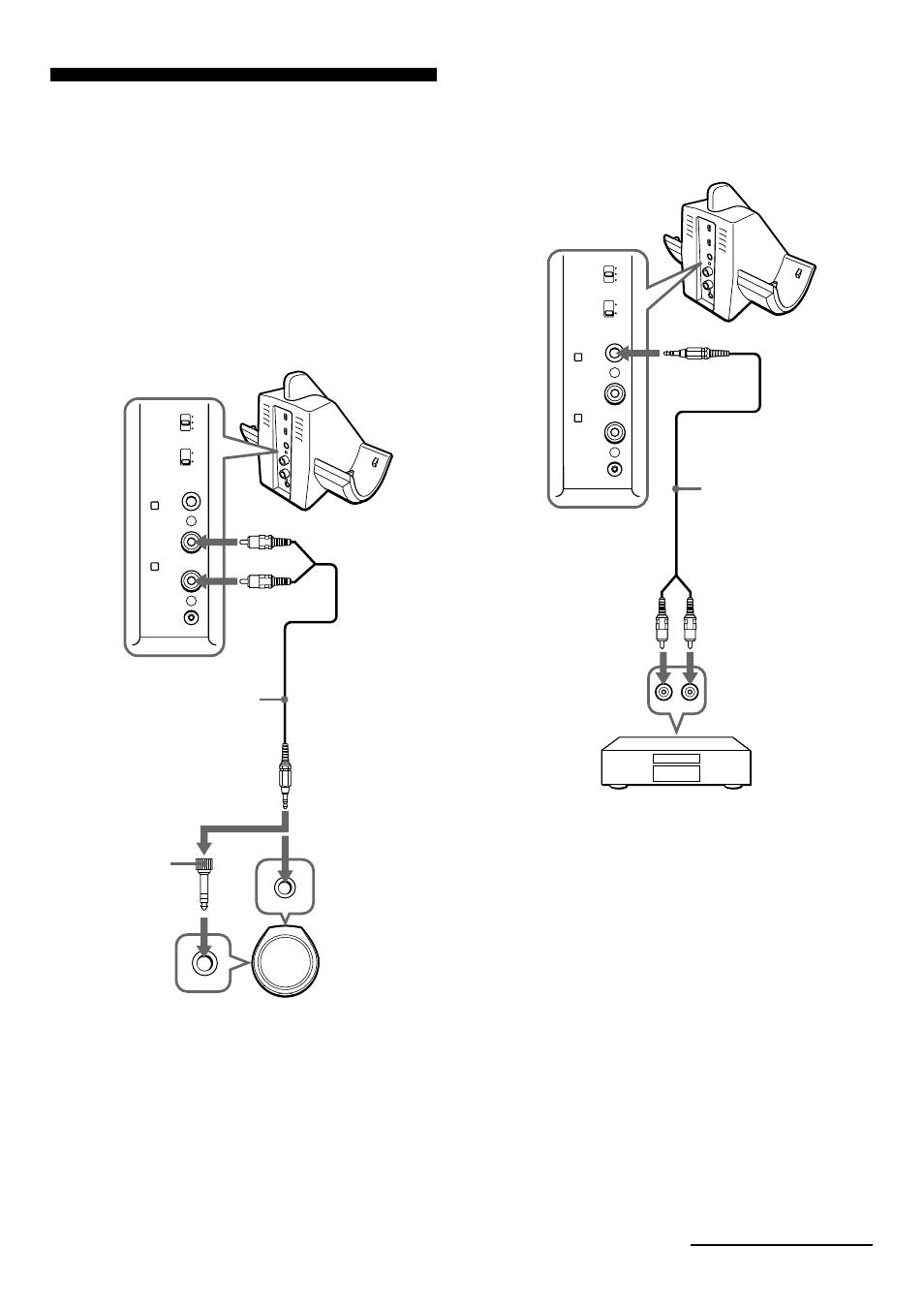

Setting up the
transmitter
1
Connect the transmitter to audio/
video equipment.
Select one of the hookups below
depending on the jack type:
A To connect to a headphones jack
* WALKMAN is a registered trademark of Sony
Corporation to represent Headphone Stereo
products.
Transmitter
WALKMAN*,
TV, VCR, etc.
to INPUT B
jacks
Unimatch plug
adaptor
(supplied)
to headphones
jack (stereo
phone jack)
Connecting cord
(supplied)
to headphones
jack (stereo
mini jack)
Left channel
(white)
Right channel
(red)
INPUT
A
INPUT
DC IN 9V
!
L
R
B
NOISE FILTER
ON
OFF
CHANNEL
1
2
3
B To connect to LINE OUT or REC OUT
jacks
Transmitter
to INPUT A
jack
Stereo system, VCR,
etc.
Left channel
(white)
Connecting cord
(supplied)
Right channel
(red)
to LINE OUT or REC
OUT jacks
continue to next page
