Installation

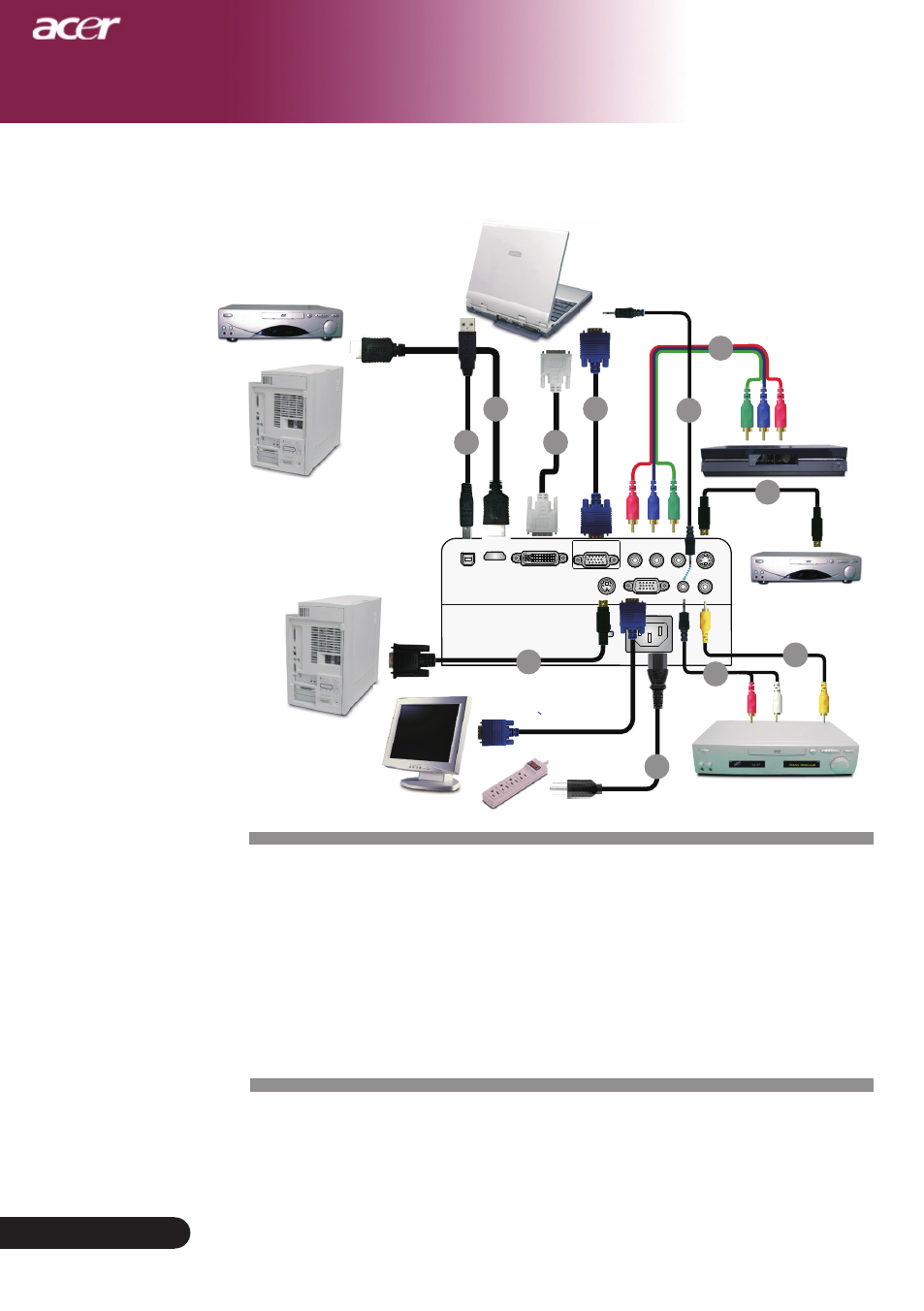

Connecting the Projector
USB HDMI DVI VGA-IN Pr/Cr Pb/Cb Y S-VIDEO
VIDEO AUDIO-IN VGA-OUT RS-232
 To ensure the projector works well with your computer, please
make sure the timing of the display mode is compatible with the
projector. Refer to the “Compatibility Modes” section on page 39.
Video Output
DVD Player,
Settop Box,
HDTV receiver
4
2
3
6
DVI
VGA USB
10
S-Video Output
9
1
RS232
7
5
11
DVD Player
8
PC
1.....................................................................................................................Power Cord
2......................................................................................................................VGA Cable
3................................................................................................ Composite Video Cable
4....................................................................................................................... USB Cable
5............................................................................................. 3 RCA Component Cable
6.................................................................................................................S-Video Cable
7...........................................................Audio Cable Jack/RCA(Optional Accessory)
8..............................................................................RS232 Cable (Optional Accessory)
9........................................................................................................................DVI Cable
10........................................................................... HDMI Cable (Optional Accessory)
11................................................................................................Audio Cable Jack/Jack
