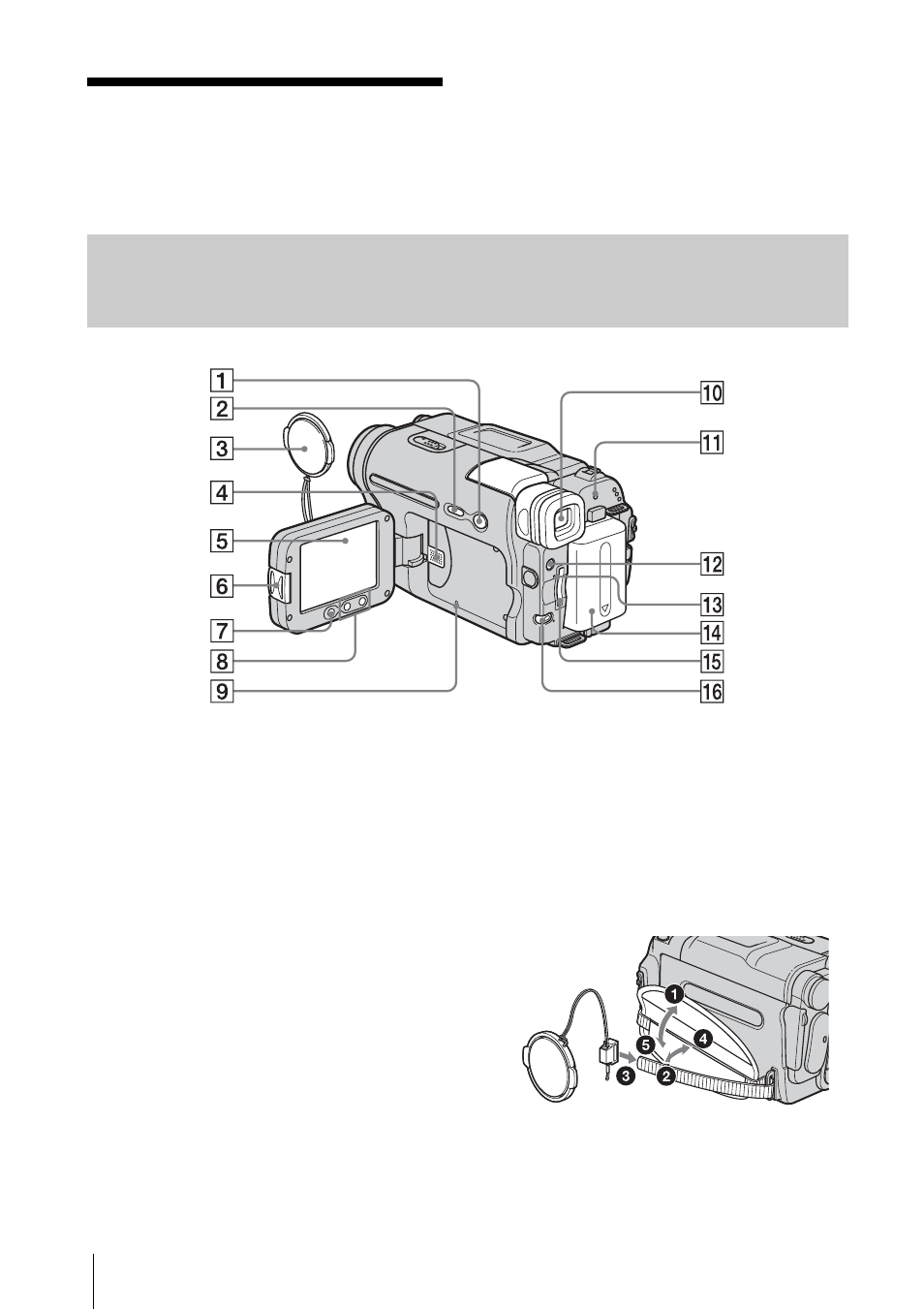

Identifying parts and
controls

Camcorder

A EASY button (p. 14, 35, 54)
B DISPLAY/BATT INFO button (p. 17)
C Lens cap (p. 26, 32)
D Speaker
E LCD/Touch panel screen (p. 3, 20)
F OPEN button (p. 20)
G REC START/STOP button on LCD

frame (p. 26)

H Zoom buttons on LCD frame (p. 29)
I RESET button

If you press RESET, all the settings
including the date and time, except the
Personal Menu items, return to the default.

J Viewfinder (p. 3, 20)
K CHG (charge) lamp (p. 16)
L LIGHT button (p. 29)
M Access lamp (p. 23, 138)

N Battery pack (p. 16)
O “Memory Stick” slot (p. 23)
P BACK LIGHT button (p. 37)

The BACK LIGHT button is not available
during Easy Handycam operation.
(z mark on the camcorder)

To attach the lens cap
