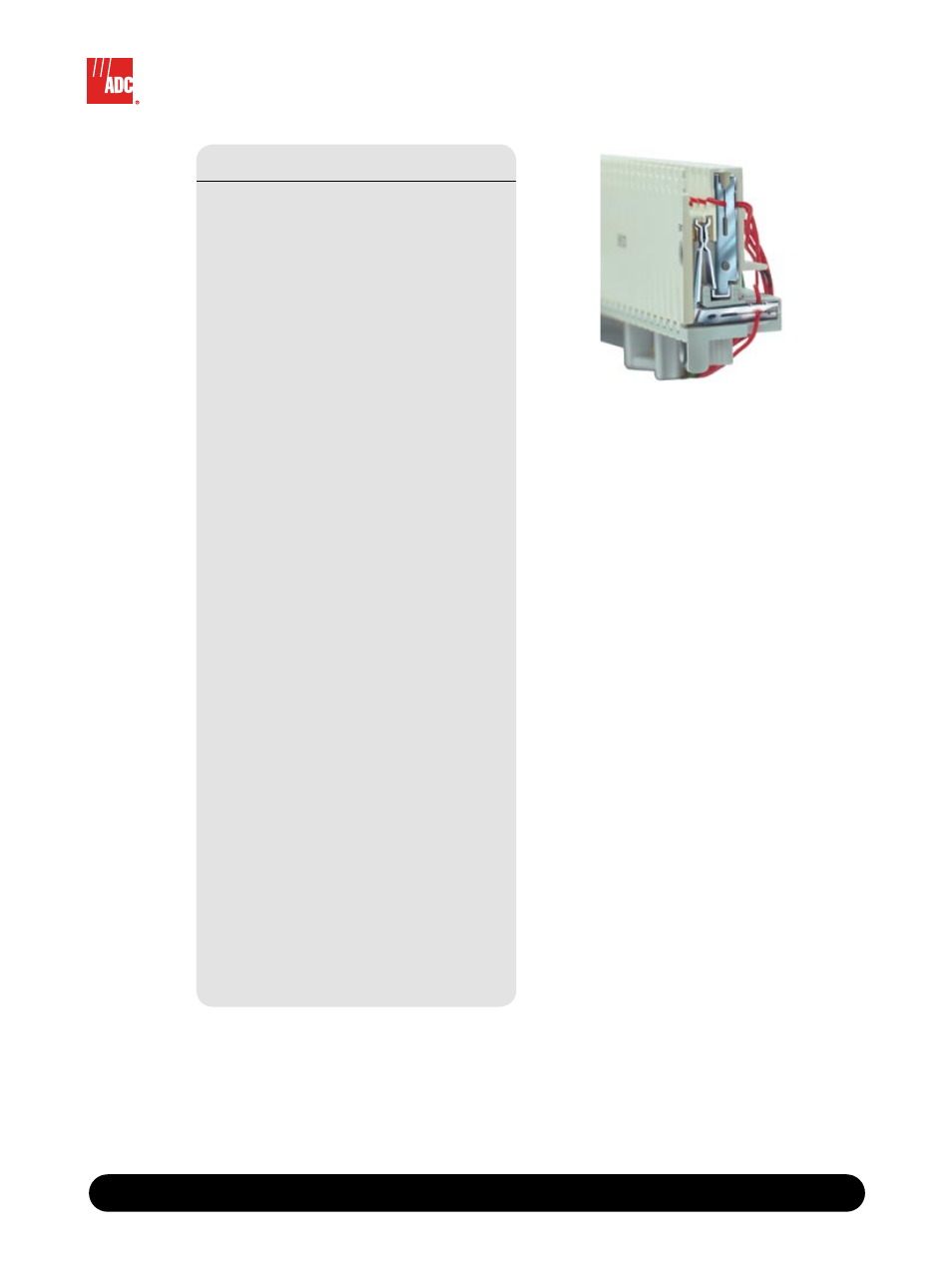

LSA-PLUS
®
NT Termination Block
(IDC Orientation)
Features & Benefits
•
Utilizes proven reliability of the LSA-PLUS
®
45º silver plated contacts
•
Unique perpendicular configuration facilitates
quick and reliable installations
•
Vertical mounting pitch of 17.5 mm results in
21% space savings over Series 2 blocks
•
System side contacts situated at a right angle
on the bottom of the block protect cable
wiring and prevent accidental tampering
during cross–connect work
•
Clear labeling system eliminates wiring
mistakes
•
Built in “look-both-ways” test port
•
Designed for use with ADC back mount
frame; other versions are available for use
with ADC profile rod mount brackets
•
Various identification and marking
possibilities: marking caps used to mark
individual pairs, identify special lines or
protect a given line from being mistakenly
switched
•
Switchover adapters allow interrupt-
free switchover to a new system, active
equipment or connection of new cables
•
One-pair “look-both-ways” test cord with
banana plugs allows for independent testing
of incoming and outgoing signals; no need
for wire removal
•
LSA PLUS insertion tool manages all wire
terminations; no need for additional tools
•
Wall and rack mountable
•
Can be mounted on 19- or 23-inch frames
Applications
• Well suited for applications requiring a
bandwidth greater than POTS
• Offers superior high-speed connections for
voice and data in backbone cabling
• Ideal for next generation broadband
networks that need to support voice, video
and data transmission (IPTV, ADSL2+, VDSL2,
etc)
