Sony DCR-IP7BT - Manual (Page 189)

189
Quick Reference

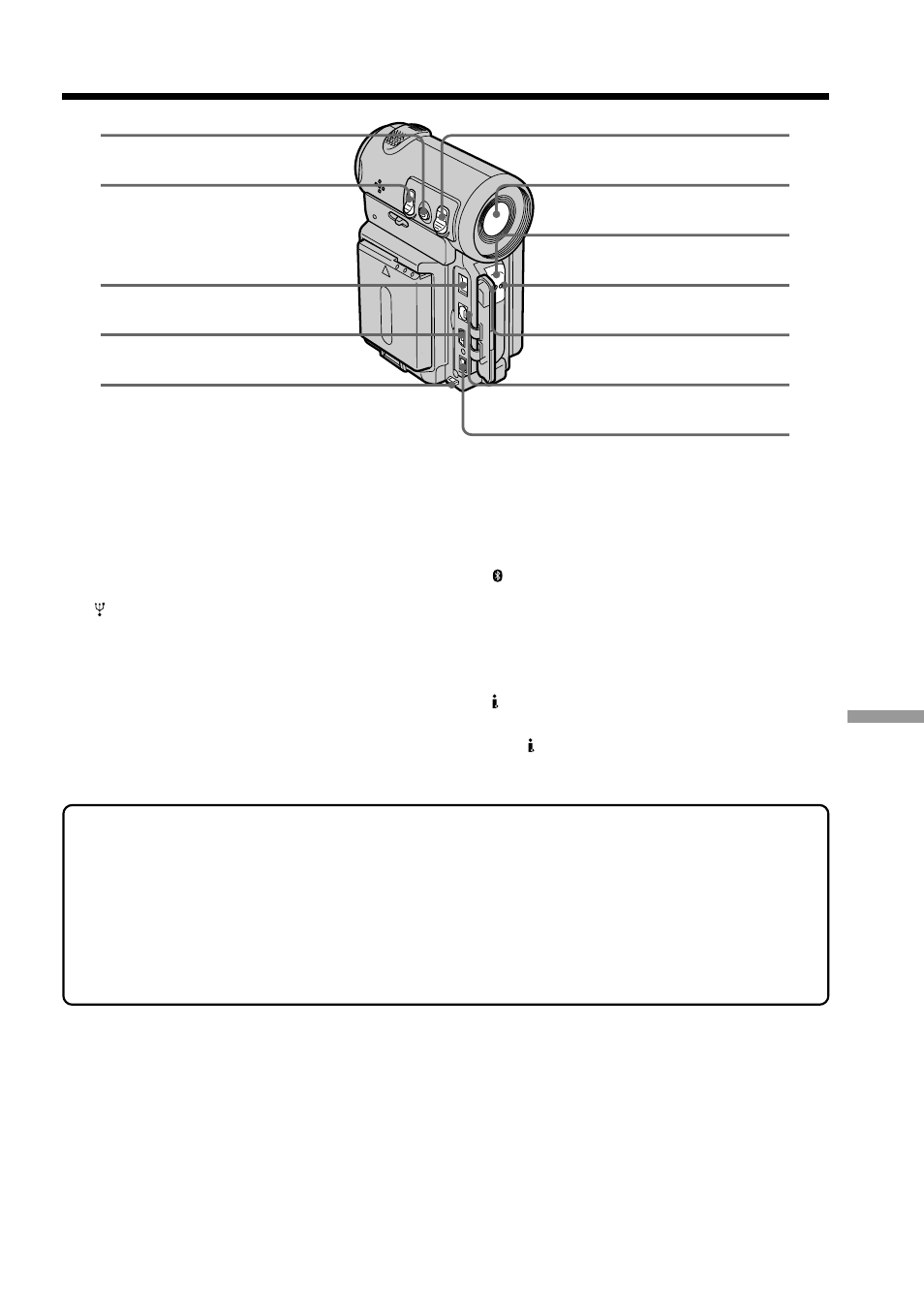

Identifying the parts and controls
w; ZOOM button (p. 34)
wa PHOTO button (p. 47, 118)
ws DC IN jack (p. 19)
wd USB jack (p. 157)
(DCR-IP7BT only)
wf Hook for wrist strap
wg START/STOP button (p. 29)
wh Lens
wj Camera recording lamp (p. 29)
wk (Bluetooth) lamp (p. 162)
(DCR-IP7BT only)
wl Remote sensor
e; A/V (ID-2) jack (p. 45, 81, 85, 124, 130)
ea i.LINK (MICROMV) jack
(p. 82, 87, 125, 130)
The i.LINK (MICROMV) jack is i.LINK
compatible.
Note on the Carl Zeiss lens
Your camcorder is equipped with a Carl Zeiss lens which can reproduce a fine image.
The lens for your camcorder was developed jointly by Carl Zeiss, in Germany, and Sony
Corporation. It adopts the MTF* measurement system for video cameras and offers a quality as
the Carl Zeiss lens.
* MTF is an abbreviation of Modulation Transfer Function.
The value number indicates the amount of light of a subject penetrating into the lens.
w;
wa
ws
wd
wf
wg
wh
wj
wk
wl
e;
ea
