130
: Signal flow
(supplied)
S VIDEO
VIDEO
OUT
: Signal flow
A/V

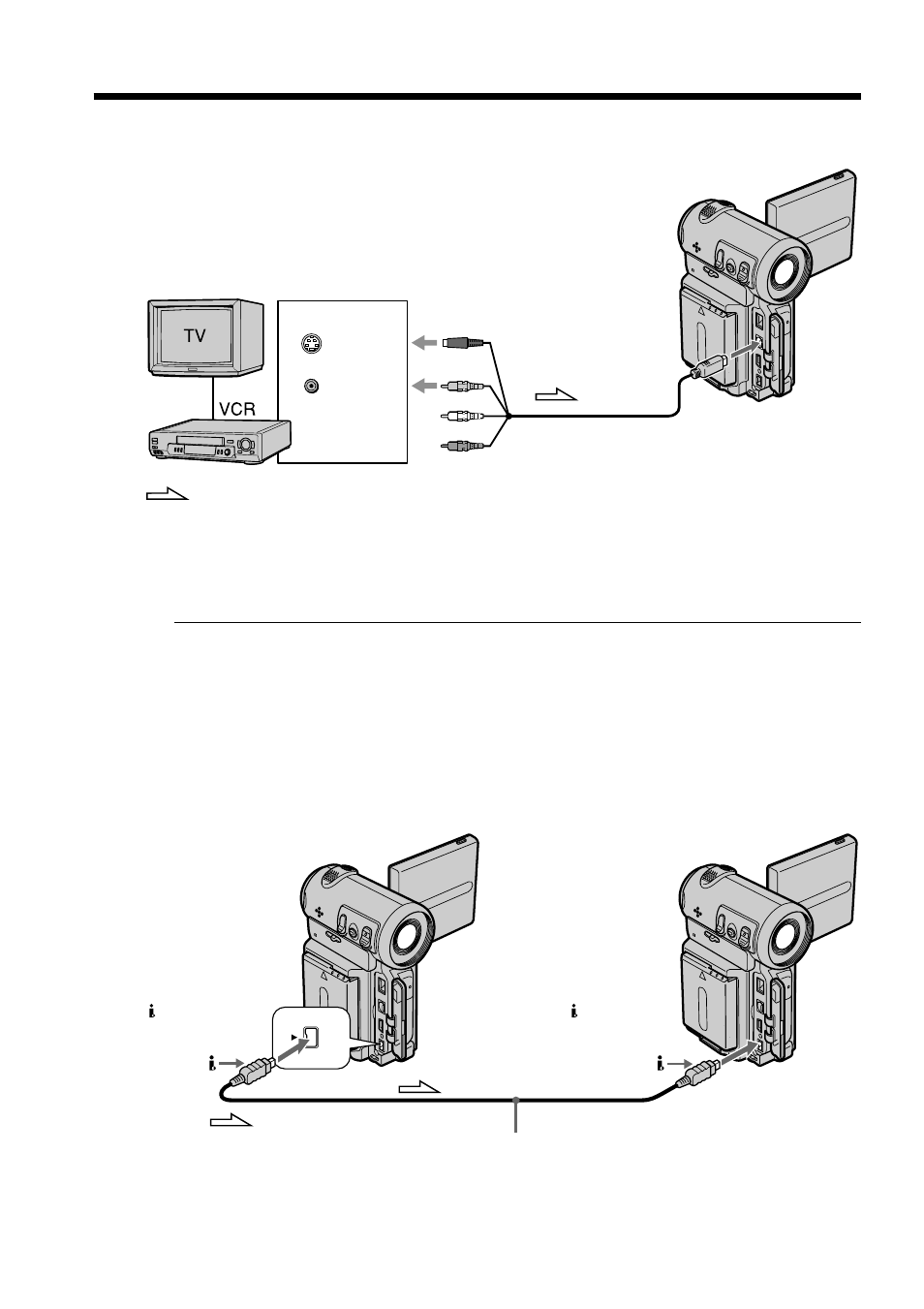

Using the A/V connecting cable
Connect the yellow or black plug of the A/V connecting cable to the video or S video
jack or the black plug to the S video jack on the VCR.
If your VCR has an S video jack
Connect using the S video plug to faithfully obtain original pictures. With this
connection, you do not need to connect the yellow (video) plug of the A/V connecting
cable. Connect the S video plug to the S video jack of the VCR. This connection
produces higher quality MICROMV format pictures.
Using the i.LINK cable
Recording a picture from a tape as a moving picture
i.LINK
(MICROMV)
i.LINK
(MICROMV)
