Active Speaker System
SRS-A3
4-198-854-51(1) English
Before operating the system, please
read this manual thoroughly and retain
it for future reference.
WARNING
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical shock,
do not open the cabinet.
Refer servicing to qualified personnel
only.
To reduce the risk of fire, do not cover
the ventilation opening of the
apparatus with newspapers,
tablecloths, curtains, etc.
Do not place the naked flame sources
such as lighted candles on the
apparatus.
To reduce the risk of fire or electric
shock, do not expose this apparatus to
dripping or splashing, and do not place
objects filled with liquids, such as
vases, on the apparatus.
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
As the main plug of AC power adaptor
is used to disconnect the AC power
adaptor from the mains, connect it to
an easily accessible AC outlet.
Should you notice an abnormality in it,
disconnect it from the AC outlet
immediately.
The system is not disconnected from
the mains as long as it is connected to
the AC outlet, even if the system itself
has been turned off.
Note
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
– Reorient or relocate the receiving
antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
CAUTION
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
This Class B digital apparatus complies
with Canadian ICES-003.
Precautions
On safety
The nameplate is located on the
bottom exterior of the left speaker.
 Before operating the system, be sure
that the operating voltage of the
system is identical to that of your
local power supply.
Where purchased Operating voltage
All countries/regions 100 V – 240 V AC,
50/60 Hz
 Use only the supplied AC power
adaptor.
On operation
 Should any solid object or liquid fall
into the system, have the system
checked by qualified personnel
before operating it any further.
 Although this system is magnetically
shielded, do not leave recorded
tapes, watches, personal credit cards,
or floppy disks with magnetic
coding in front of the system for an
extended period of time.
On placement
 Do not set the system in an inclined
position.
 Do not leave the system in a location
near heat sources, or in a place
subject to direct sunlight, excessive
dust, moisture, rain or mechanical
shock.
On cleaning
Do not use alcohol, benzine or thinner
to clean the cabinet.
If the TV picture or monitor
display is magnetically
distorted
Although this system is magnetically
shielded, there may be cases that the
picture on some TV sets/personal
computers may become magnetically
distorted. In such a case, turn off the
power of the TV set/personal
computer once, and after 15 to 30
minutes turn it on again. In the case of
a personal computer, take appropriate
measures such as data storage before
turning off.
If no improvement is apparent, locate
the system farther away from the TV
set/personal computer. Furthermore,
be sure not to place objects in which
magnets are attached or used, such as
audio racks, TV stands, toys, etc., near
the TV set/personal computer. These
may cause magnetic distortion to the
picture due to magnetic interaction.
If you have any questions or problems
concerning this system that are not
covered in this manual, please consult
your nearest Sony dealer.

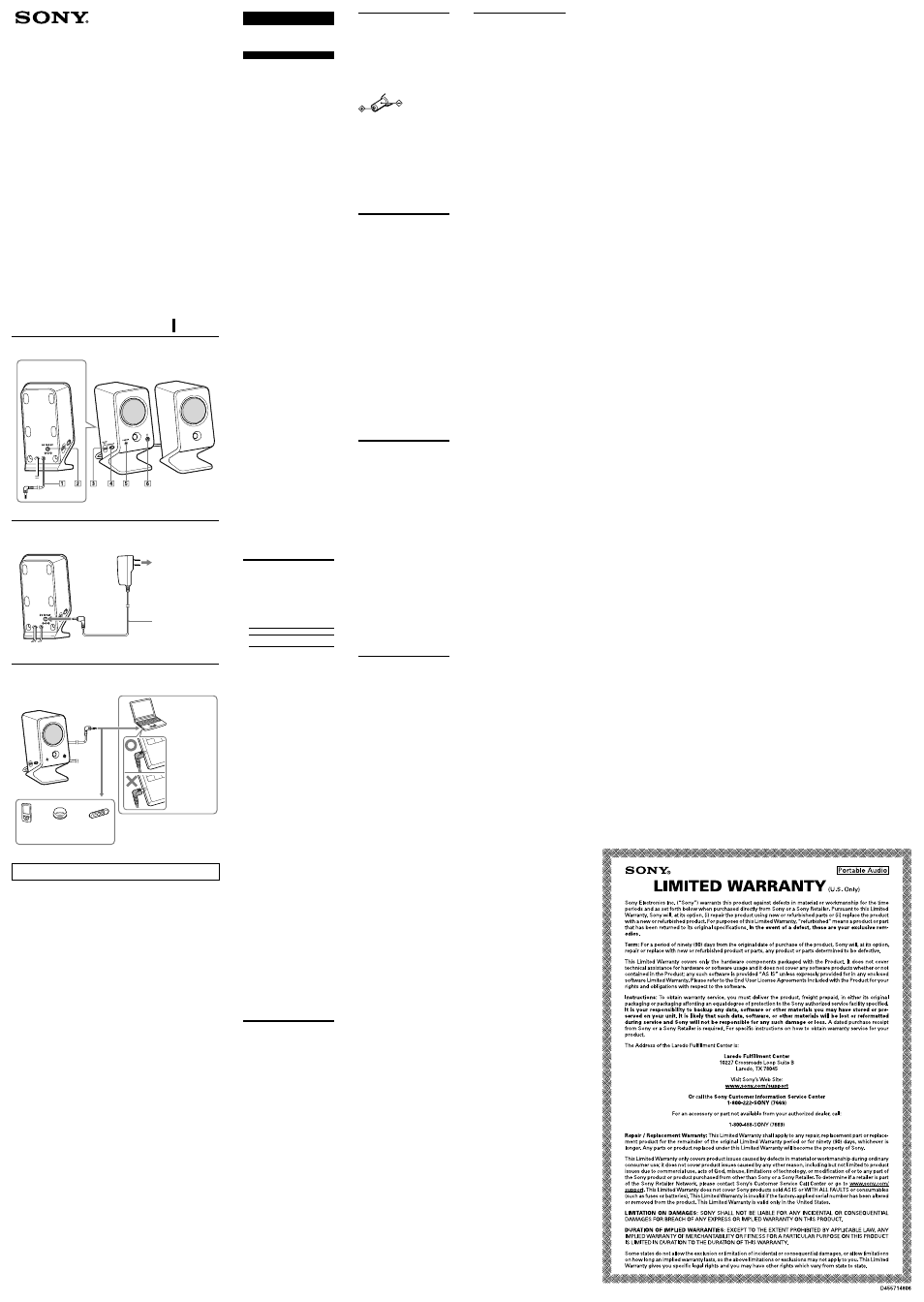

Identifying parts
(See fig. )
 Input (input) cable
Connecting cord with stereo mini
plug
 DC IN 5.2V jack
 VOLUME (volume) control
 POWER (power) switch
 POWER (power) indicator
  (headphones) jack
Power Sources
(See fig. )
Connect the AC power adaptor
to the DC IN 5.2V jack.
Notes on the AC power adaptor
 Use only the supplied AC power
adaptor. To avoid damaging the
system do not use any other AC
power adaptor.
Polarity of the plug
 Plug the AC power adaptor into a
nearby AC output. In the case of a
problem, unplug from the AC outlet
immediately.
 Do not place the AC power adaptor
on a bookshelf or in a confined
place, such as a cabinet.
 To avoid fire or electric shock do not
use the AC power adaptor in a place
subject to liquid or moisture.
Furthermore, do not place liquid-
filled vessels, such as vases, etc., on
the AC power adaptor.
Hooking up the
system (See fig. )
Connect the system to a source
device.
When the system is connected
to the monaural jack of a
source device
The sound may not come through the
right speaker.
Notes
 If the PC volume adjustment (master
volume, WAV volume, etc.) is low, sound
may be insufficient. If so, turn up the
sound of the PC. For details on volume
adjustment on your PC, refer to its
operating instructions.
 Make sure the connection of the stereo
mini plug and the jack of the source device
is made properly.
 If connecting the system via a device with
a built-in radio or tuner, radio broadcasts
or TV sound may not be received, or
sensitivity may be reduced significantly.
 If you remove the input cable while the
source device (PC, etc) is working, the
equipment or your ears may be damaged
by unexpected loud sound. Be sure to
lower the volume of the source device (PC,
etc) and turn off the system when
removing the input cable from the source
device.
Listening to the
sound
First, turn down the volume on this
system. When connecting the system
to the headphones output, turn down
the volume of the source device.
1 Set the POWER switch to ON.
The POWER indicator lights up.
2 Start playback of the source
device.
3 Adjust the volume.
Set the volume of the source device
to a moderate level, and then turn
up the VOLUME control on this
system.
4 Set the POWER switch to OFF
after use.
The POWER indicator goes off.
To use the headphones/
earphones
Connect them to the  jack.
Note
If the source device has a bass boost function
or equalizer function, set to off. If these
functions are on, sound may be distorted.
Troubleshooting
Should you experience any problems
with your speaker system, check the
following list and take the suggested
measures. If the problem persists,
consult your nearest Sony dealer.
No sound
 Check that both this system and the
source device are turned on.
 Turn up the volume of the system.
 Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
 Make sure all connections have been
correctly made.
 If the mute function of the volume
adjustment of your PC is set, cancel
it.
 Check if headphones are connected.
If they are, disconnect them.
 Disconnect the connecting cord
with stereo mini plug from the
system and the PC or source device;
then, firmly reconnect the
connecting cord to the system and
the headphone jack (stereo mini
jack) of the PC or source device.
Low sound level
 Turn up the volume of the source
device as high as possible before the
onset of distortion. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
 Turn up the volume of the system.
 Ensure that your PC sound balance
is set to the center.
 Disconnect the connecting cord
with stereo mini plug from the
system and the PC or source device;
then, firmly reconnect the
connecting cord to the system and
the headphone jack (stereo mini
jack) of the PC or source device.
Distorted sound
 Turn down the volume of the source
device to the point where the sound
is no longer distorted. For details on
volume adjustment, refer to the
operating instructions supplied with
the device.
 If the source device has a bass boost
function, set it to off.
 Turn down the volume of the
system.
There is hum or noise in the
system output.
 Make sure all connections have been
correctly made.
 Make sure no audio devices are
positioned too close to the TV set.
The brightness of the POWER
indicator is unstable.
The brightness of the POWER
indicator may become unstable when
the volume is turned up.
The sound comes through only
one speaker.
If connecting the system to the
monaural jack of a source device, the
sound may come through only one
speaker.
Specifications
Speaker section
Speaker system
46 mm (1 13 / 16 in) Full range,
magnetically shielded
Enclosure type
Bass reflex
Impedance
3.2 Ω
Amplifier section
Reference output power
2.5 W + 2.5 W (10 % T.H.D.,
1 kHz, 3.2 Ω)
Input Connecting cord with stereo
mini plug (approx. 1 m,
39 3 / 8 in) × 1
Input impedance
8 kΩ (at 1 kHz)
Output Stereo mini jack × 1
(PHONES)
General
Power DC 5.2 V (supplied AC
power adaptor)
Dimensions (w/h/d)
Approx. 85 Ч 172 Ч 119 mm
(3 3 / 8 Ч 6 7 / 8 Ч 4 3 / 4 in)
Mass Left speaker:
Approx. 330 g (12 oz)
Right speaker:
Approx. 310 g (11 oz)
Supplied accessories
AC power adaptor
(AC-E5212) (1)
Operating Instructions (1)
Design and specifications are subject
to change without notice.
Operating Instructions
Mode d’emploi
Manual de instrucciones
©2010 Sony Corporation Printed in China



Left speaker (rear) Left speaker (front) Right speaker (front)
AC power adaptor (supplied)
to wall outlet
to DC IN 5.2V jack
Left speaker (rear)
to headphones jack
(stereo mini jack)
Left speaker (front)
PC, etc.
Portable audio device, etc.
If connecting the system via a device with a built-in radio or tuner, radio broadcasts or
TV sound may not be received, or sensitivity may be reduced significantly.
Correct
Incorrect
