VGN-NW Series Optical Disk Drive
Replacement Instructions
P/N 989200136 Rev. B 2/3

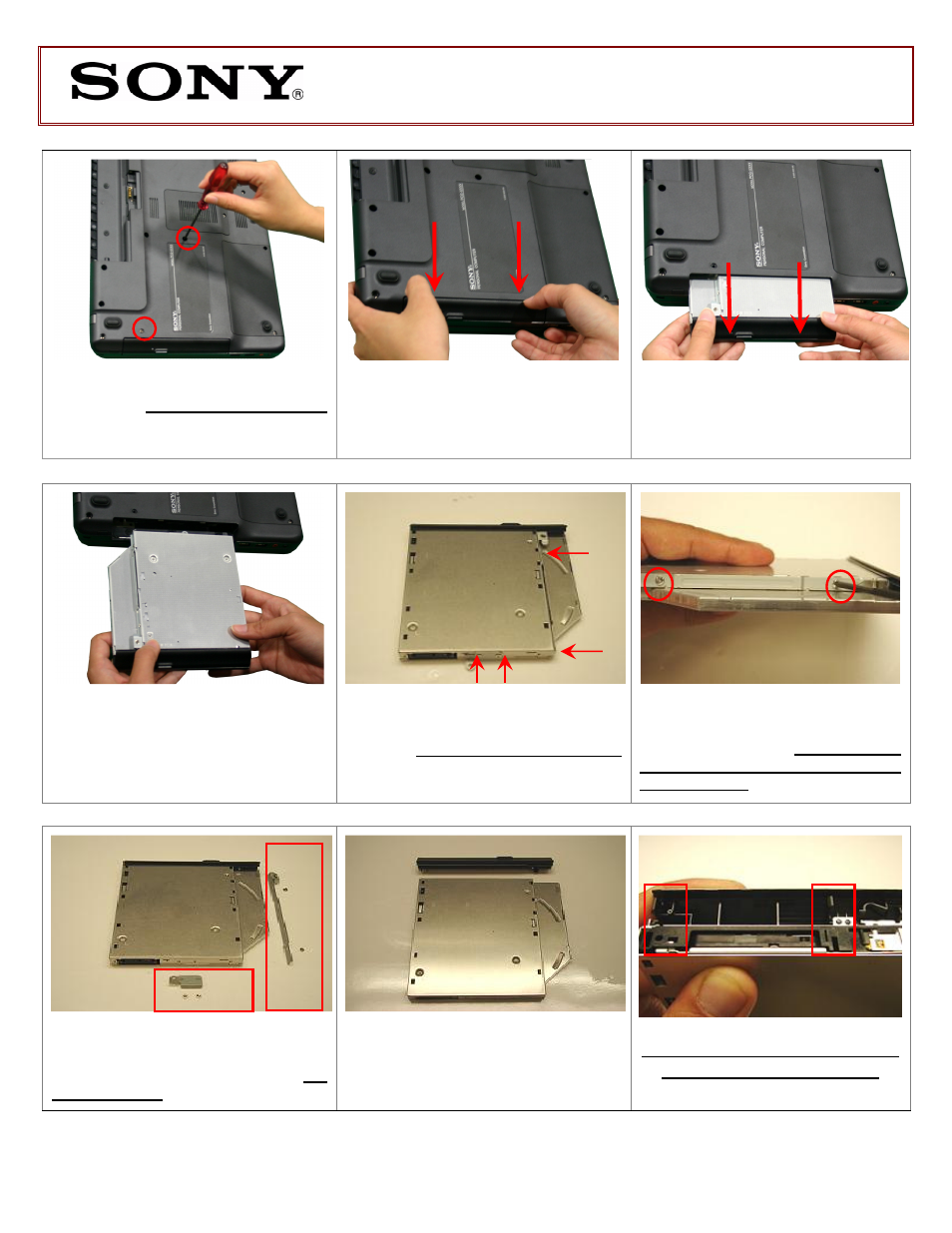

Step 4. Using the enclosed magnetic
screwdriver, remove the (2) screws
securing the ODD Bay. Step 5. To initiate the removal of the ODD,
pull the ODD in the direction shown in the
above picture.
Step 6. With even force, slide out the
ODD as shown.
Some force may be
required to unlock the ODD from the
connector.
Step 7. Carefully remove the ODD
assembly.
Step 8. After the ODD is completely
removed, identify the (4) side screws
that mount the ODD brackets to the
ODD.
Step 9. Firmly but carefully hold the
ODD. Remove the screws & brackets
and set them aside. The screws &
brackets will be used on the new
ODD provided.
Note! Identify tabs on the bezel and
tab holes located on the ODD.
Step 10. All brackets & screws should
now be removed. Please arrange the
brackets & screws as shown above. Set
old ODD aside.
Step 11. Take the new ODD and bezel
provided in the CRU kit and prepare for
assembly.
(ODD Disassembly) Steps 8-10
R
B
(ODD assembly) Steps 11-14
