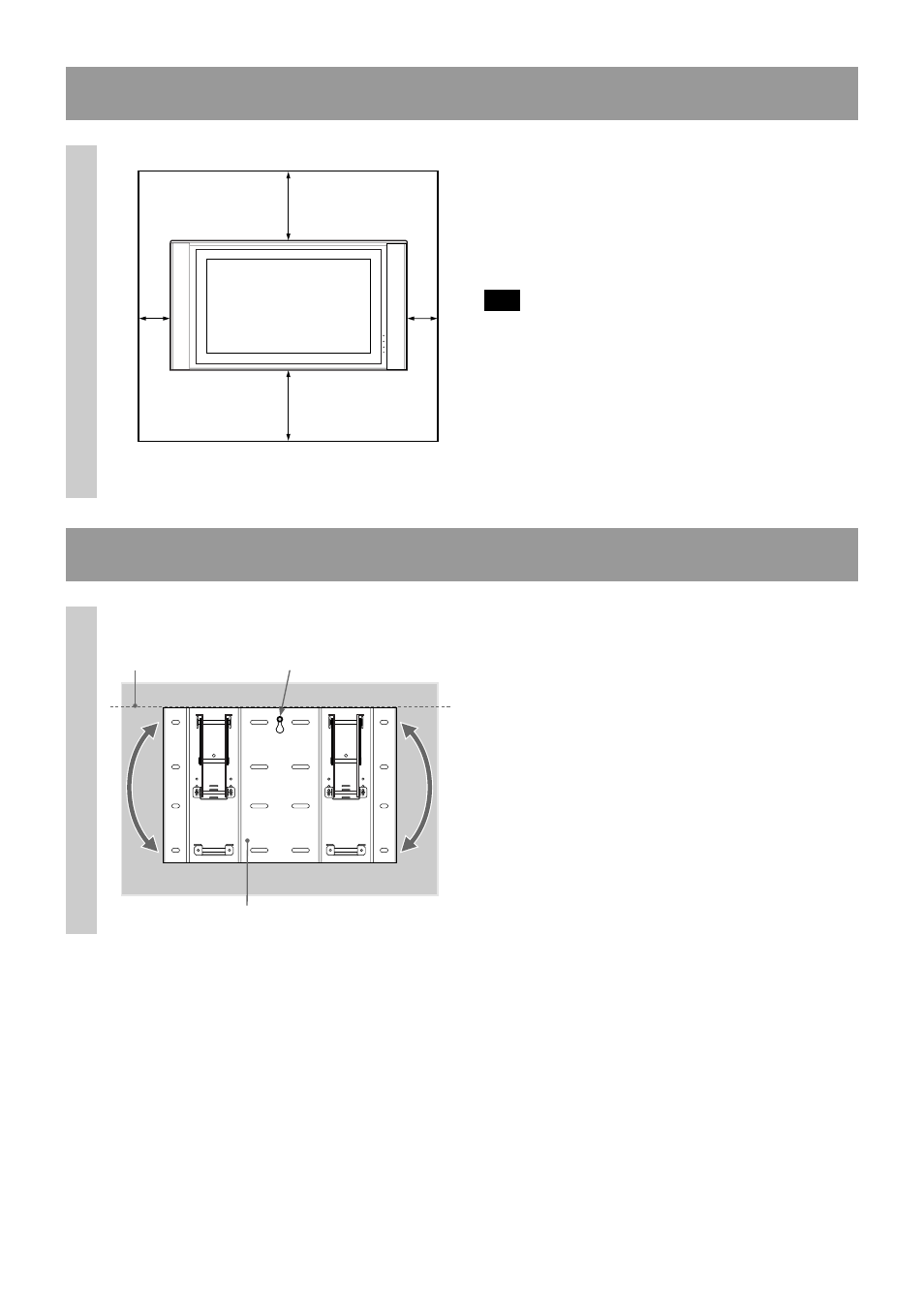

Step 2: Decide on the installation location
1
Step 3: Install the Plate Unit on the wall
1
Unit: mm (inches) Be sure to keep the distance
between the Plate Unit and the
ceiling or the protruding parts of
the wall as shown in the diagram on
the left.
Tip
See the cross section diagram in “ Specifications ” (p.15
(US)) for details on dimensions when the Display Unit
is installed on the wall.
300
(11
13
⁄ 16
)
100 (3
15
⁄ 16
)
100
(3 15 ⁄
16
)
100
(3 15 ⁄
16
)
Screw hole to be used for
temporarily attaching the
bracket.
Align the unit so that
it is exactly level.
Plate Unit
Screw the Plate Unit to the wall
temporarily and align the position
of the Plate Unit so that it is exactly
level.
WARNING
• The screws securing the Wall-Mount Bracket to the
wall are not supplied.
• Be sure to use the appropriate screws, depending
on the material and structure of the wall.
