Location of Parts and Basic Operations
1 2 3
4
5
6
7
8
Location of
Parts and Basic
Operations
This chapter provides information
about the locations and functions of
the buttons and controls on this unit.
However, some functions in this
section may not operate depending on
the receiver.

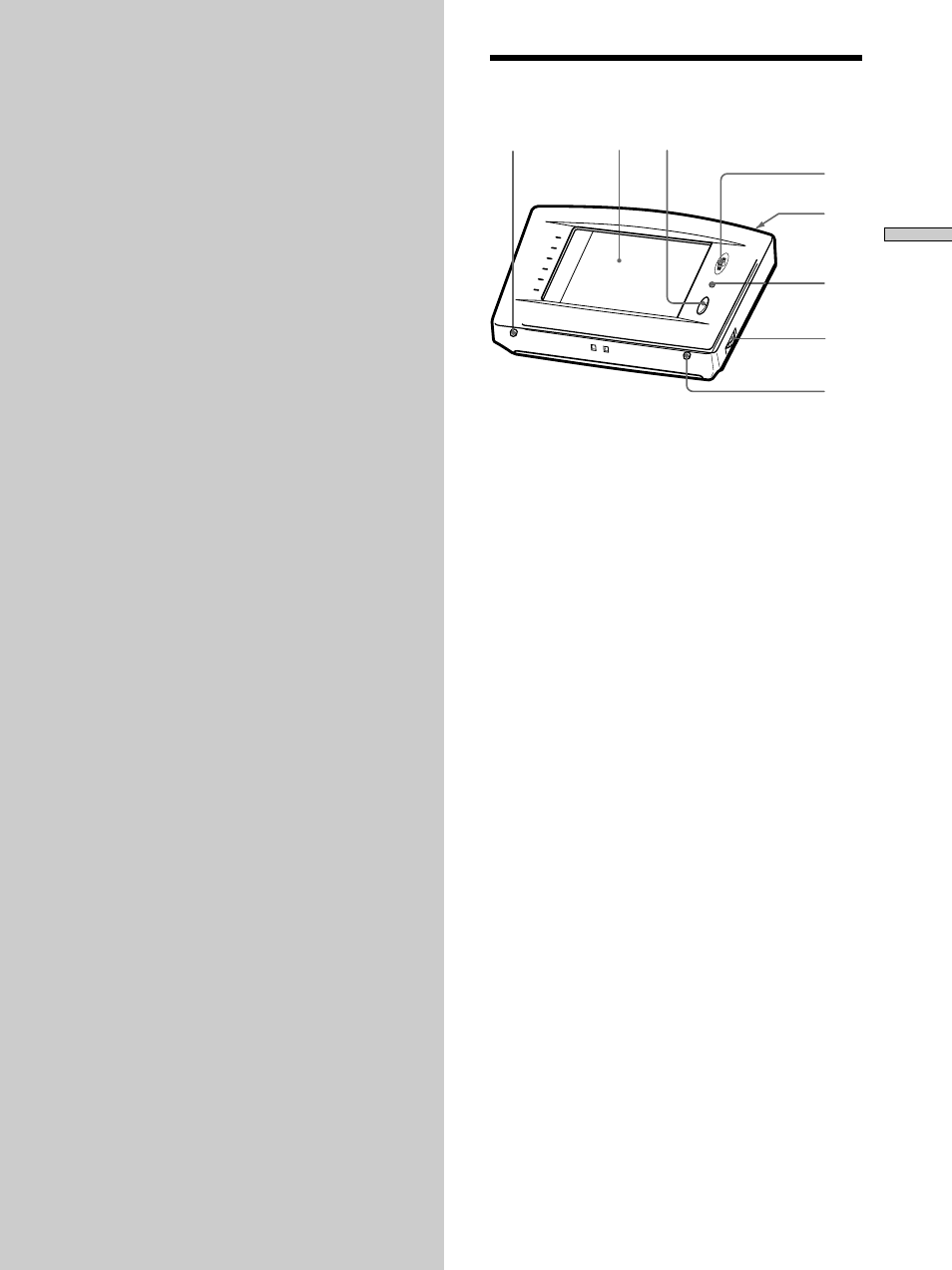

Front panel
1 BACK LIGHT/COMMANDER OFF
Press to turn the backlight on or off. Hold down for
about 2 seconds to turn the LCD off. When the LCD is
off, press to turn on the LCD and backlight.
• To prolong use of the batteries, the LCD automatically
turns off if there are no commands entered in the touch
panel for 10 seconds.
• To view the LCD display without turning on the backlight,
touch the touch panel when both the backlight and LCD
are off.
2 Touch panel
Touch to operate. The commander turns on
automatically.
3 VOL +/– buttons
Use to adjust the volume of the receiver.
4 JOG DIAL control
Rotate to scroll through items in a list (etc.).
Push to select the highlighted item.
5 ?/1/SYSTEM STANDBY button
Normally used to turn the receiver on or off. Can also
be used to turn off all Sony components (SYSTEM
STANDBY) when this button is set to SYSTEM
STANDBY in the SETUP screen (see page 29).
Regardless of the setting, when pressed for more than
3 seconds, the SYSTEM STANDBY code is transmitted
only once.
6 MUTING button
Use to mute the sound of the receiver.
7 CONTRAST control
Use to adjust the contrast of the LCD.
8 SLEEP button
Use to operate the receiver’s sleep function. The sleep
settings appear in the receiver’s display, not the
commander’s LCD.
